Cruise Control

U1000 CAN COMM CIRCUIT

Description
- CAN communication is a multiplex communication system. This enables it to transmit and receive many communication signals at high speed by connecting control units with two communication lines (CAN-H and CAN-L).
- Control units on the CAN network transmit signals with CAN communication control circuit in the control unit and receive only necessary signals from other control units for various controls.
- CAN communication lines adopt twisted-pair line style (two lines twisted) for noise immunity.

DTC Logic

DTC DETECTION LOGIC

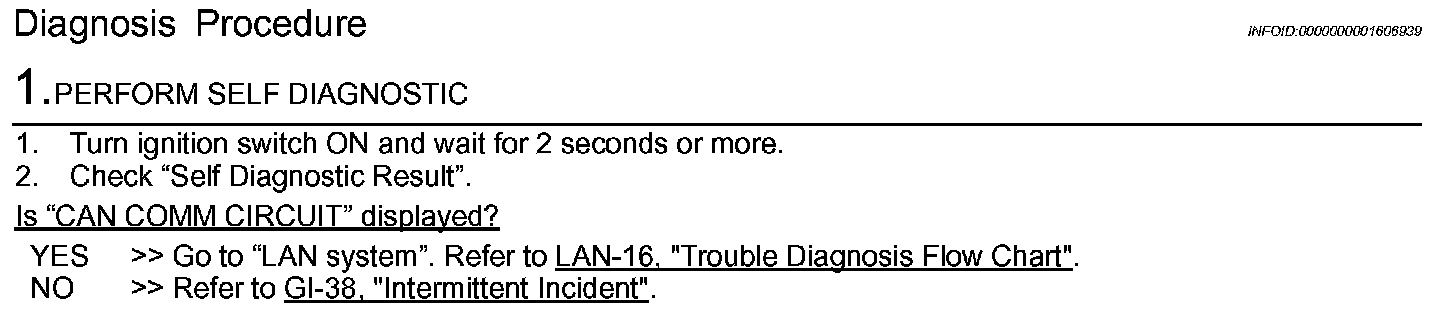

Diagnosis Procedure

Step 1:
