With Mobile Entertainment System

BOSE AMP.

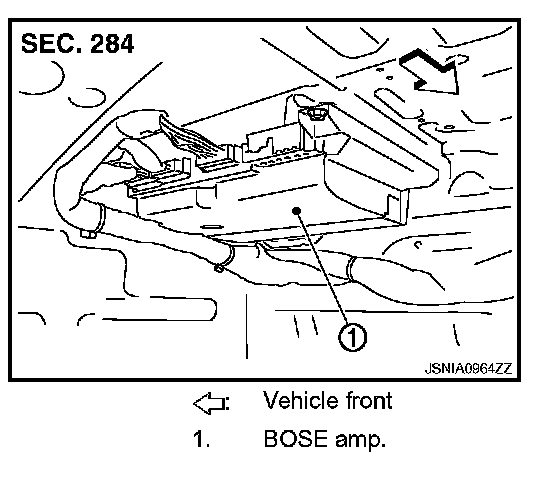

Exploded View

Removal and Installation

REMOVAL
1. Remove trunk front finisher.

2. Remove screws (A), and disconnect connector.
3. Remove BOSE amp. (1).

INSTALLATION
Install in the reverse order of removal.
