Bose Audio 2CH System

AUDIOPILOT(R) MICROPHONE

BOSE AUDIO 2CH SYSTEM

BOSE AUDIO 2CH SYSTEM : Description
The microphone transmits the microphone signal to the BOSE amp.

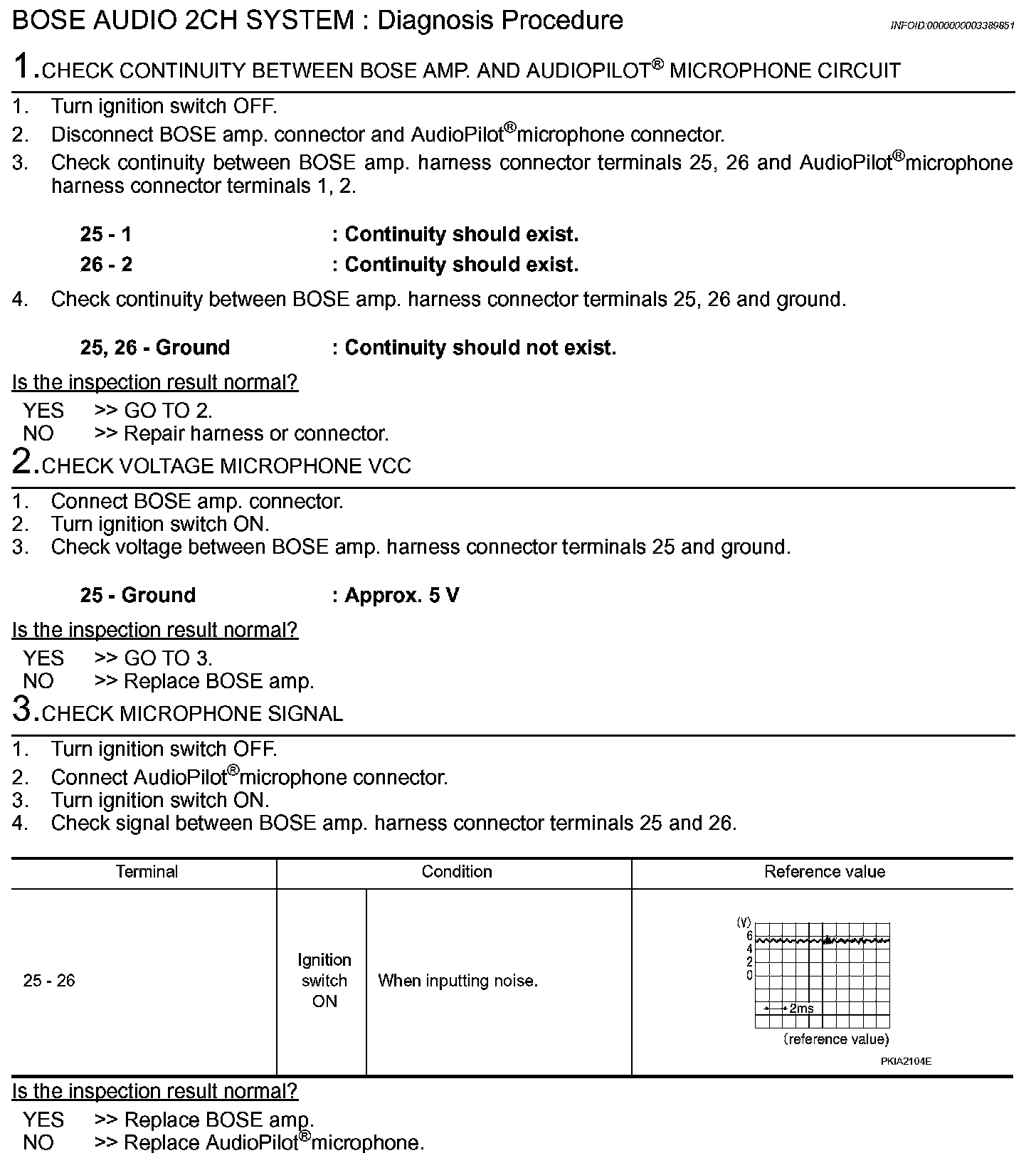

BOSE AUDIO 2CH SYSTEM : Diagnosis Procedure

Step 1-3:
