Home >> Infiniti >> 2008 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Component Tests and General Diagnostics >> Without Mobile Entertainment System >> RGB Area (YS) Signal Circuit (AV Control Unit to Front Display Unit) >> With Navigation

With Navigation

WITH NAVIGATION

WITH NAVIGATION : Description
Transmits the front display area of RGB image displayed by AV control unit with RGB area (YS) signal to front display unit.

WITH NAVIGATION : Diagnosis Procedure

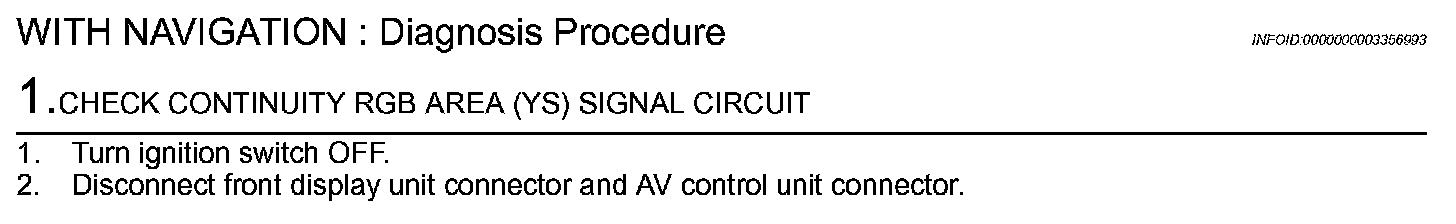

Step 1:

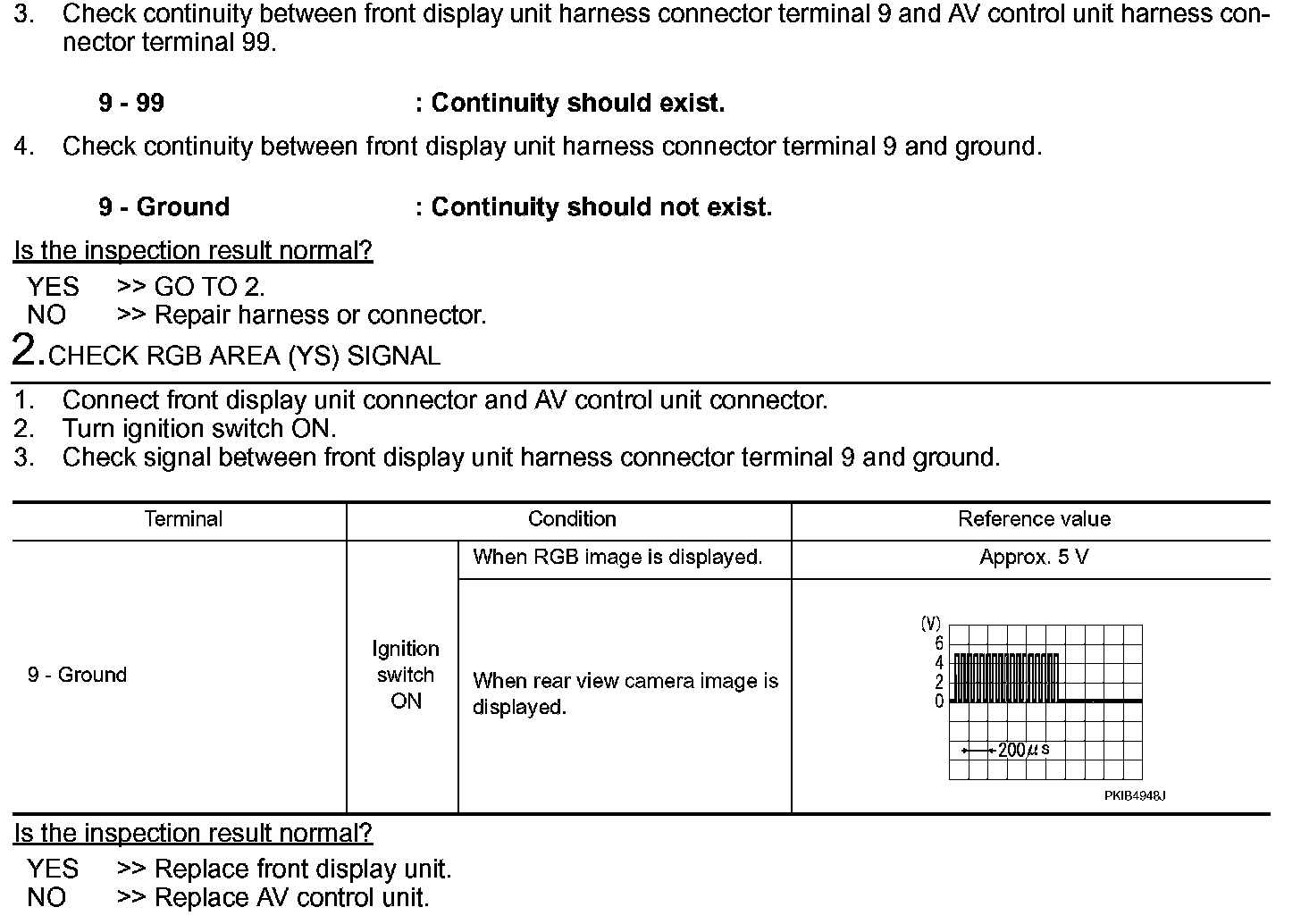

Step 1 (Continued)-2:
