Without Navigation
STEERING SWITCH SIGNAL B CIRCUITWITHOUT NAVIGATION
WITHOUT NAVIGATION : Description
Transmits the steering switch signal to AV control unit.
WITHOUT NAVIGATION : Diagnosis Procedure
Step 1-4:
WITHOUT NAVIGATION : Component Inspection

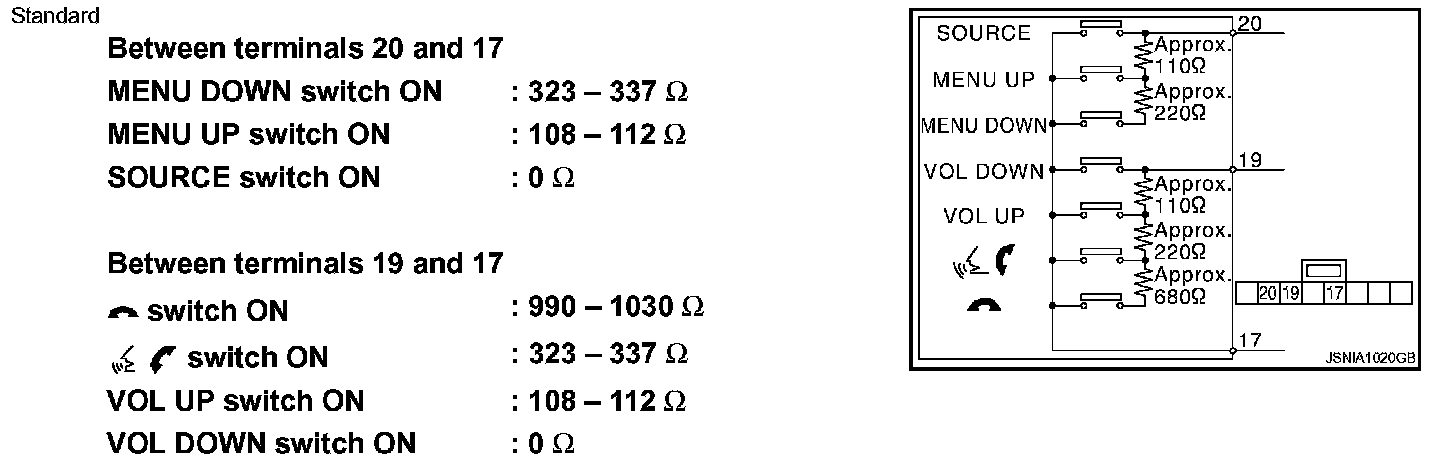

Measure the resistance between the steering switch connector terminals 20 to 17 and 19 to 17.
