Multi AV System Symptoms
SYMPTOM DIAGNOSISMULTI AV SYSTEM SYMPTOMS
Symptom Table
RELATED TO NAVIGATION
Trouble diagnosis chart by symptom
RELATED TO HANDS-FREE PHONE
- Check that the cellular phone is corresponding type (Bluetooth(TM) correspond) when the hands-free related malfunction vehicle is in service before performing a diagnosis.
- There is a case that malfunction occurs due to the version change of the phone type, etc. even though it is a corresponding type. Therefore, confirm it by changing the cellular phone to another corresponding type phone, and check that it operates normally. It is necessary to distinguish whether the cause is the vehicle or cellular phone.
Simple check for Bluetooth(TM) communication
If cellular phone and AV control unit cannot be connected with Bluetooth(TM) communication, following procedure allows the technician to judge which device has malfunction.
1. Turn on a cellular phone, not connecting Bluetooth(TM) communication.
2. Start CONSULT-III, then start Windows(R).
3. Set CONSULT-III near a cellular phone.
4. When operated Bluetooth(TM) registration by cellular phone, check if CONSULT-III* would be displayed on the device name.
(If other Bluetooth(TM) device is located near cellular phone, a name of the device would be displayed also.)
NOTE: *:Displayed device name is "NISSAN-****** ".
- If no device name is displayed, cellular phone is malfunctioning. Repair the cellular phone first, then perform diagnosis.
- If CONSULT-III is displayed on device name, cellular phone is normal. Perform diagnosis as per the following table.
Trouble diagnosis chart by symptom
RELATED TO CAMERA
Trouble diagnosis chart by symptom
RELATED TO RGB IMAGE (FRONT DISPLAY UNIT)
Trouble diagnosis chart by symptom
RELATED TO REAR DISPLAY
Trouble diagnosis chart by symptom

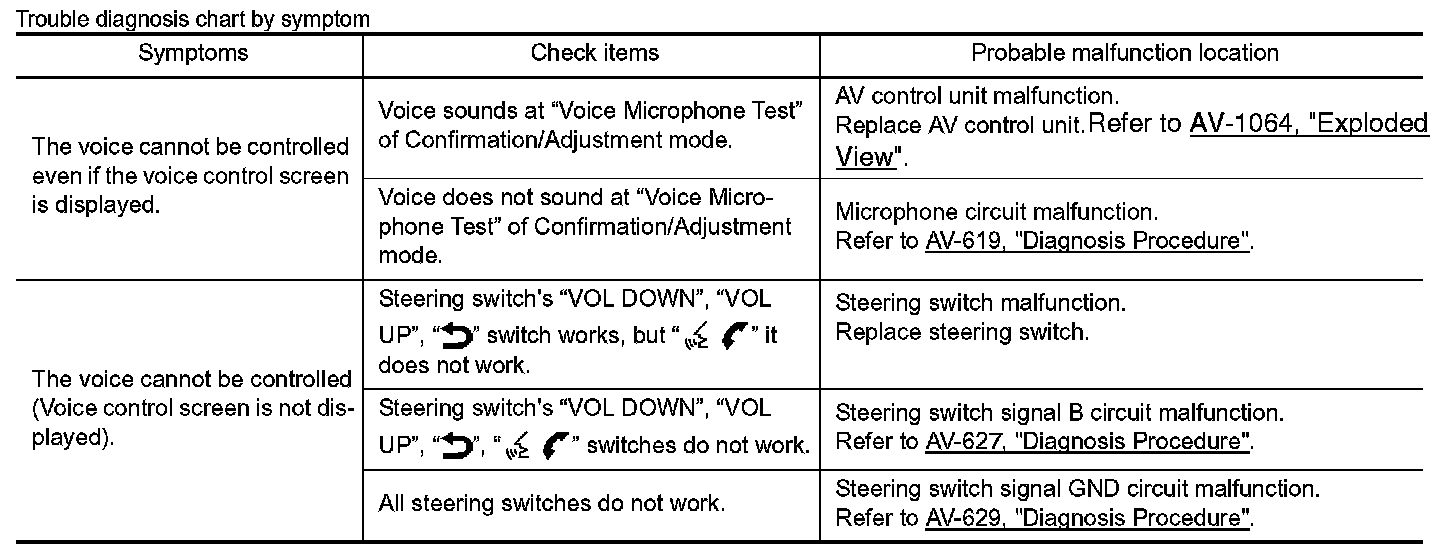

RELATED TO VOICE CONTROL
Trouble diagnosis chart by symptom
RELATED TO AUDIO
Trouble diagnosis chart by symptom
RELATED TO iPod(R)
Connect another iPod(R) and check if the symptom is reproduced or not. If the symptom is reproduced, diagnose the vehicle. If no malfunction is detected, replace the iPod harness.
NOTE: It is unable to check that between iPod(R) and iPod harness.
Trouble diagnosis chart by symptom
RELATED TO STEERING SWITCH
Trouble diagnosis chart by symptom
RELATED TO AUXILIARY INPUT
NOTE: Check that there is no malfunction of AUX equipment main body before performing a diagnosis.
Trouble diagnosis chart by symptom
RELATED TO DVD MODE
Trouble diagnosis chart by symptom
RELATED TO REMOTE CONTROL AND HEADPHONE
Trouble diagnosis chart by symptom
