Front Door Panel: Service and Repair

DOOR FINISHER

Removal and Installation

REMOVAL

FRONT AND REAR DOOR FINISHER
1. Fully open door window.

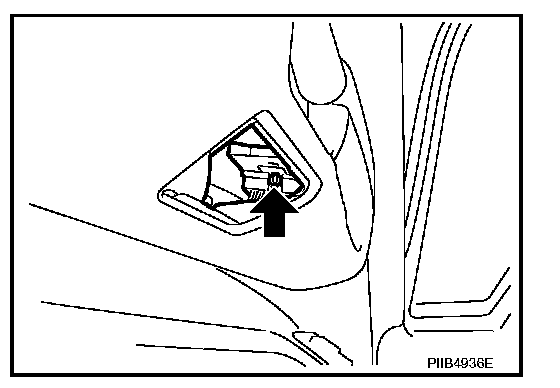

2. Remove inside handle escutcheon and remove screw.
3. Remove arm rest finisher.
4. Remove screw of armrest finisher portion.




5. Insert a thin screwdriver from the armrest finisher opening and lift the lock of the power window switch harness connector.




6. Insert a clip clamp remover into clips on back door finisher, and disengage clips.

CAUTION: Insert a clip clamp remover into the part shown by the arrow (between the clips and the body side panel). Remove door finisher.

7. Disconnect harness connector for step lamp.




8. Pull up door finisher and pull out toward vehicle inside, and then disconnect inside handle cable and lock knob cable from back door finisher.
9. Disconnect harness connector for power window switch, seat memory switch.
10. Remove door finisher.
11. Remove the following parts after removing door finisher.
- Inside handle assembly
- Armrest
- Seat memory switch
- Power window switch
- Step lamp

FRONT DOOR SASH COVER INNER
1. Remove front door finisher.

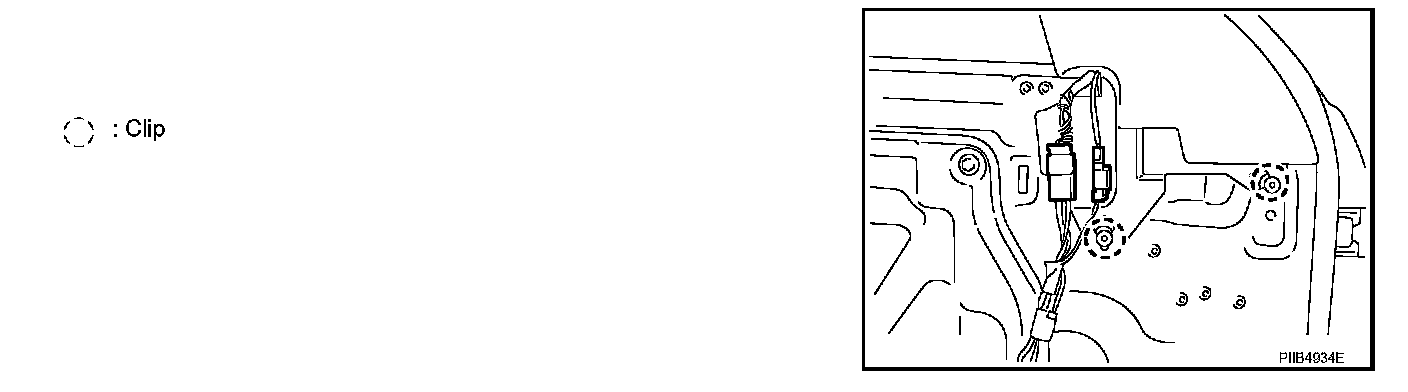

2. Disconnect harness connector for door mirror and tweeter.
3. Remove clips of front door sash cover inner.
4. Remove front door sash cover inner.

REAR DOOR SASH COVER INNER
1. Remove rear door finisher.

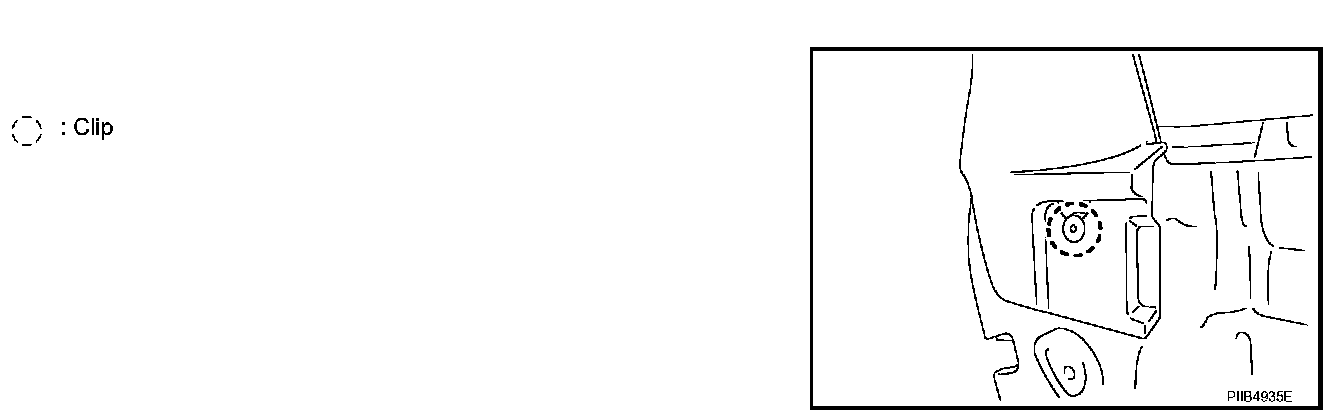

2. Remove clip of rear door sash cover inner.
3. Remove rear door sash cover inner.

INSTALLATION
Install in the reverse order of removal.

CAUTION: When installing door finisher, make sure that clips are securely fitted in panel holes on body, and then press them in.
