Overhaul

SUNROOF

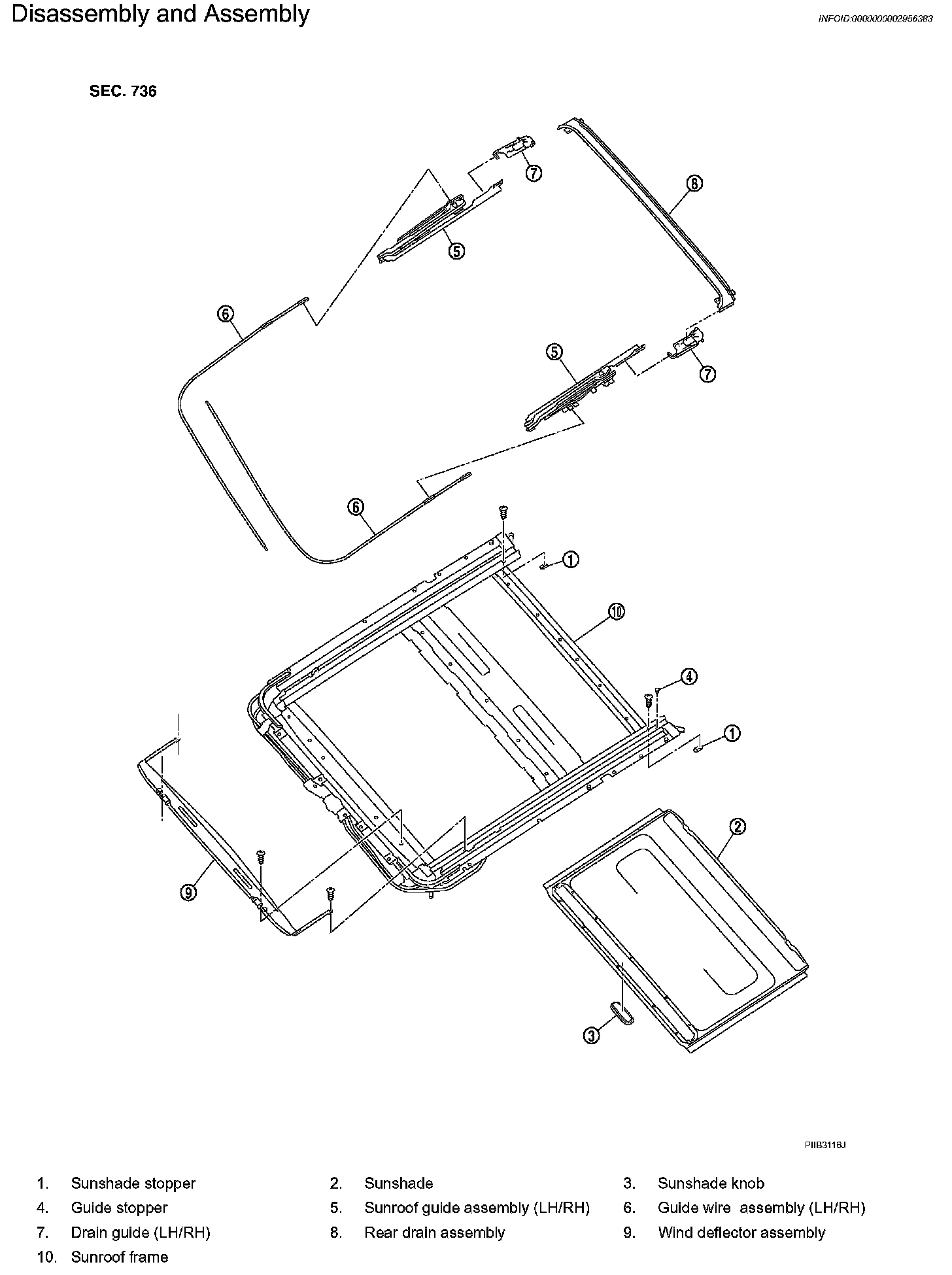

DISASSEMBLY AND ASSEMBLY






DISASSEMBLY
1. Remove sunshade stopper mounting screws from the rear end of sunroof frame, and then remove sunshade stopper.
2. Remove sunshade from the rear end of sunroof frame.

NOTE: Removing is possible even by the on vehicle.

3. Remove sunshade knob from the sunshade.
4. Remove guide stopper from the rear end of sunroof frame.
5. Remove sunroof guide assembly from the rear end of sunroof frame.
6. Remove guide wire assembly from sunroof guide assembly.
7. Remove rear drain assembly and drain guide from sunroof guide assembly.
8. Remove screws from left and right sides of each wind deflector holder. Extract pawls through rail holes, then remove left and right sides of wind deflector holder.
9. Remove screws from front end of sunroof unit. Extract pawls through frame holes, then remove wind deflector from frame assembly.

NOTE: Removing is possible even by the on vehicle.

ASSEMBLY
Assemble in the reverse order of disassembly.

CAUTION: Be sure to place the sunroof guide assembly in the symmetrical and fully close position.
