Check BCM Power Supply and Ground Circuit

Check BCM Power Supply And Ground Circuit

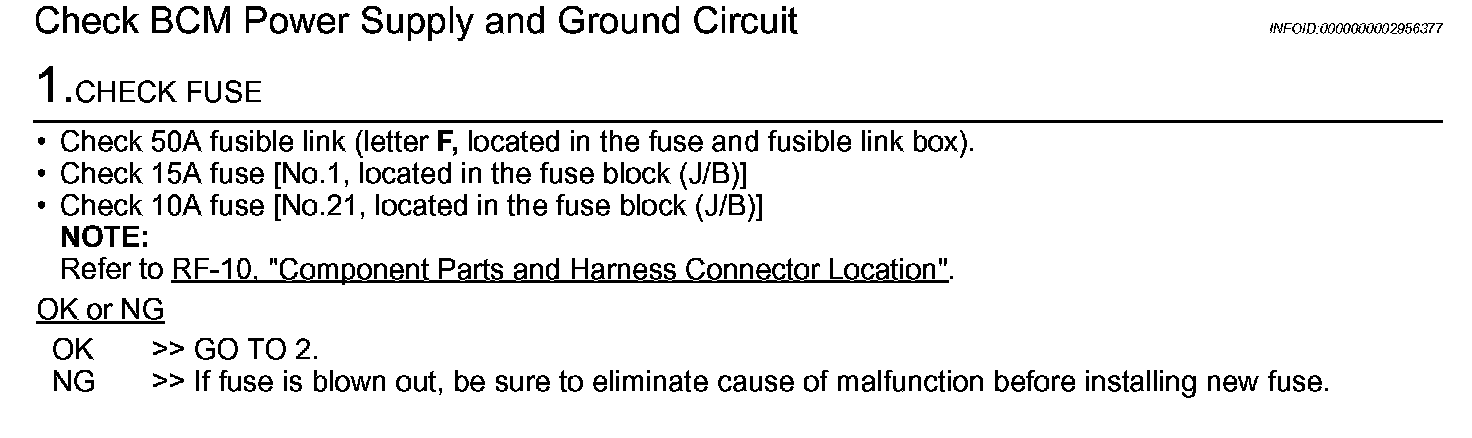

Step 1:

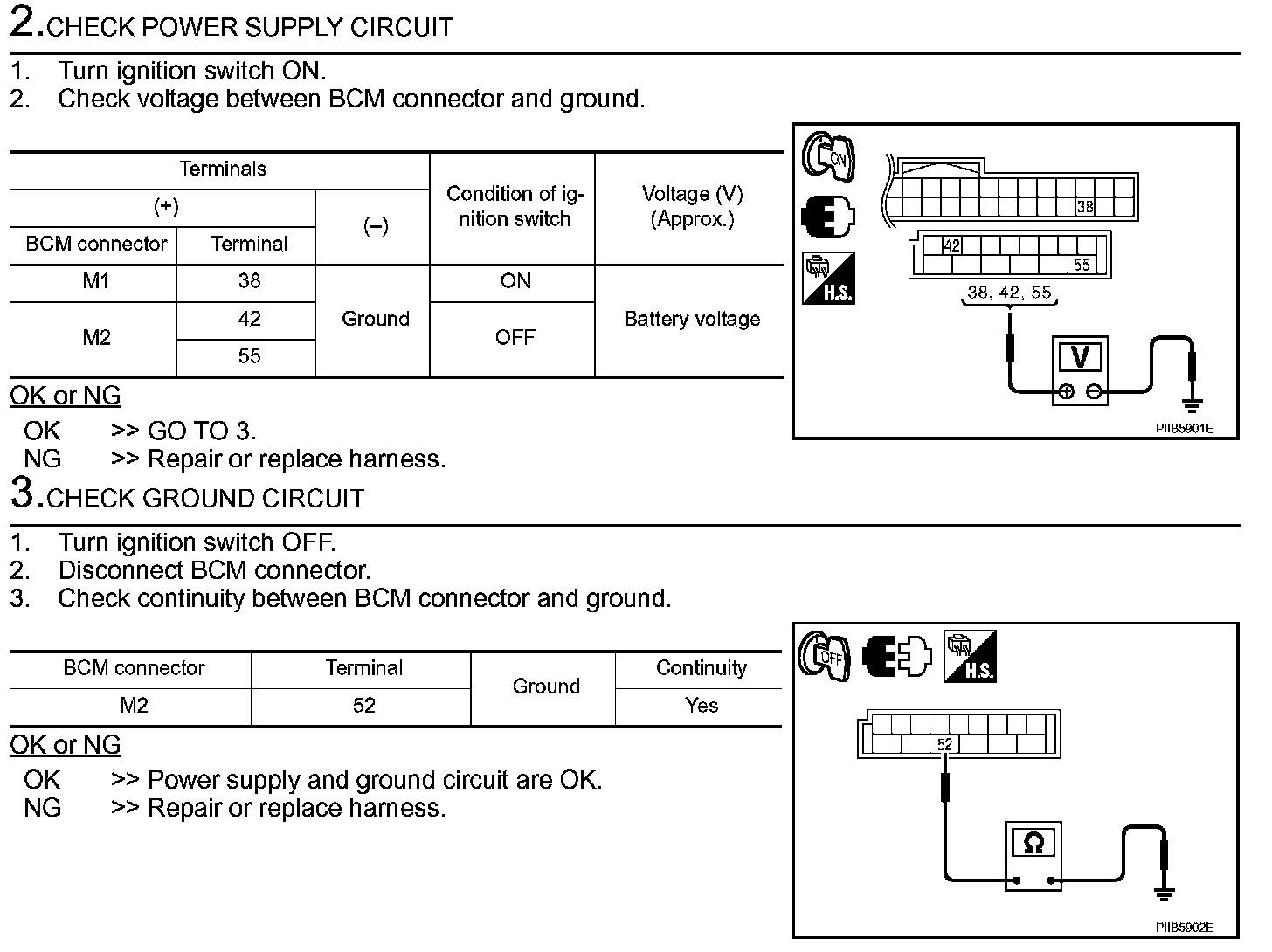

Step 2-3:
