Home >> Infiniti >> 2008 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Brakes and Traction Control >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Diagrams

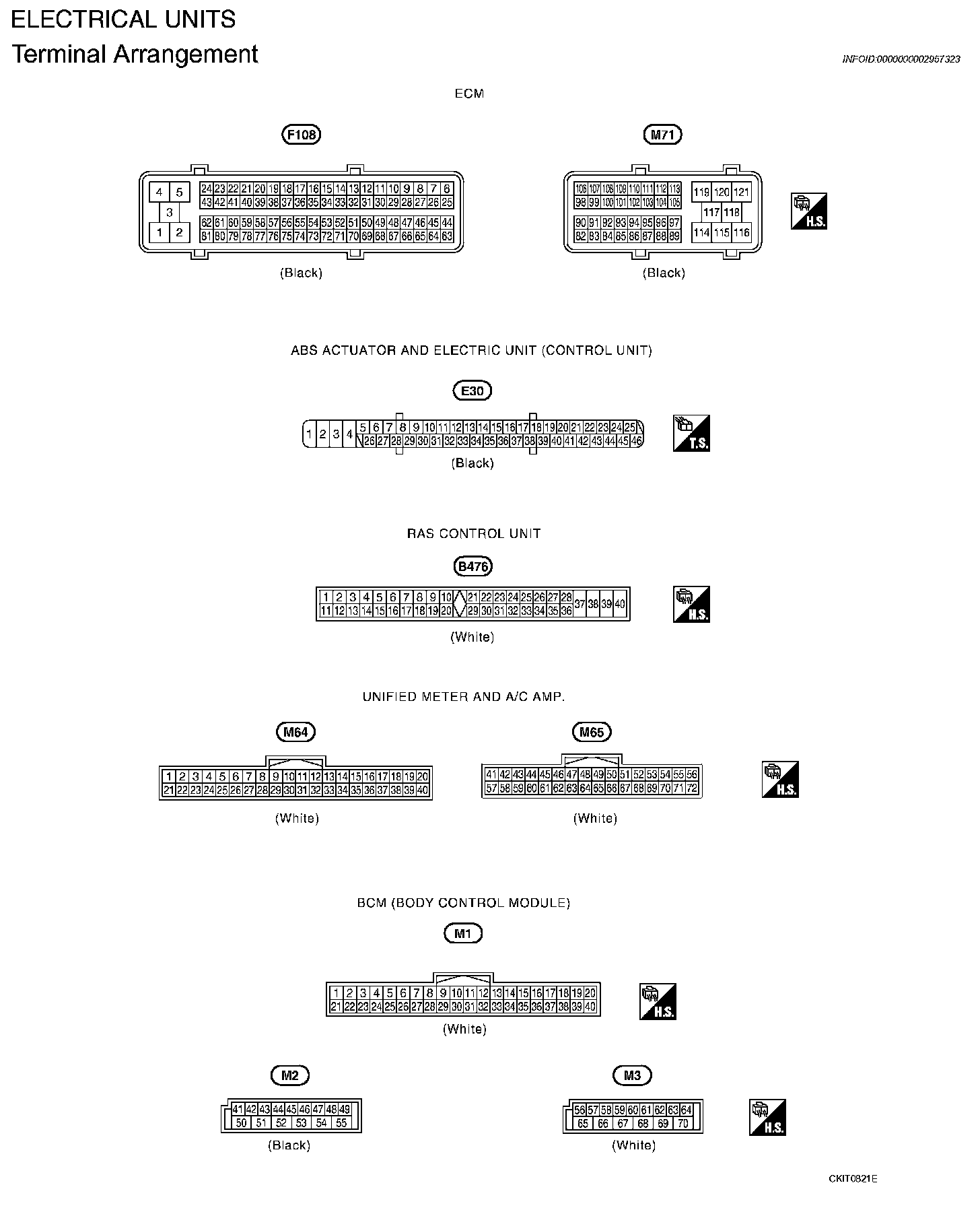

Electronic Brake Control Module: Diagrams
