ATC Diagrams (Automatic Air Conditioner)

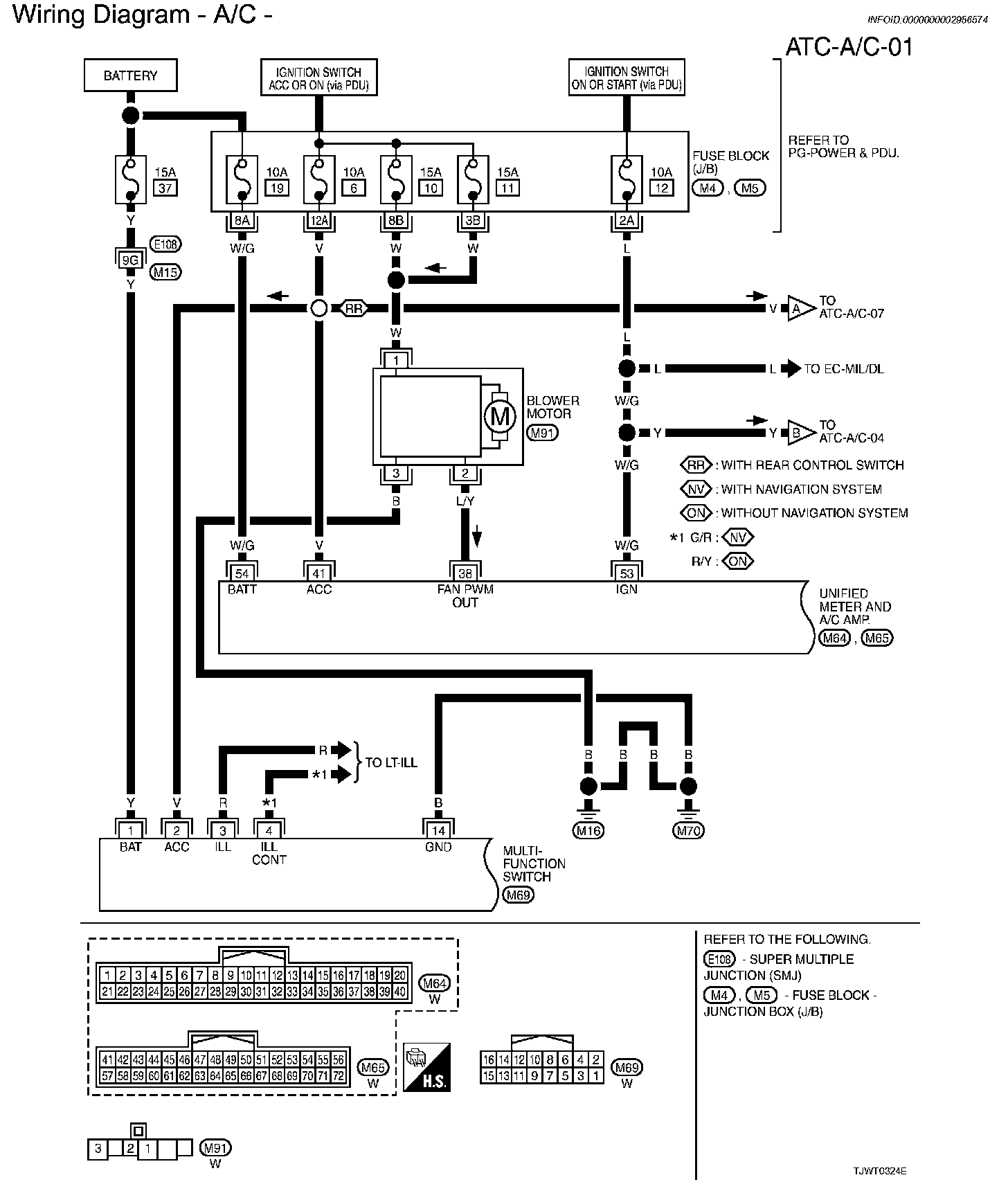

ATC-A/C-01:

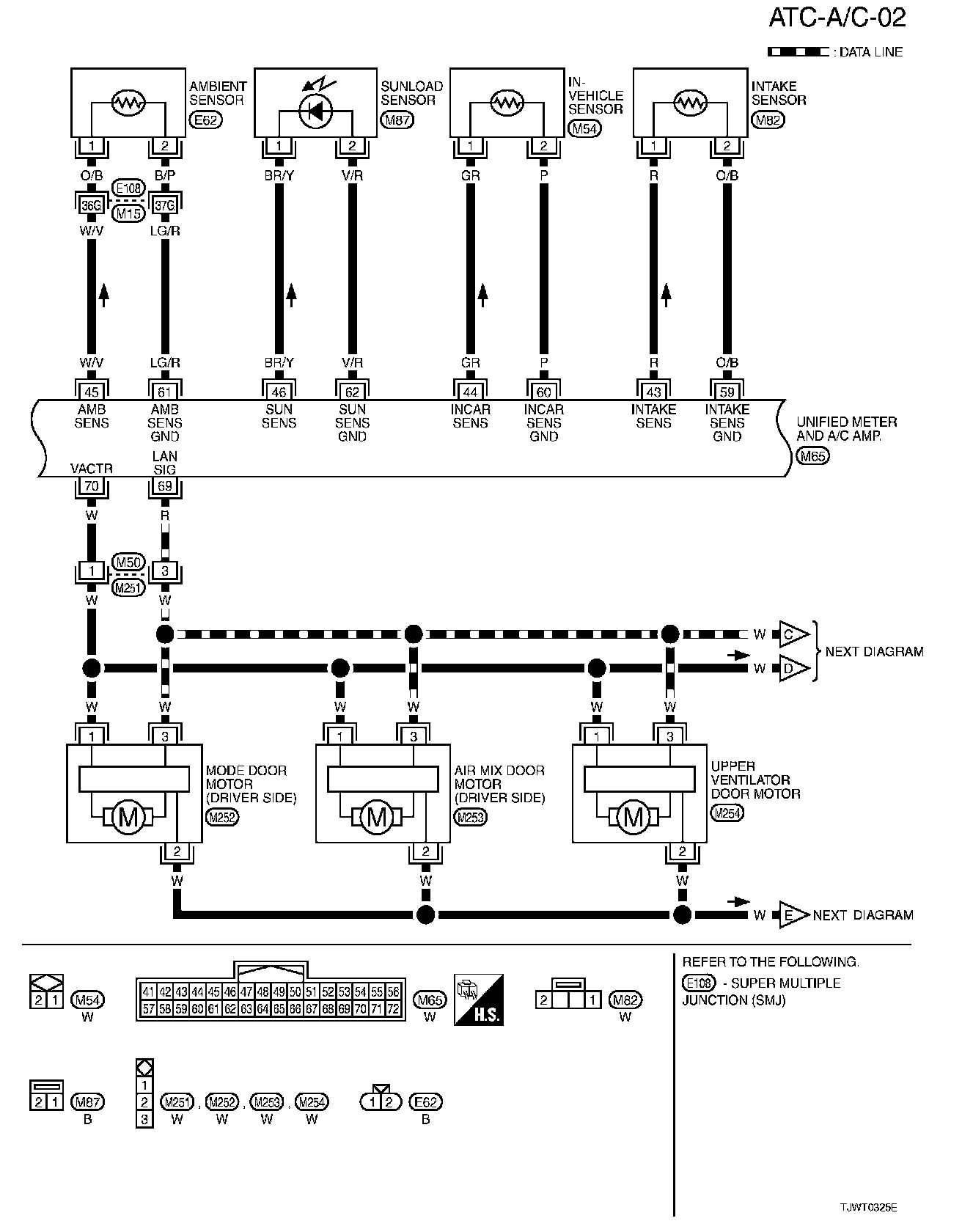

ATC-A/C-02:

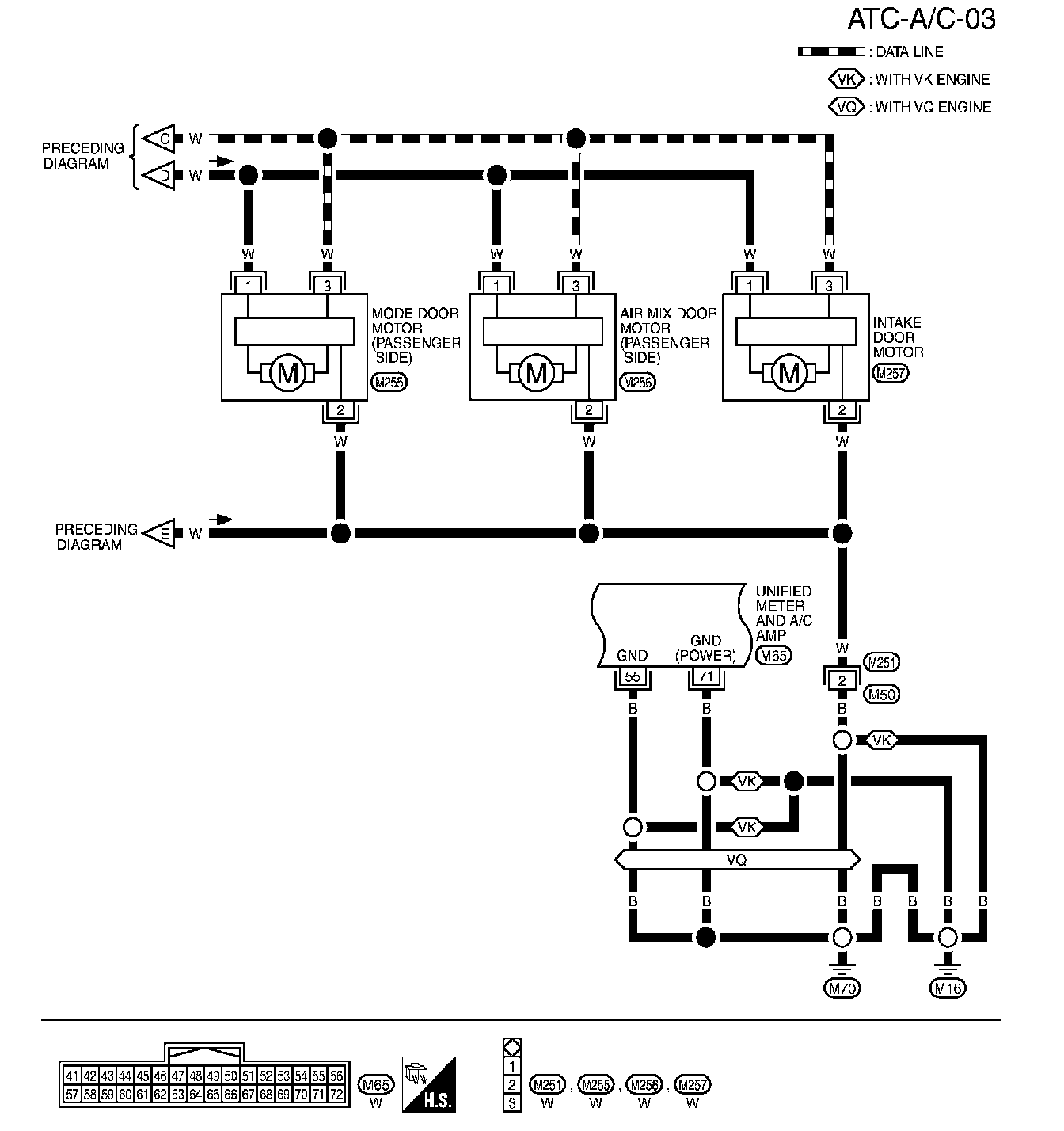

ATC-A/C-03:

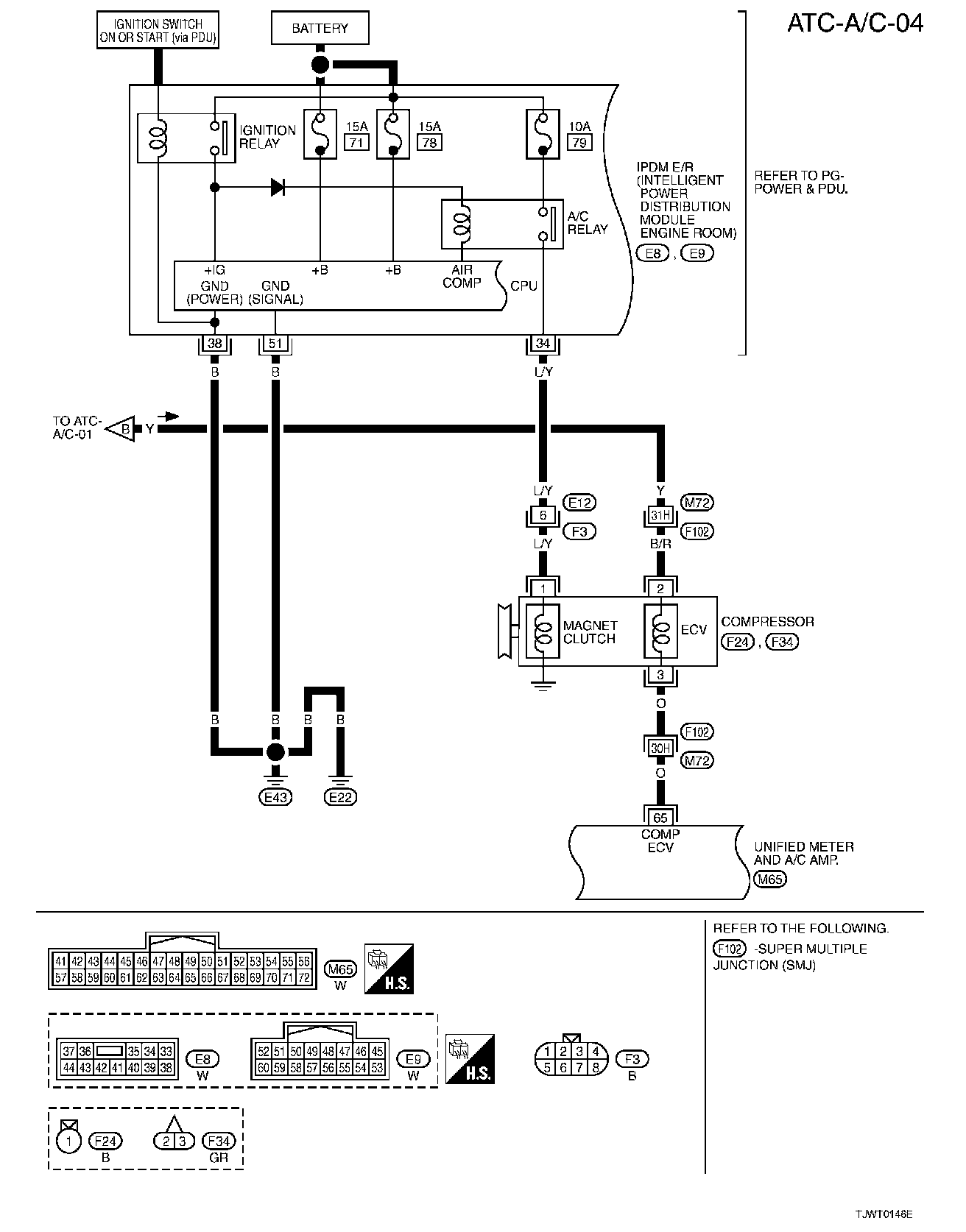

ATC-A/C-04:

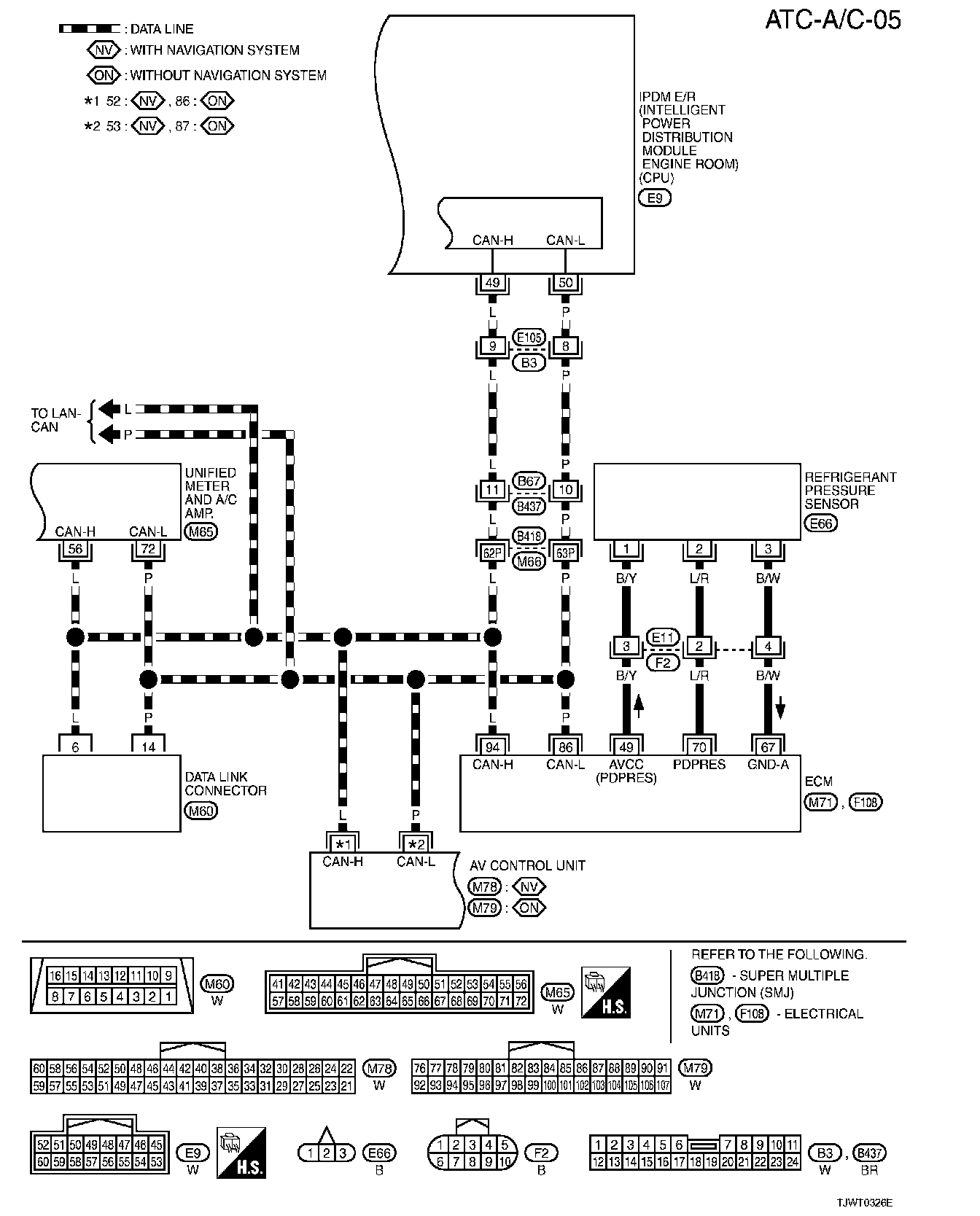

ATC-A/C-05:

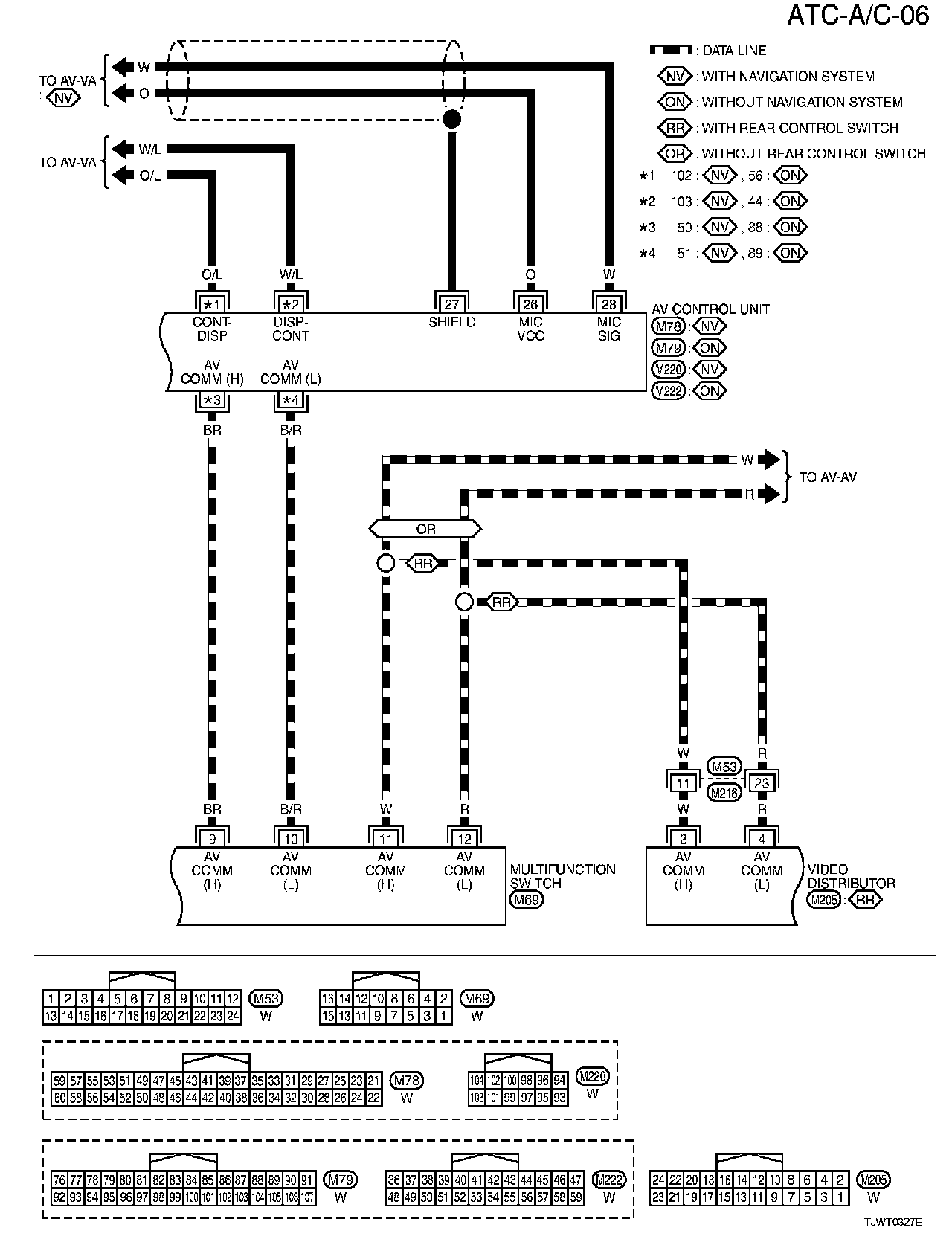

ATC-A/C-06:

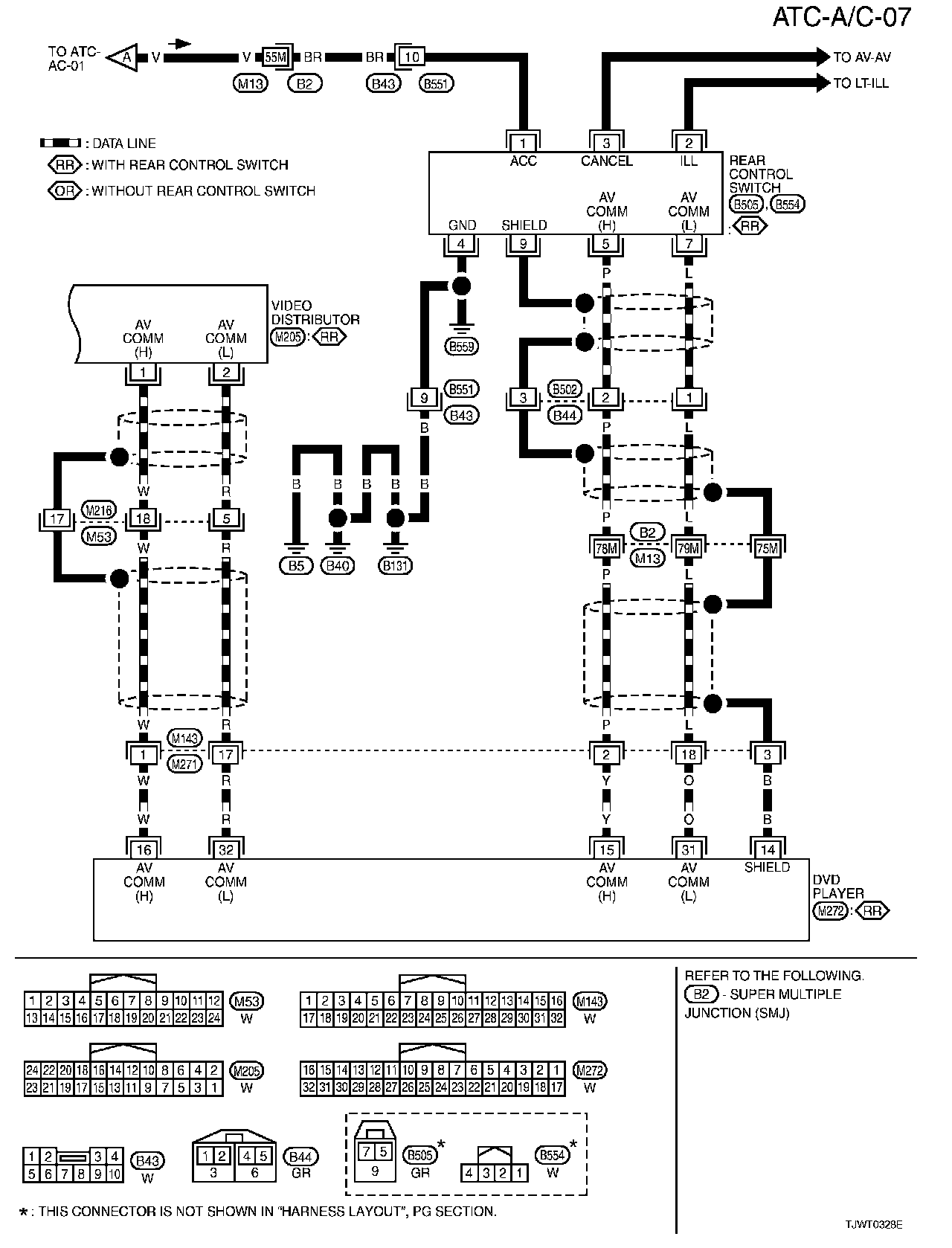

ATC-A/C-07:
