AV-AV

WITHOUT NAVIGATION : Wiring Diagram - AV - / Base Audio System

AV-AV-01:

AV-AV-02:

AV-AV-03:

AV-AV-04:

AV-AV-05:

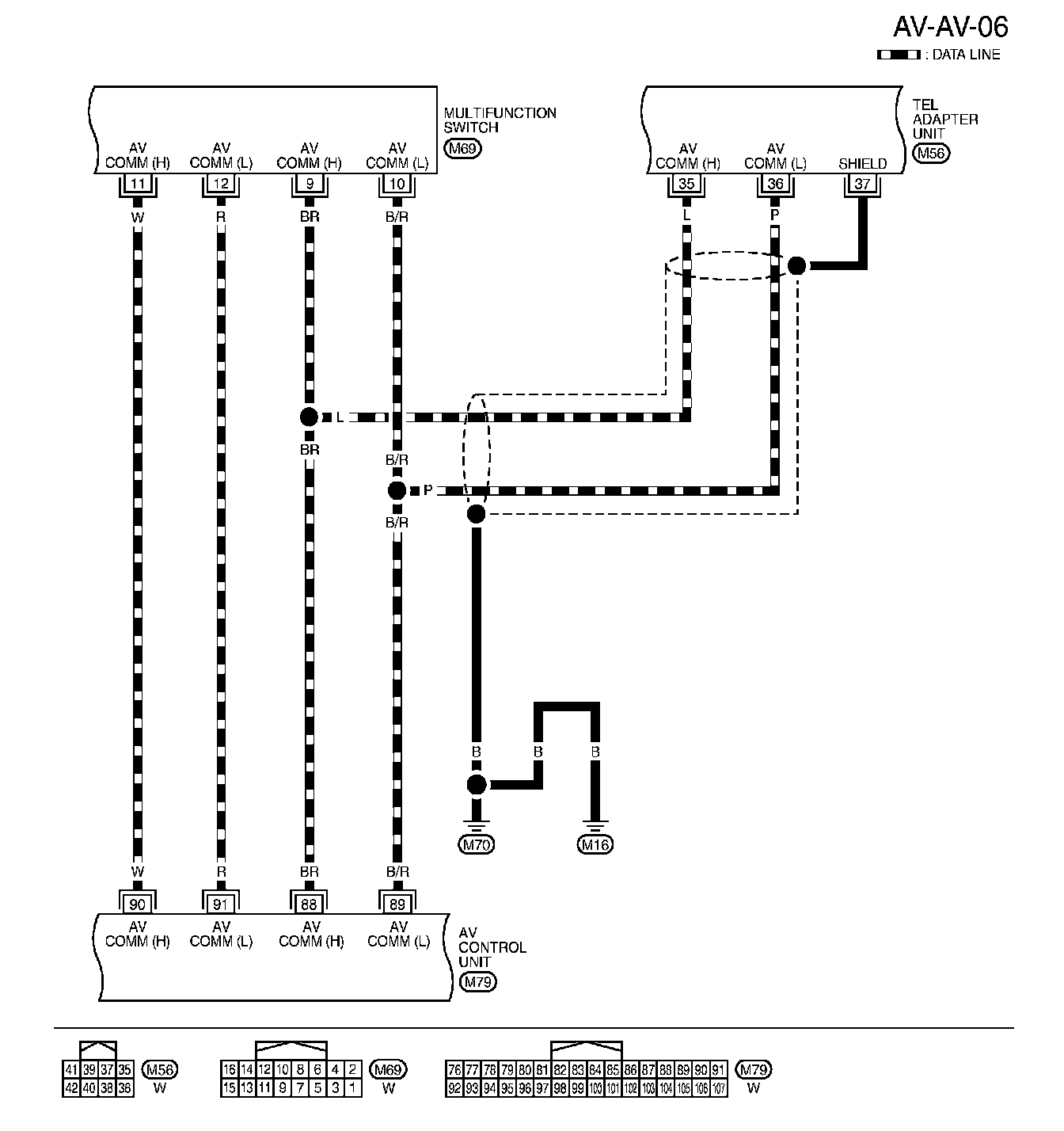

AV-AV-06:

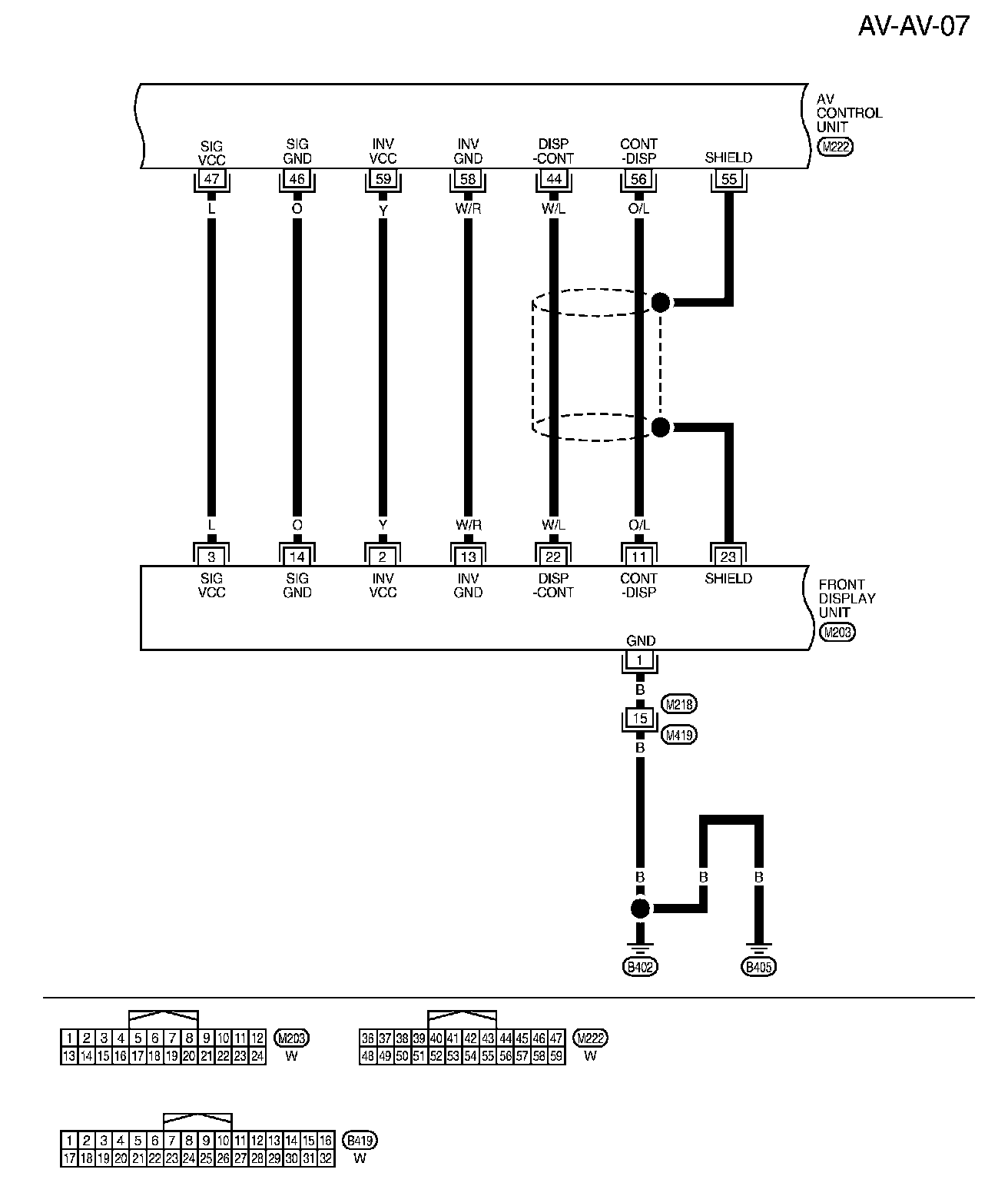

AV-AV-07:

AV-AV-08:

AV-AV-09:

AV-AV-10:

AV-AV-11:

AV-AV-12:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
