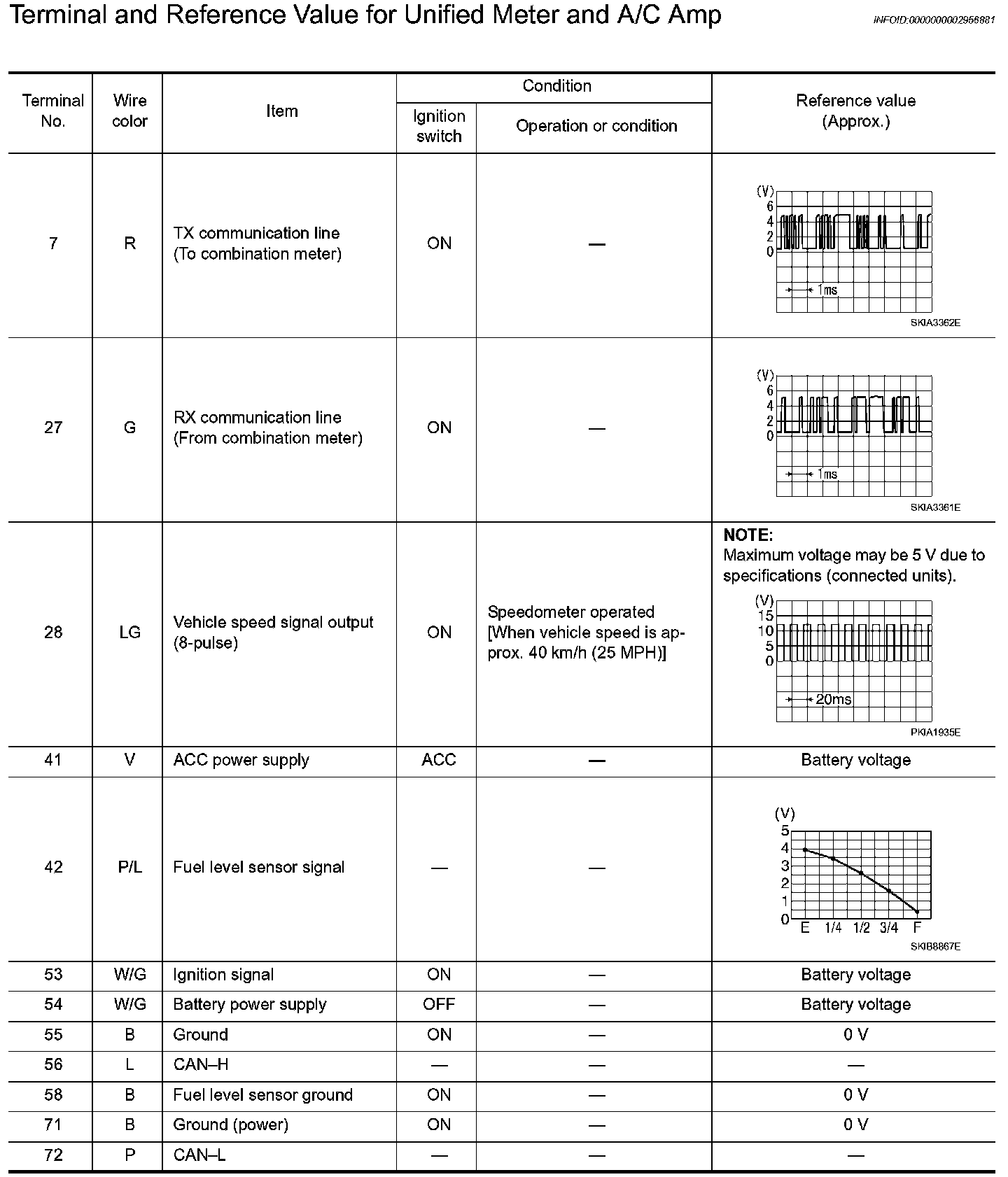

Terminal and Reference Value For Unified Meter and A/C Amp
Terminal and Reference Value For Unified Meter and A/C Amp
Terminal And Reference Value For Unified Meter And A/C Amp:
