Vehicle Speed Signal

Vehicle Speed Signal

MALFUNCTION CODE NO. 52

1.CHECK SELF-DIAGNOSIS RESULTS
1. Touch "SELF-DIAG RESULTS" on "SELECT DIAG MODE" screen.

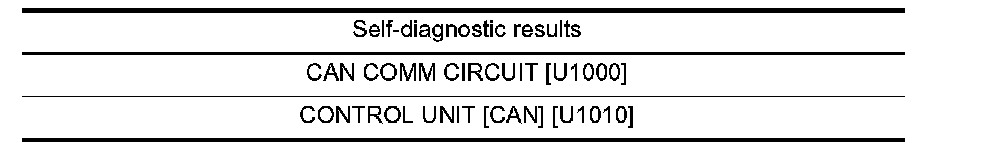

2. Check display contents in self-diagnostic results.
3.





Is above displayed on self-diagnosis display?
YES >> ^ If "CAN COMM CIRCUIT [U1000]" is displayed, print out self-diagnosis. And then, check to LAN-20, "Trouble Diagnosis Flow Chart". Diagnosis and Repair Workflow
^ Replace low tire pressure warning control unit if "CONTROL UNIT [CAN] [U1010]" is displayed.
NO >> Check combination meter refer to DI-18, "Trouble Diagnosis". How to Perform Trouble Diagnosis
