Body Control Module: Service and Repair

Removal and Installation of BCM

REMOVAL
1. Remove glove box cover.

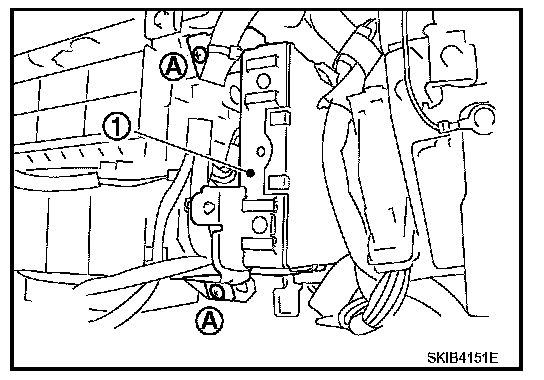

2. Remove screws (A), and pull out the BCM (1).
3. Disconnect connector.
4. Remove BCM (1).

INSTALLATION
Installation is the reverse order of removal.

NOTE: When replacing BCM perform initialization of NATS system and registration of all NATS ignition key IDs.
