Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2008
>>
M35 V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Check Seat Belt Buckle Switch (Driver Side) Circuit
Check Seat Belt Buckle Switch (Driver Side) Circuit

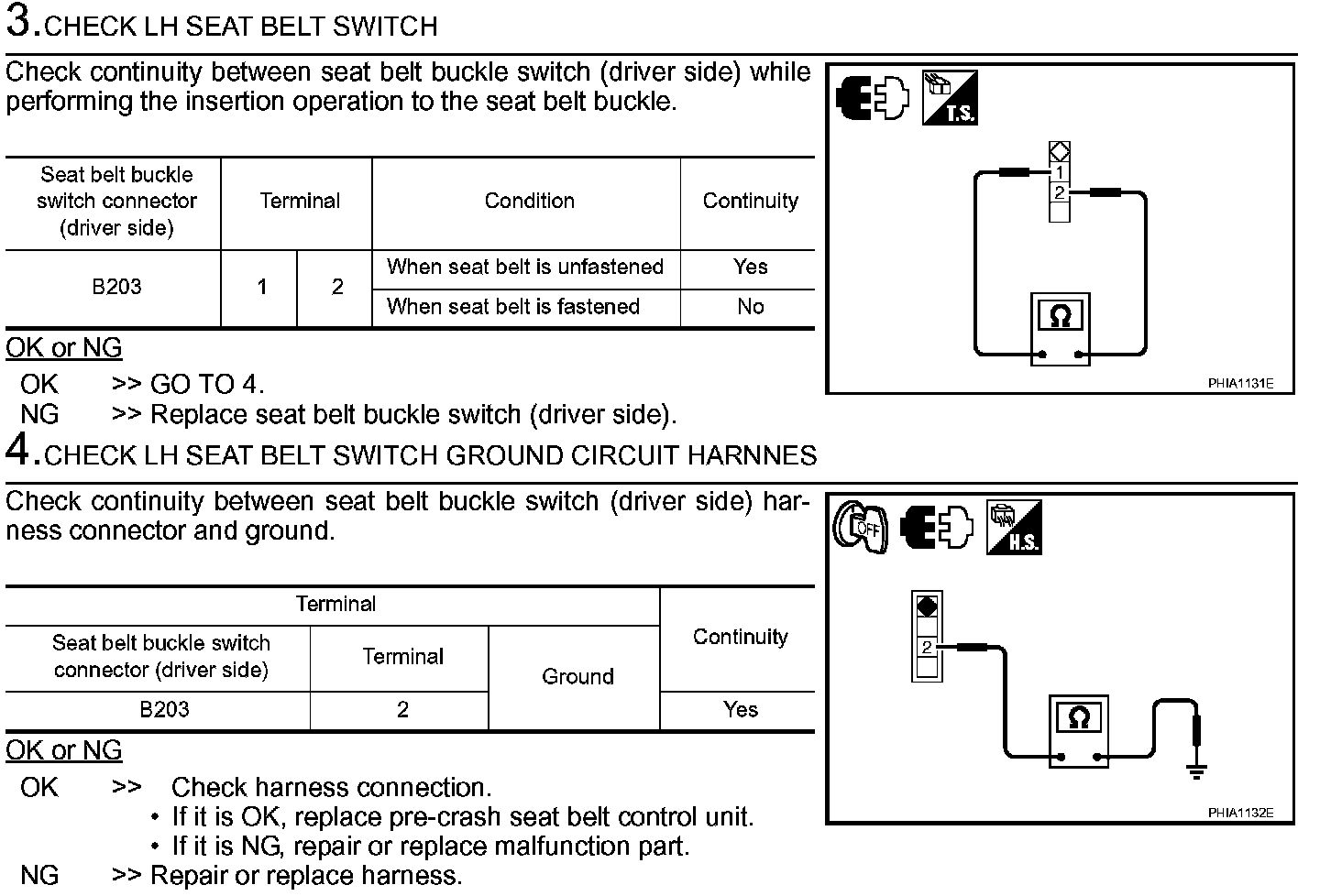

Step 1-2:
Step 3-4:
