Harmonic Balancer - Crankshaft Pulley
Crankshaft PulleyTighten crankshaft pulley bolt.
Tightening torque 44.1 Nm (4.5 kg-m, 33 ft-lb)

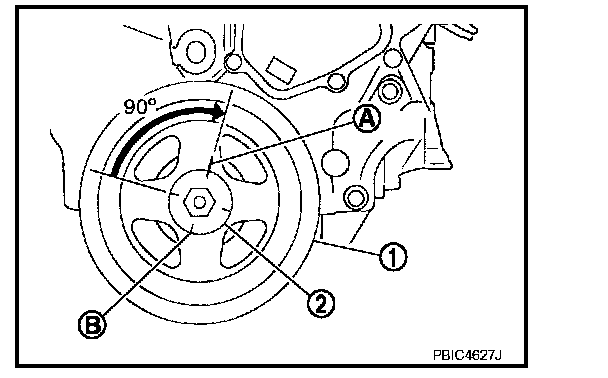

Place a paint mark (A) on crankshaft pulley (1) aligning with the angle mark (B) on crankshaft pulley bolt (2). Tighten the bolt 90 degrees (angle tightening).
Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns smoothly.
