Intake Manifold

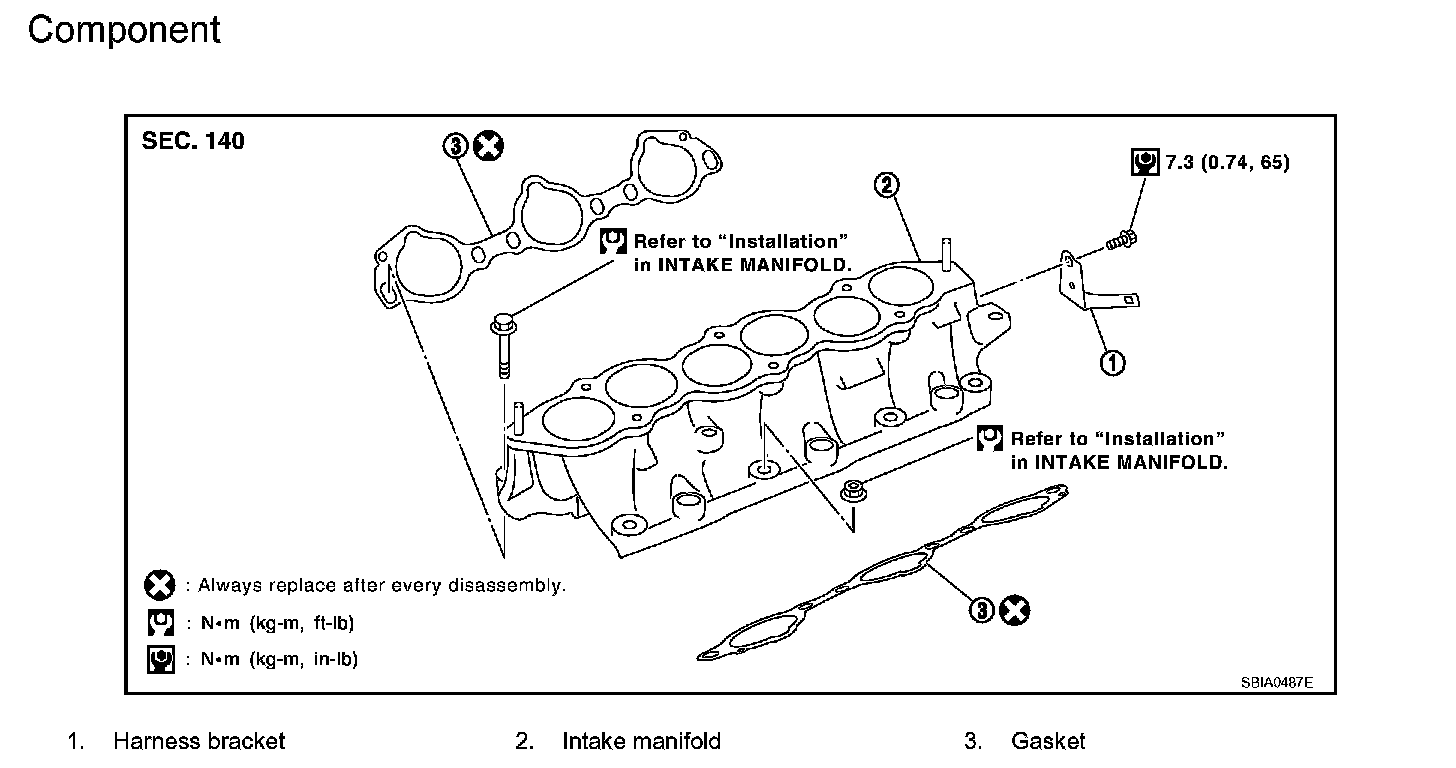

EM-24 Component:
Intake Manifold If stud bolts were removed, install them and tighten to the specified torque below.
Tightening torque
10.8 Nm (1.1 kg-m, 8 ft-lb)
Tighten all mounting bolts and nuts to the specified torque in two or more steps in numerical order shown in the figure.
1st step
7.4 Nm (0.75 kg-m, 5 ft-lb)
2nd step and after
29.0 Nm (3.0 kg-m, 21 ft-lb)
