Air Breather Hose

Removal and Installation

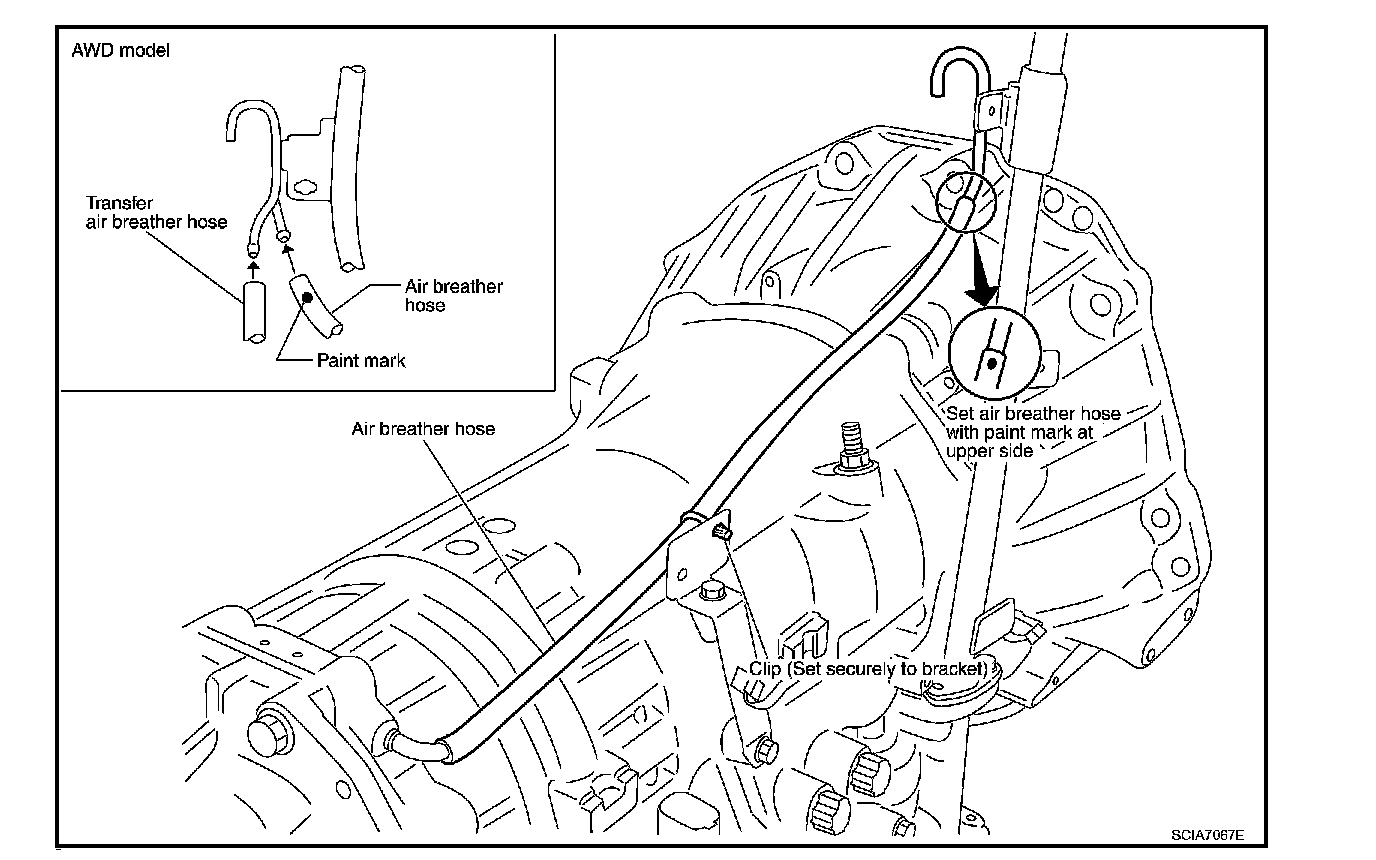

Refer to the figure below for air breather hose removal and installation procedure.





CAUTION:
^ When installing an air breather hose, be careful not to be crushed or blocked by folding or bending the hose.
^ When inserting an air breather hose to the transmission tube, be sure to insert it fully until its end reaches the tube bend "R" portion.
