Inspection

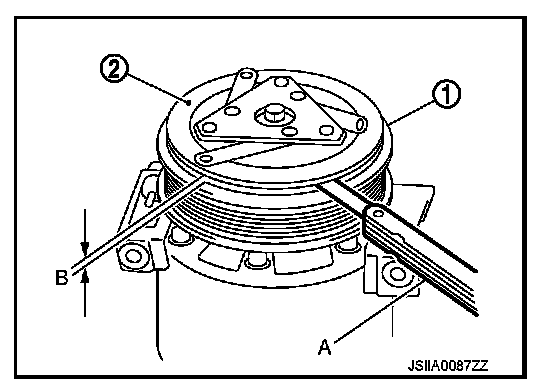

COMPRESSORInspection CHECK DISC TO PULLEY CLEARANCE Check the clearance (B) between pulley assembly (1) and clutch disc (2) along the entire periphery with a feeler gauge (A).
Standard : Refer to HA-56, "Compressor".
Compressor Replace compressor if specified clearance is not obtained.
