Warning Function

INTELLIGENT KEY SYSTEM


WARNING FUNCTION : System Description


OPERATION DESCRIPTION
The warning functions are as per the following and are given to the user as warning information and warnings using combinations of Intelligent Key warning buzzer, KEY warning lamp, key slot illumination and information displayed on combination meter.
- Intelligent Key system malfunction
- OFF position warning
- P position warning
- ACC warning
- Take away warning
- Door lock operation warning
- Key warning
- Intelligent Key insert information
- Engine start information
- Steering lock information
- Intelligent key low battery warning
- Key ID warning

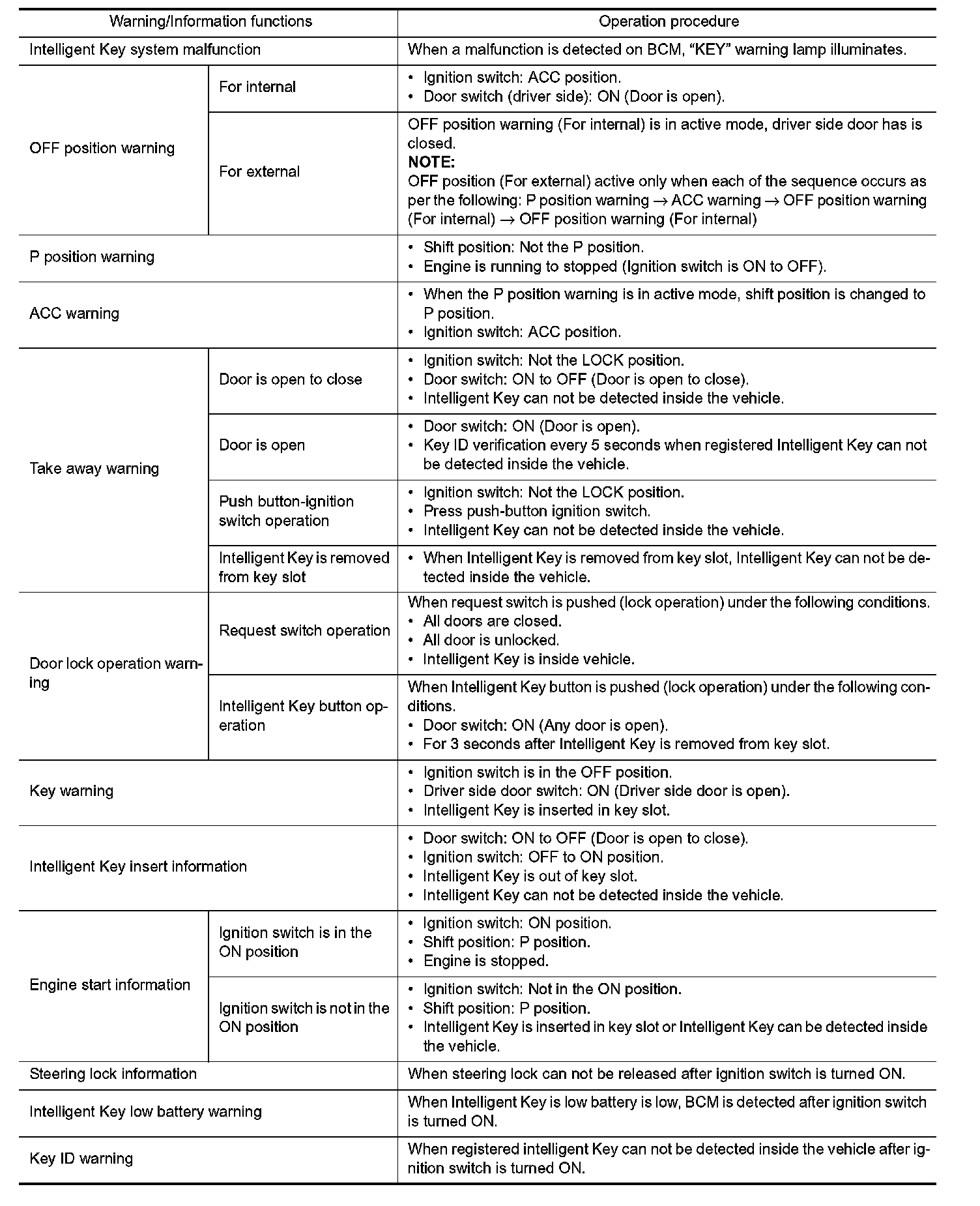

OPERATION CONDITION
Once the following condition from below is established, alert or warning is performed.






WARNING METHOD

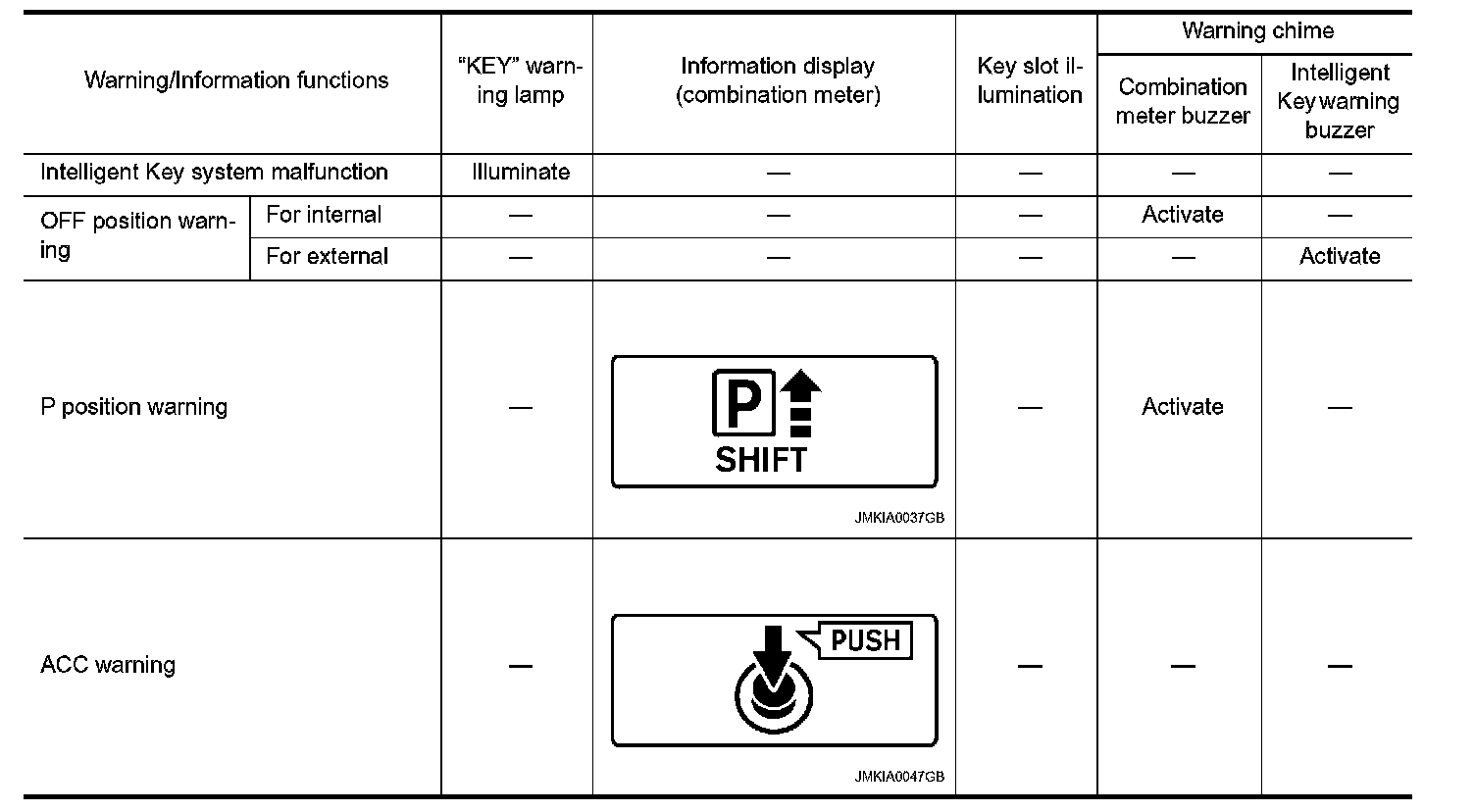

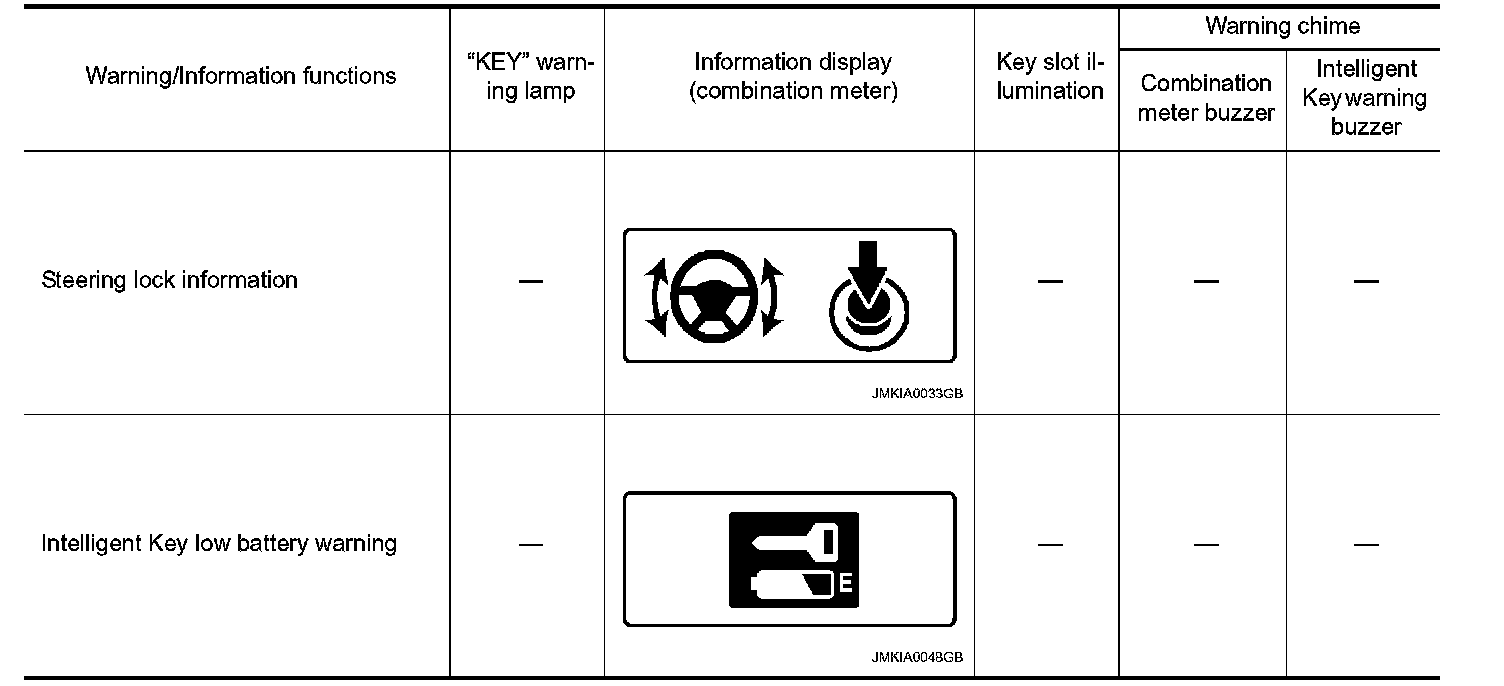

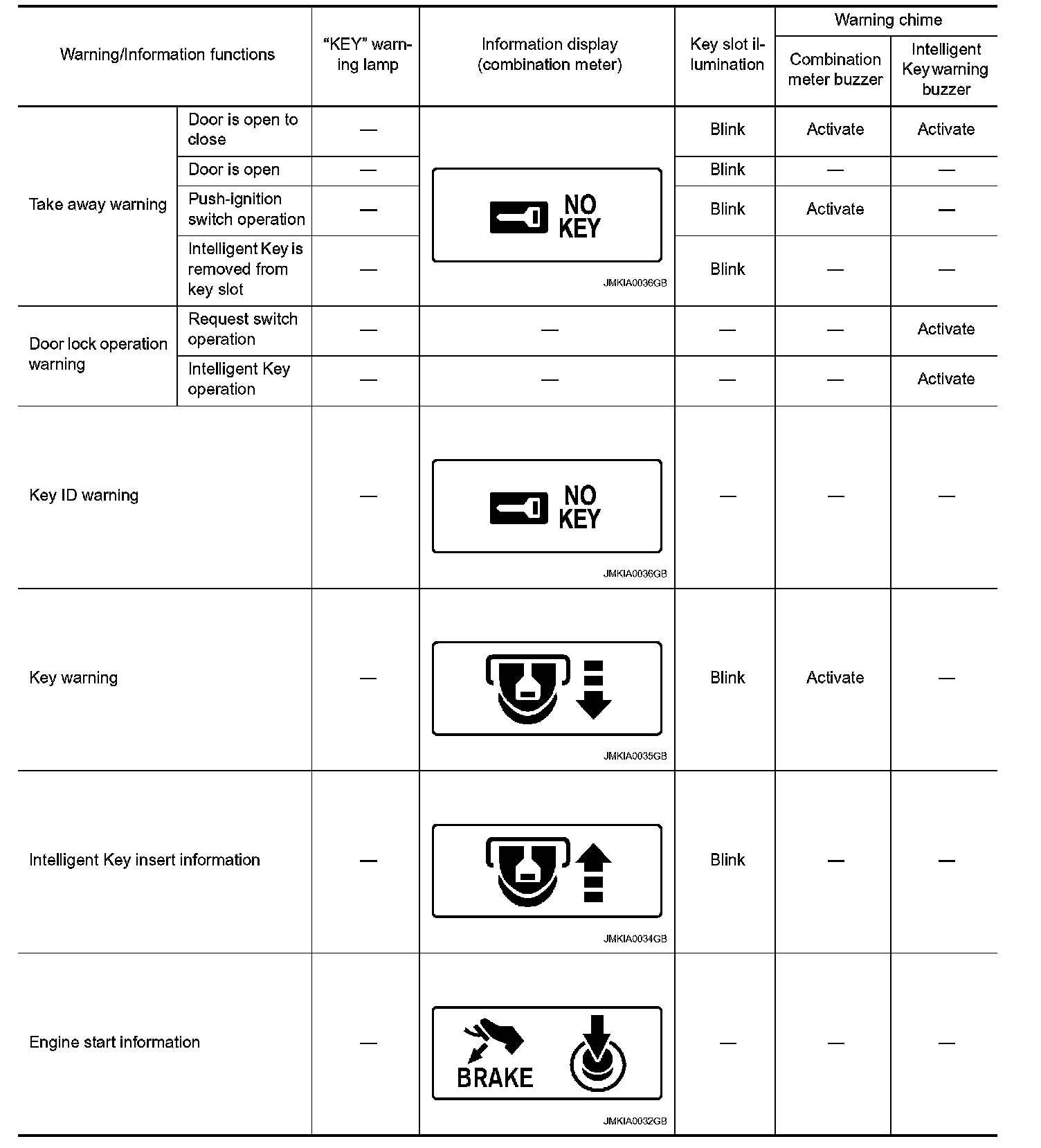

The following table shows the alarm or warning methods by using the chime.
Information display (combination meter), "KEY" indicator or key slot illumination when the warning conditions are met.

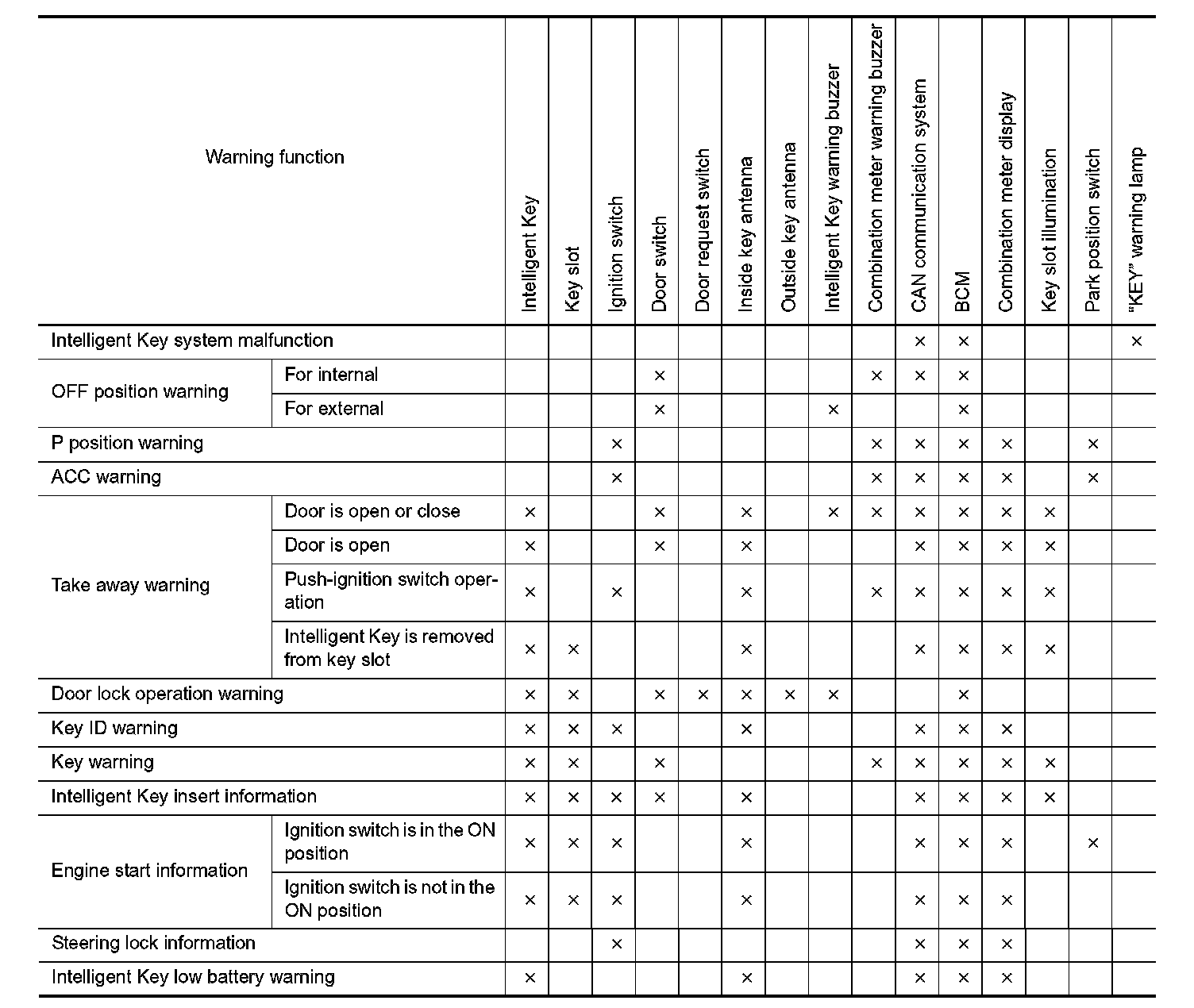

LIST OF OPERATION RELATED PARTS
Parts marked with � are the parts related to operation.
