Removal and Installation

SUNROOF MOTOR ASSEMBLY


Removal and Installation


REMOVAL

CAUTION:
- Before removing sunroof motor, check that glass lid is fully closed.
- After removing sunroof motor, never attempt to rotate sunroof motor assembly as a single unit.
1. Remove the map lamp assembly. Refer to Removal and Installation.
2. Remove the sunroof motor assembly.

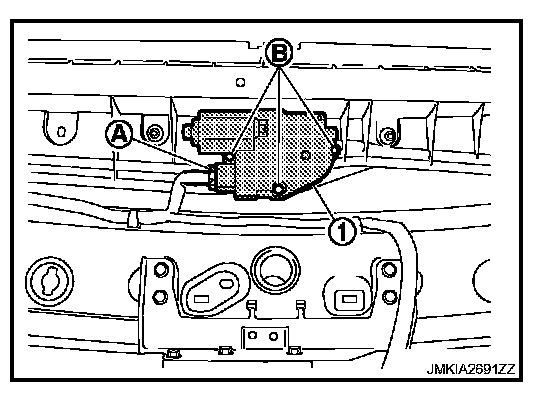

- Disconnect connector (A) from sunroof motor assembly (1).
- Remove sunroof motor assembly mounting screws (B), and then remove sunroof motor assembly.

INSTALLATION

CAUTION:
Before installing the sunroof motor assembly, always place the link and wire assembly in the symmetrical and fully closed position.
1. Move the sunroof motor assembly laterally a little so that the gear is completely engaged into the wire on the sunroof unit assembly and mounting surface becomes parallel. Then tighten the sunroof motor assembly with screws.
2. Install the map lamp assembly. Refer to Removal and Installation.
