Remote Keyless Entry Function





INTELLIGENT KEY SYSTEM

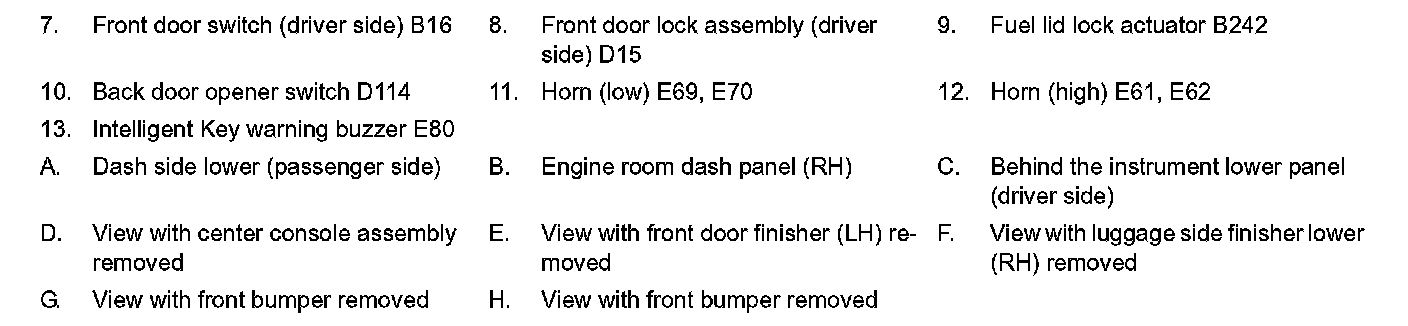

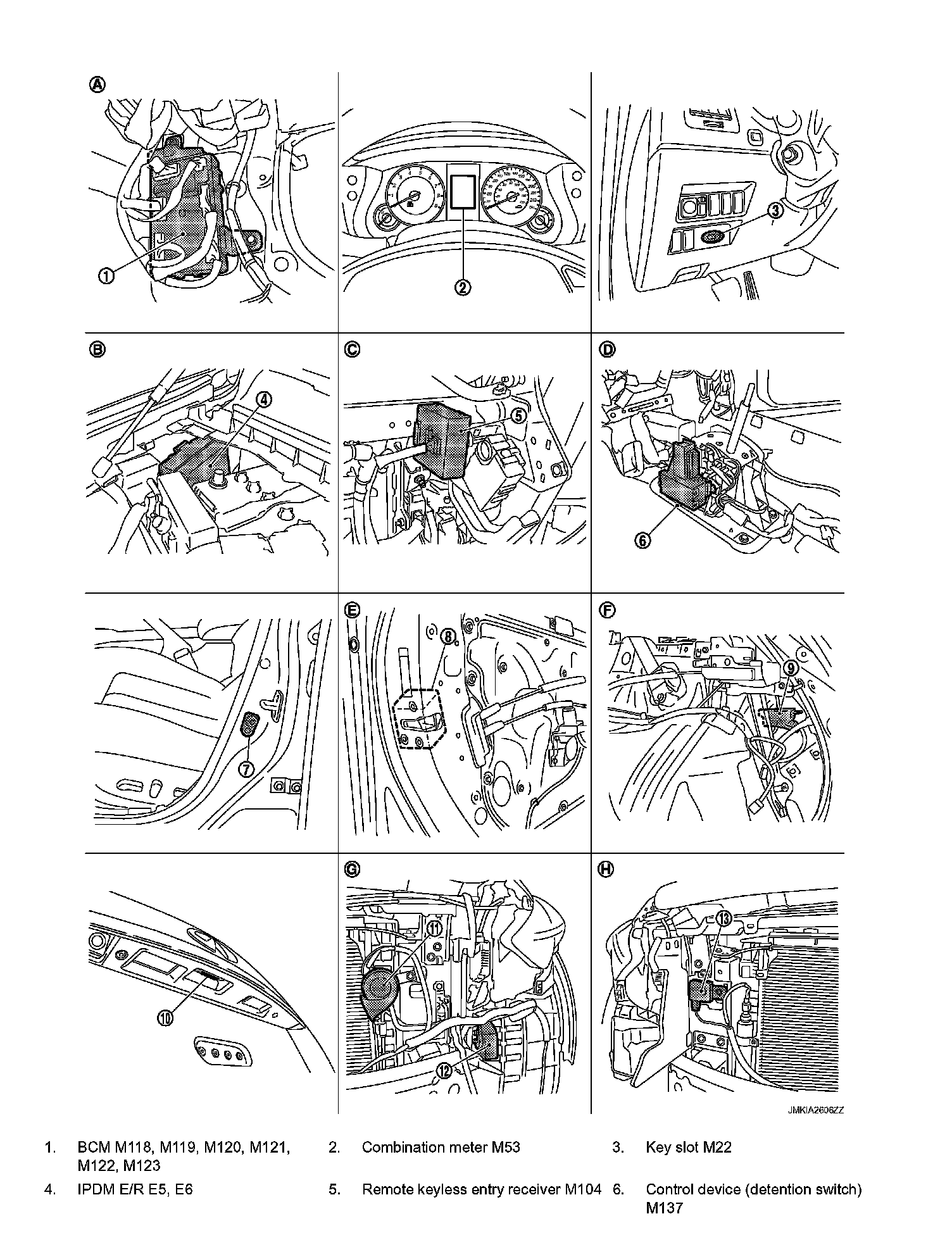

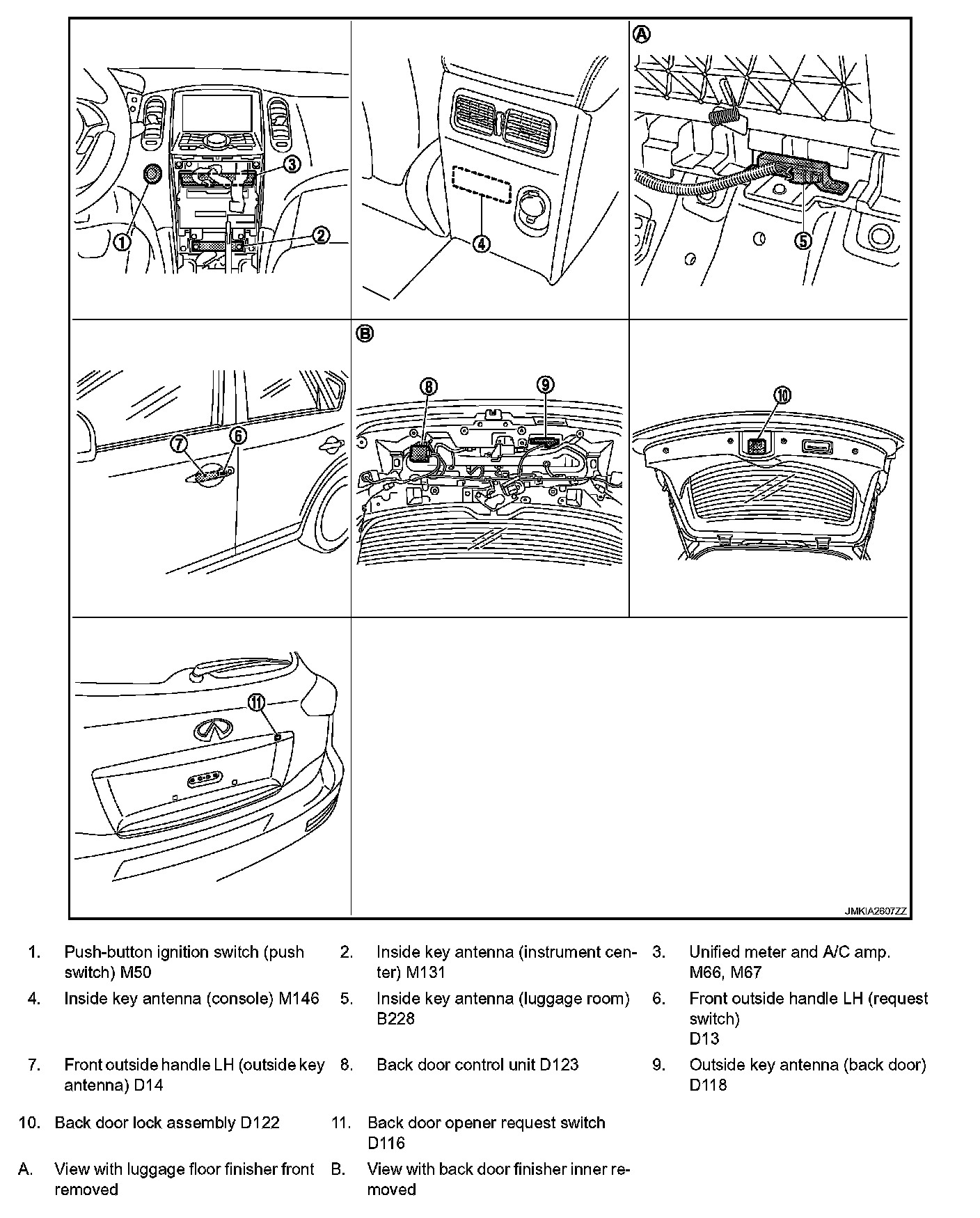

REMOTE KEYLESS ENTRY FUNCTION : Component Parts Location
