Component Function Check





BACK DOOR OPENER SWITCH


Component Function Check

1.CHECK FUNCTION

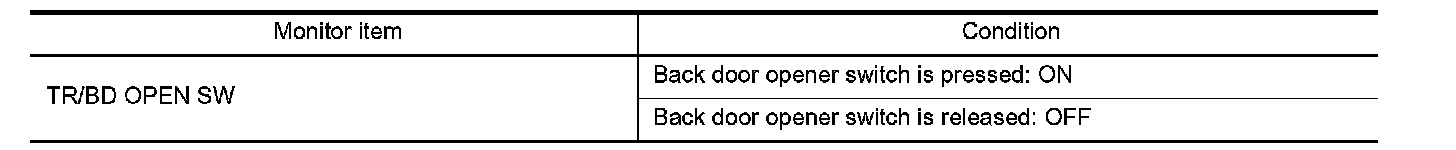

Check back door opener switch ("TR/BD OPEN SW") in "Data Monitor mode using CONSULT-III.
- When back door opener switch is turned to "ON".





Is the inspection result normal?
YES - Back door opener switch is OK.
NO - Refer to Diagnosis Procedure.
