With Mobile Entertainment System

U1206 GPS





Description

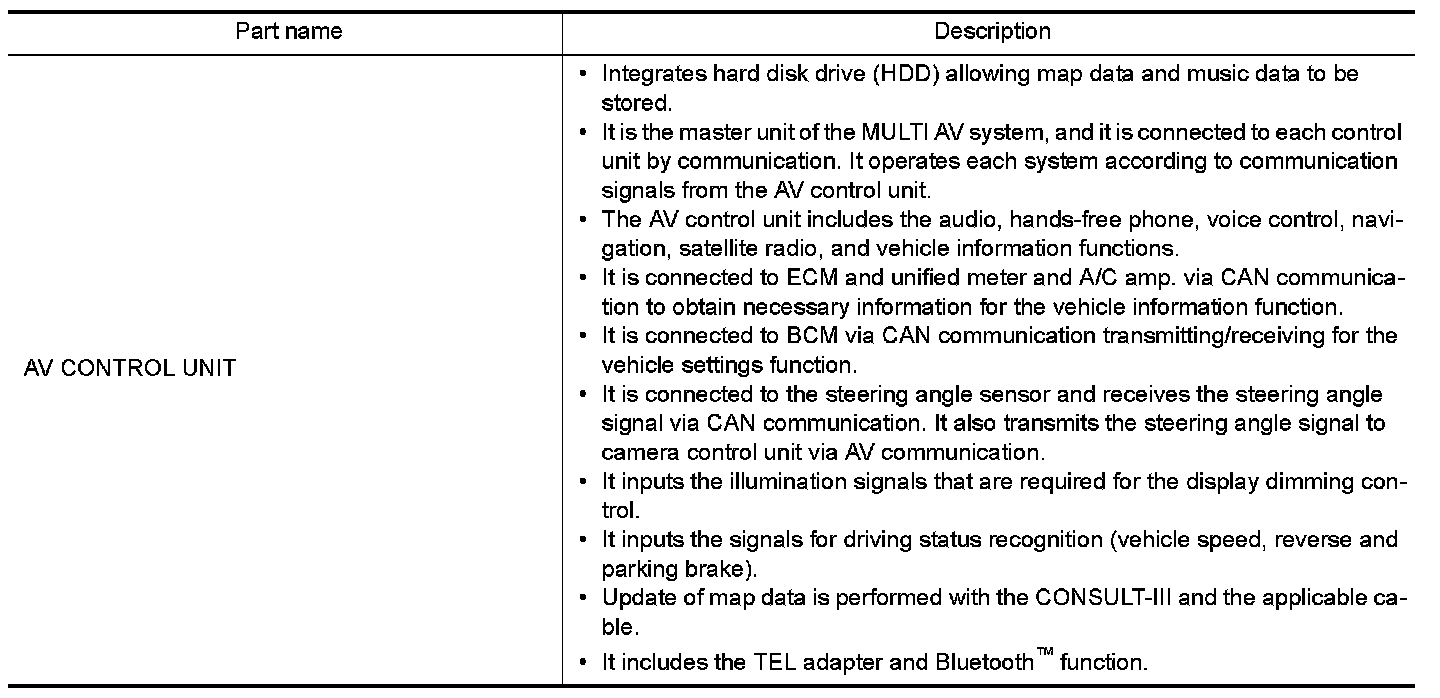

Replace the AV control unit if this DTC is displayed. Refer to With Mobile Entertainment System.









DTC Logic

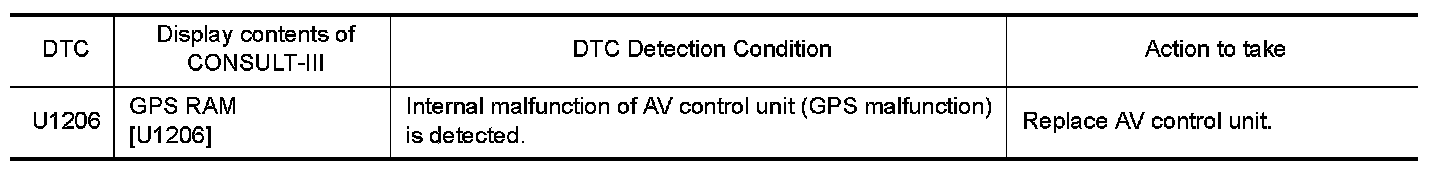

DTC Logic:

Diagnosis Procedure
1.PERFORM THE SELF-DIAGNOSIS
1. Delete the self-diagnosis results. Turn ignition switch OFF.
2. Turn ignition switch ON. Perform the self-diagnosis again.
3. Check that the DTC is detected again.
Is any DTC detected?
YES - Replace AV control unit.
NO - The intermittent malfunction caused by strong radio interference can be detected.
