A/T Control System

A/T CONTROL SYSTEM

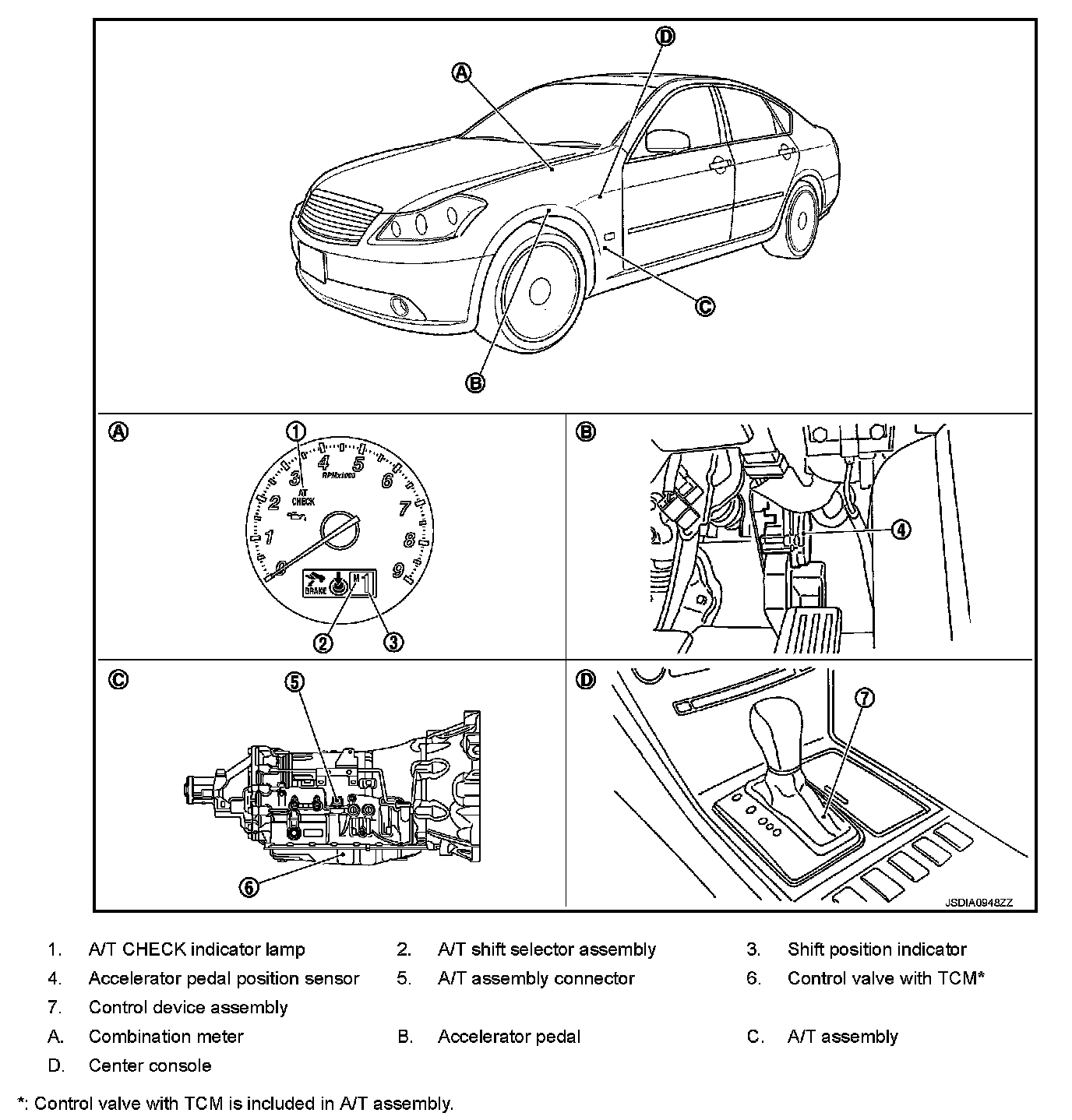

Component Parts Location






NOTE:
^ The following components are included in A/T shift selector assembly (7).
- Manual mode select switch
- Manual mode position select switch
^ The following components are included in control valve with TCM (6).
- TCM
- Input speed sensor 1, 2
- Output speed sensor
- A/T fluid temperature sensor
- Transmission range switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve
