Section 4: Acquiring the Install Key

SECTION 4: ACQUIRING THE INSTALL KEY

^ Before starting this section, you need:

> A Coupon Number (purchased from NAVTEQ via the Internet at www.nissannavigation.com or by calling NAVTEQ at 1-866-462-8837).

> A Certification No. (generated from the vehicle HDD navigation unit in Section 3).

^ The Consult PC must be connected to the Internet for this Section.

NOTE:
This section can be done using any PC containing ASIST or at any desktop computer. An Internet connection is required. Enter this Internet address: http://www.nissan-mapupdate.com





> Or if a smart phone is available that has a "QR scanner App" and Internet service, scan above.

^ To access the license server to acquire an Install Key (Install Code), your Internet browser must be set to accept cookies.

^ Once you have acquired the Install Key from the license server, cancellation and reissue of the Install Key is not allowed.

^ The acquired Install Key is valid for only three days from the date of issue.

^ You can retry the upgrade operation by using the same Install Key at any time during the three day period, but it cannot be used after the three day period has expired.

^ If you forgot the Install Key during the three day period, you can obtain the same Key by performing this section again. The key is still only valid for 3 days from the original date of issue.

1. If a Login screen is displayed after accessing the Nissan-mapupdate website, enter user ID "nissan" and password "nis06map", then select Login.

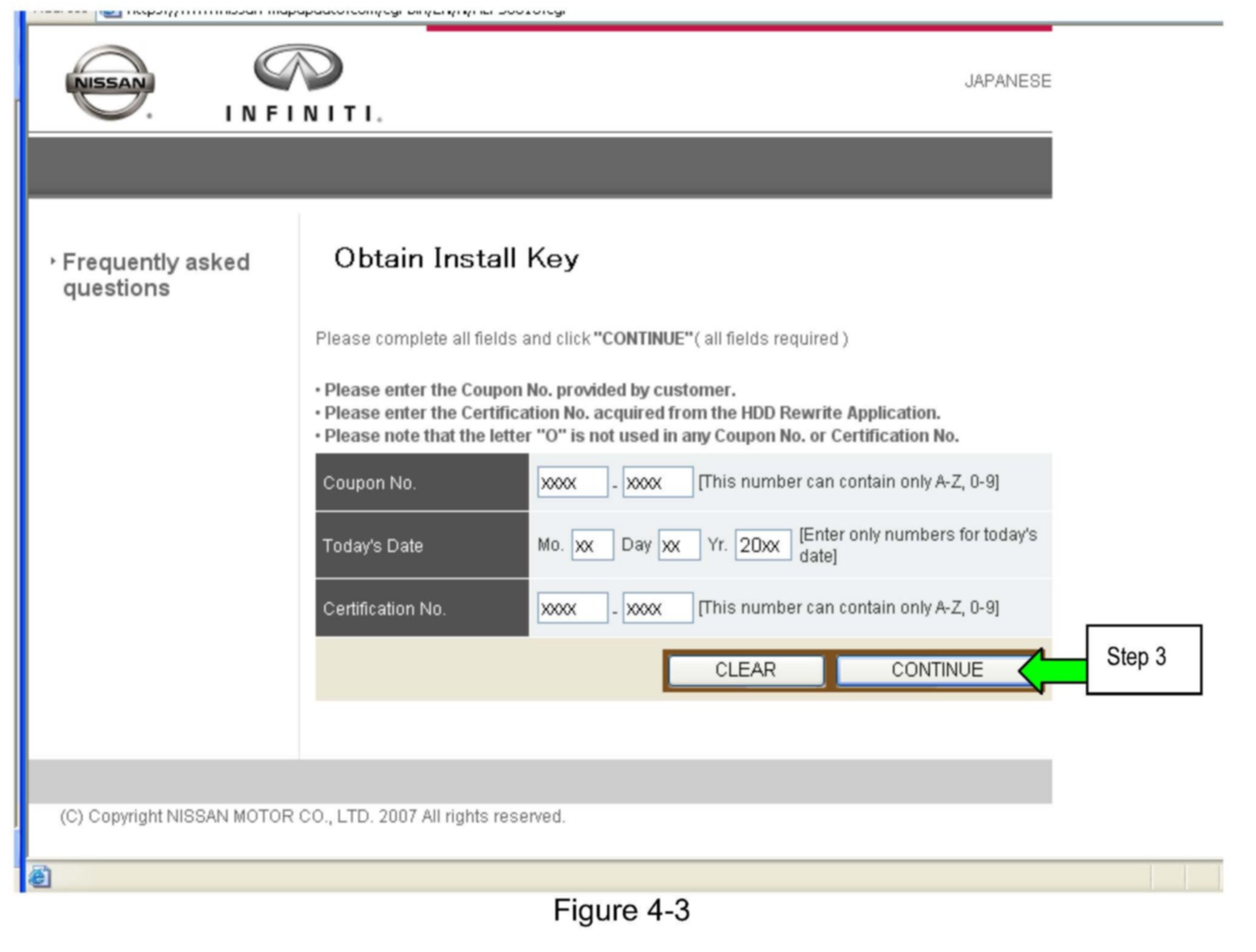

2. Enter the following numbers correctly (see Figure 4-3):

^ Coupon No. (Coupon No. purchased from NAVTEQ)

^ Todays Date

^ Certification No. (number generated from vehicle HDD navigation unit in Section 3)

3. Select CONTINUE

NOTE:
^ If you receive an error message "Invalid Coupon Code", please log on to another computer that is not a CONSULT PC and repeat steps 1 through 3.

^ After obtaining the install Key, please return to the original Consult PC that generated the certification code.

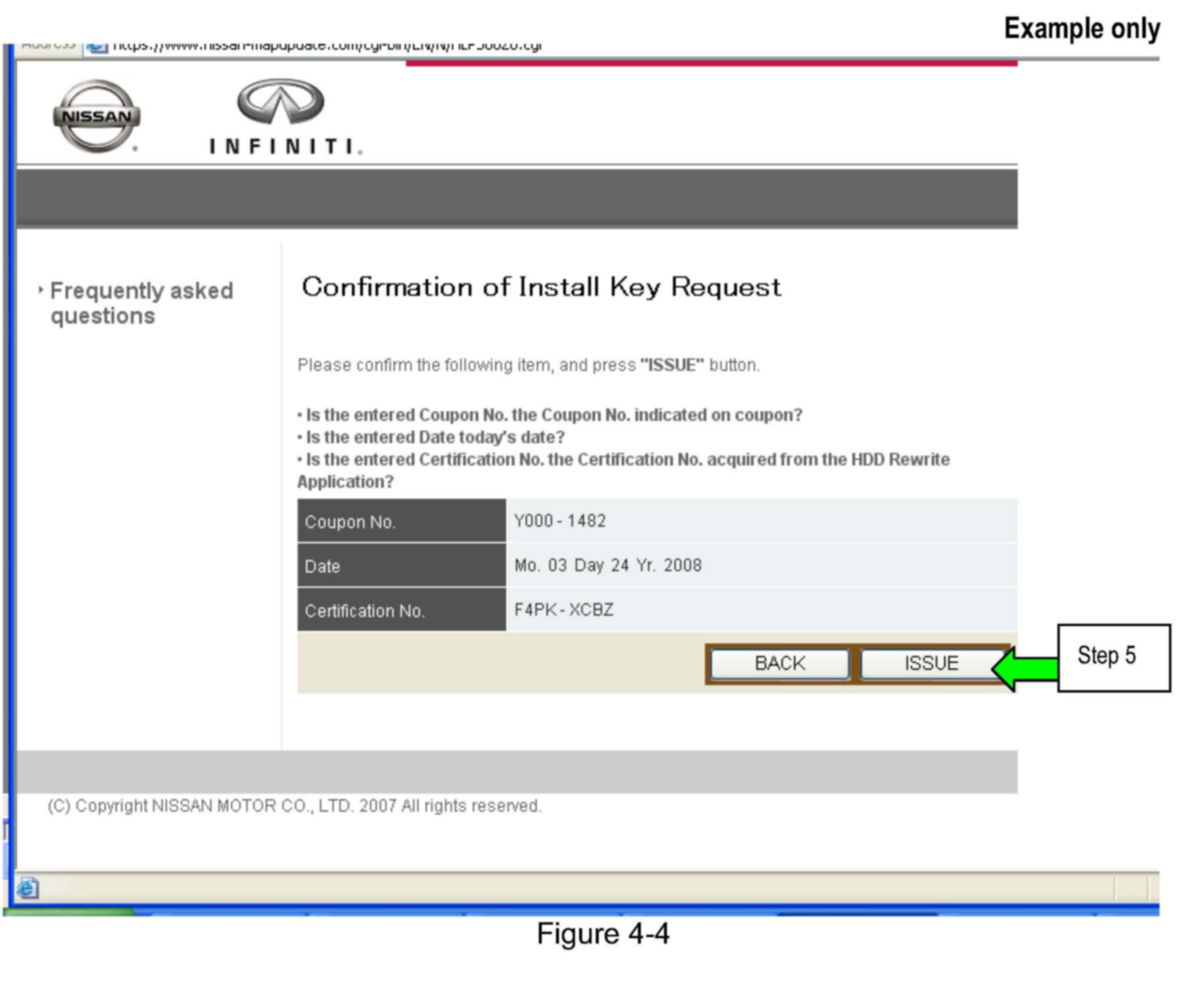

4. On the next screen (Confirmation of Install Key Request), confirm all the numbers you entered are correct.

5. Select ISSUE

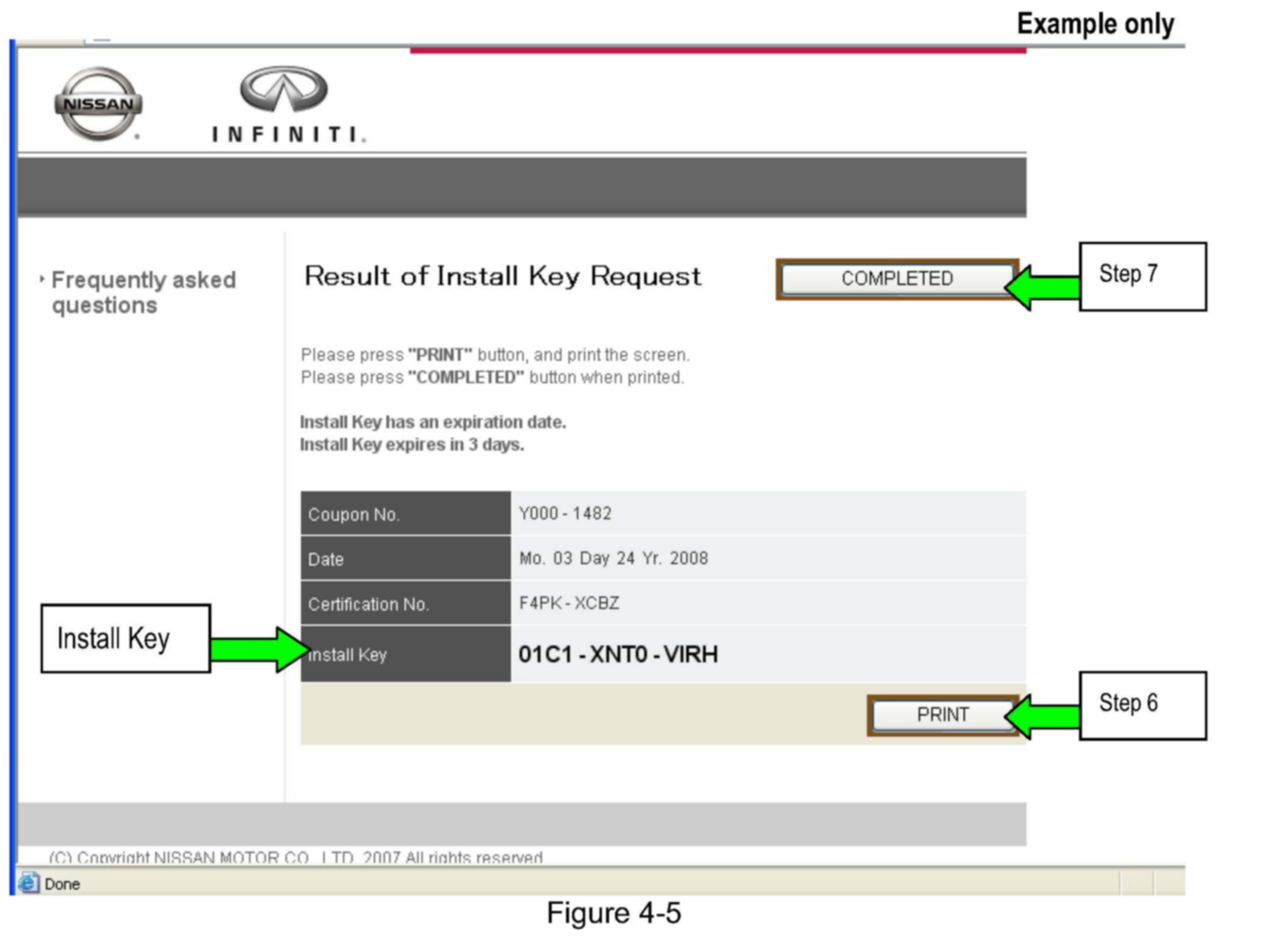

6. Select PRINT to print the screen, or write down the Install Key exactly.

7. After printing the screen or writing down the Install Key, select COMPLETED.
