Reference Value
>>
Automatic Drive Positioner Control Unit
Automatic Drive Positioner Control Unit
AUTOMATIC DRIVE POSITIONER CONTROL UNIT
Reference Value
TERMINAL LAYOUT

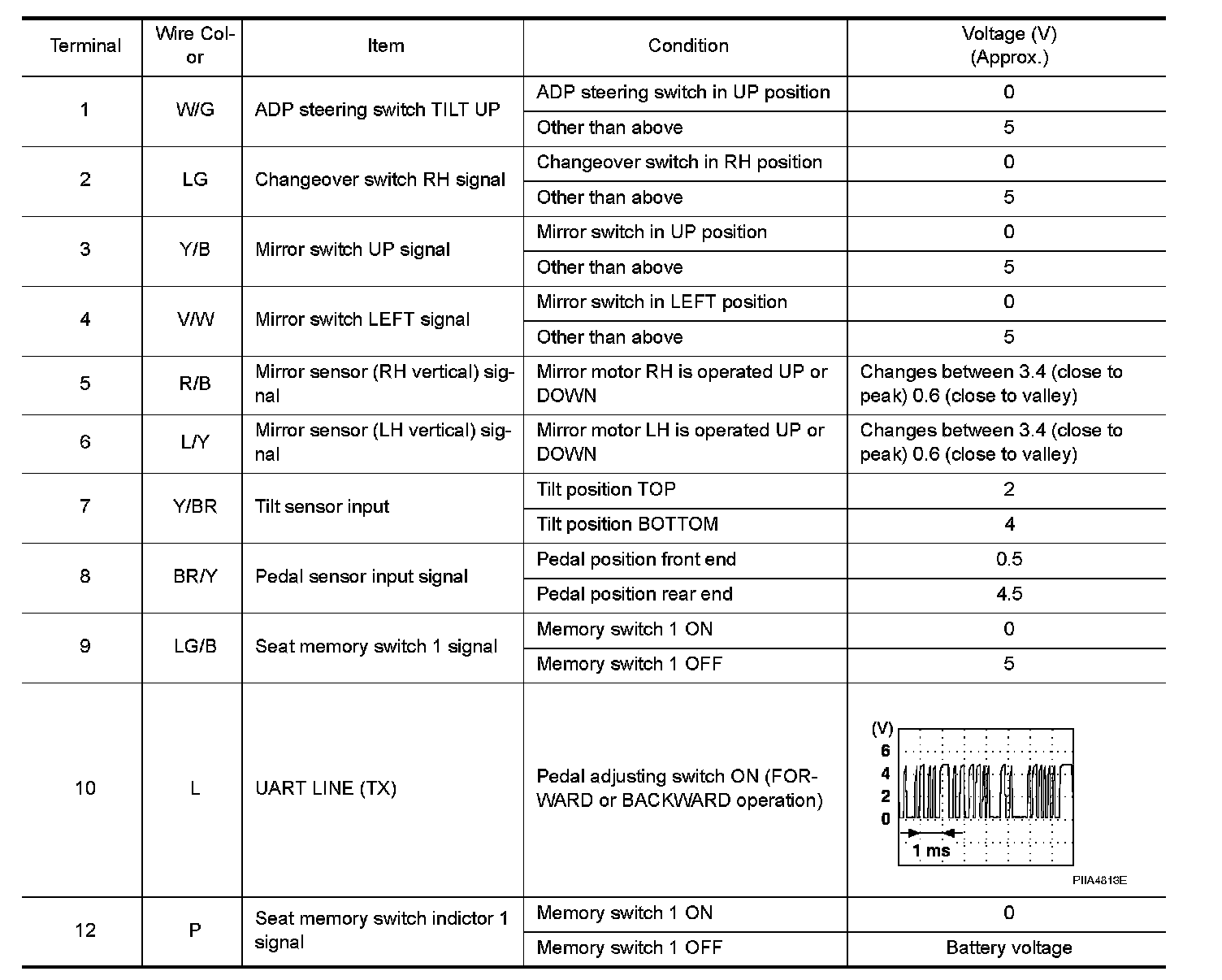

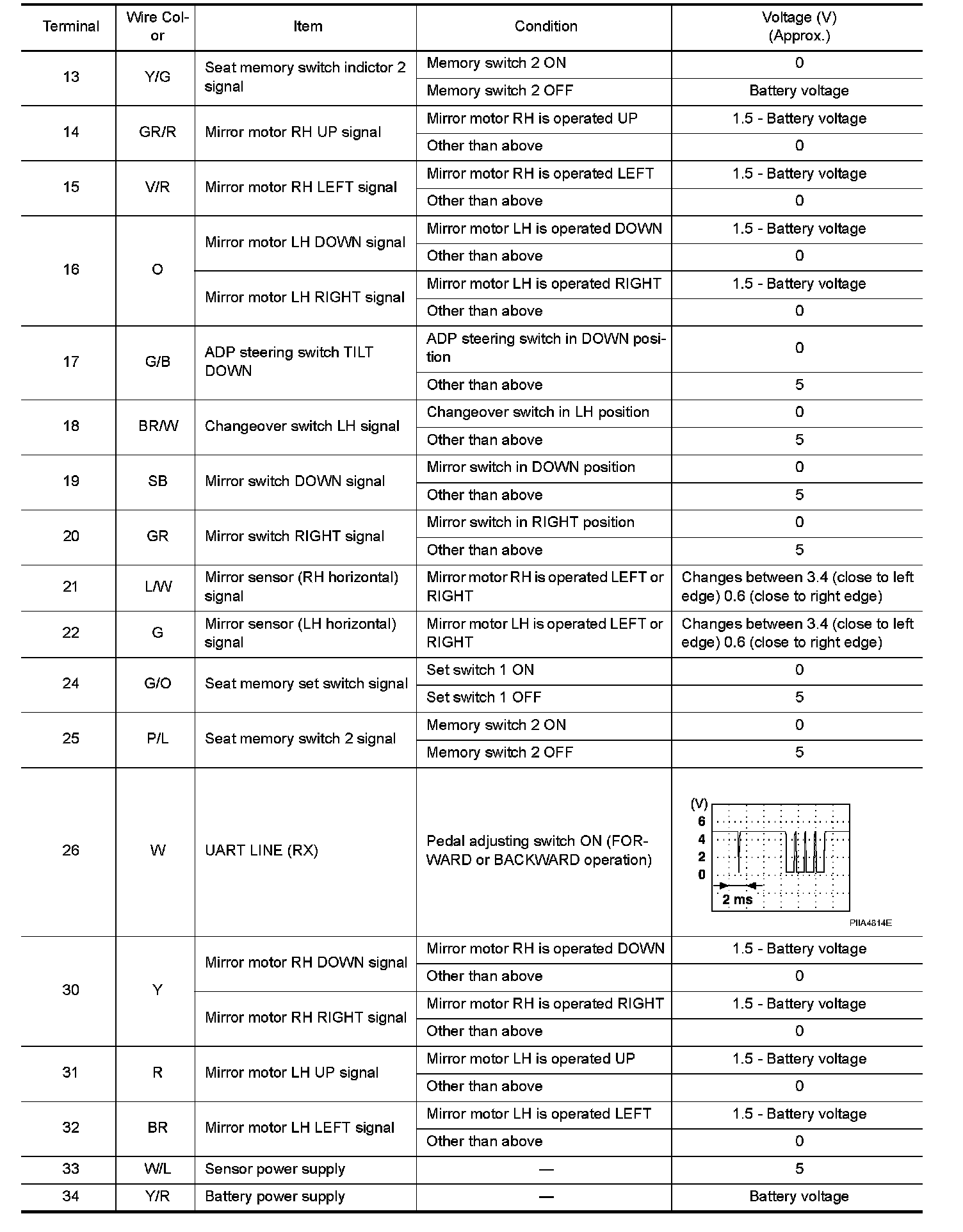

PHYSICAL VALUES
