Cruise Control: Service and Repair

ICC STEERING SWITCH


Removal and Installation







REMOVAL
1. Remove the steering wheel. Refer to Removal and Replacement.
2. Remove the steering wheel rear cover.

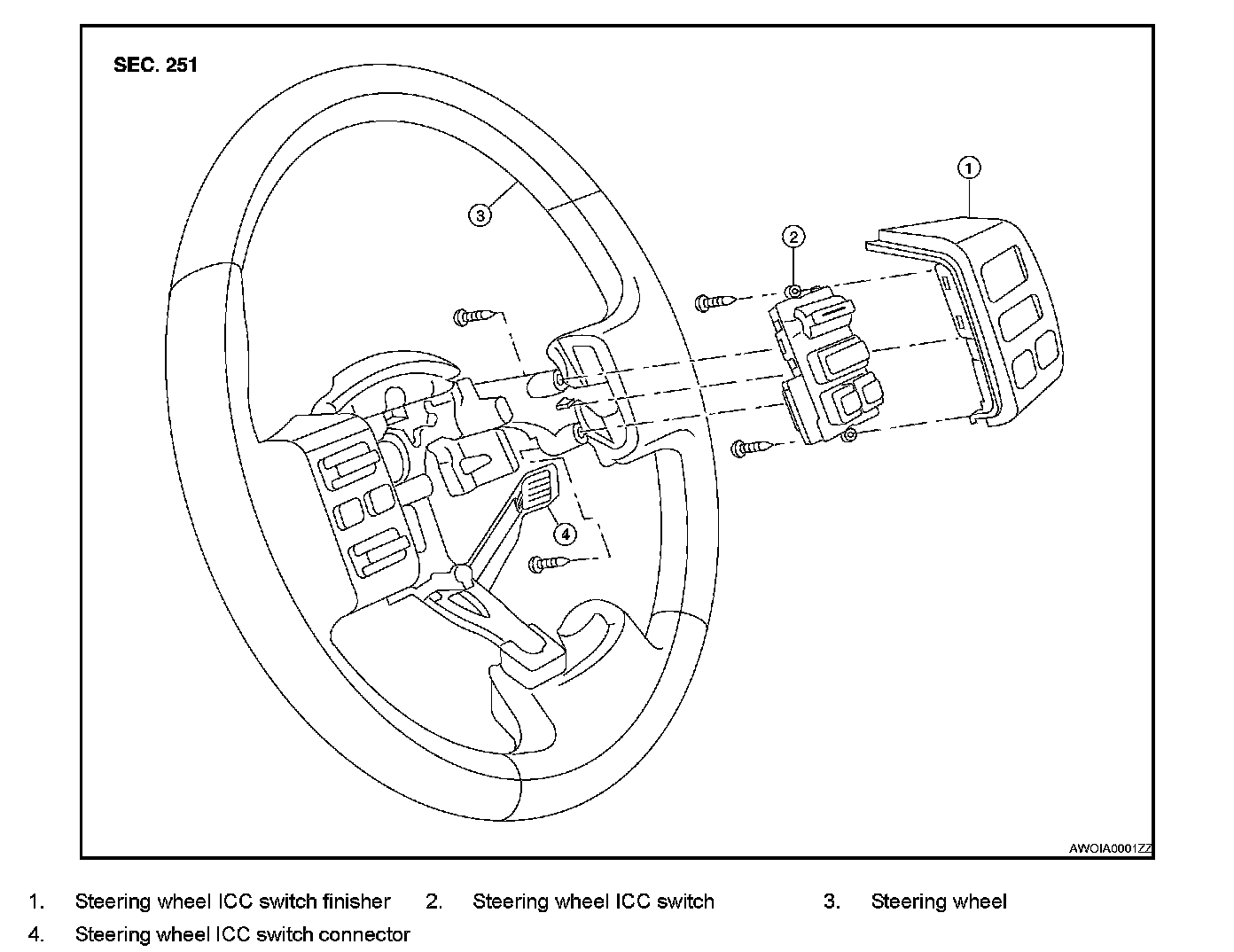

3. Pull the steering wheel ICC switch out of the steering wheel, disconnect the steering wheel ICC switch connector.
4. Remove the steering wheel ICC switch finisher screws and remove the steering wheel ICC switch finisher.

INSTALLATION
Installation is in the reverse order of removal.
