CONSULT-III Function (ICC)

DIAGNOSIS SYSTEM (ICC SENSOR INTEGRATED UNIT)


CONSULT-III Function (ICC)


DESCRIPTION

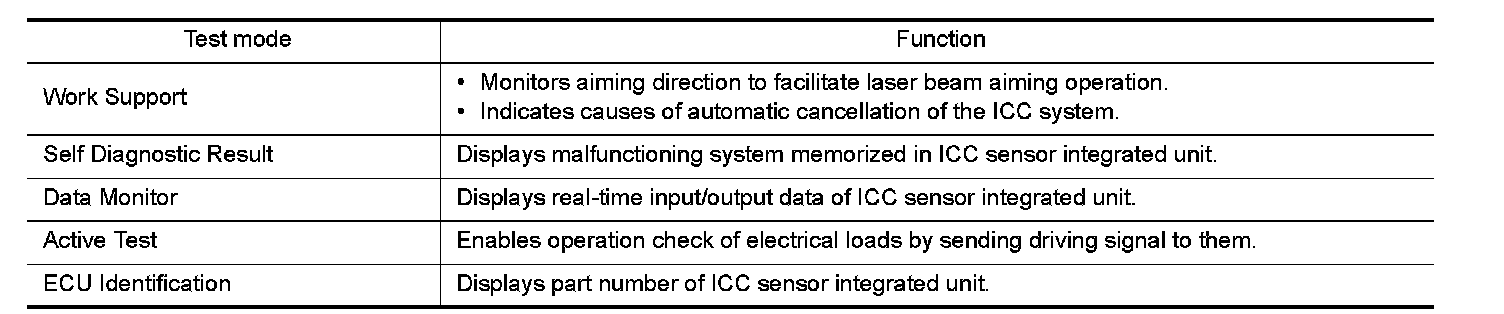

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

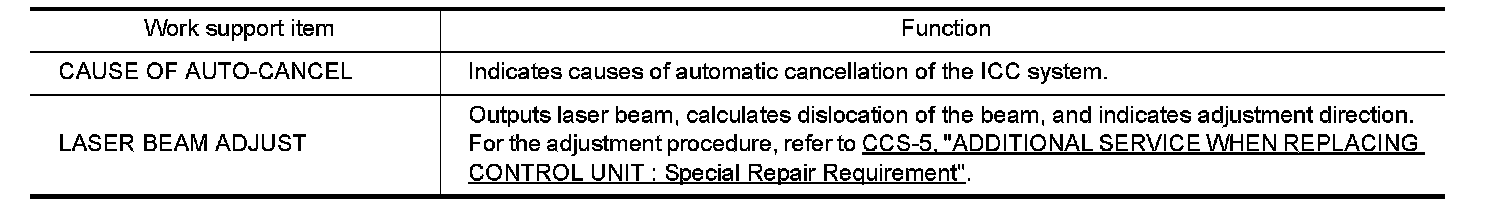

WORK SUPPORT

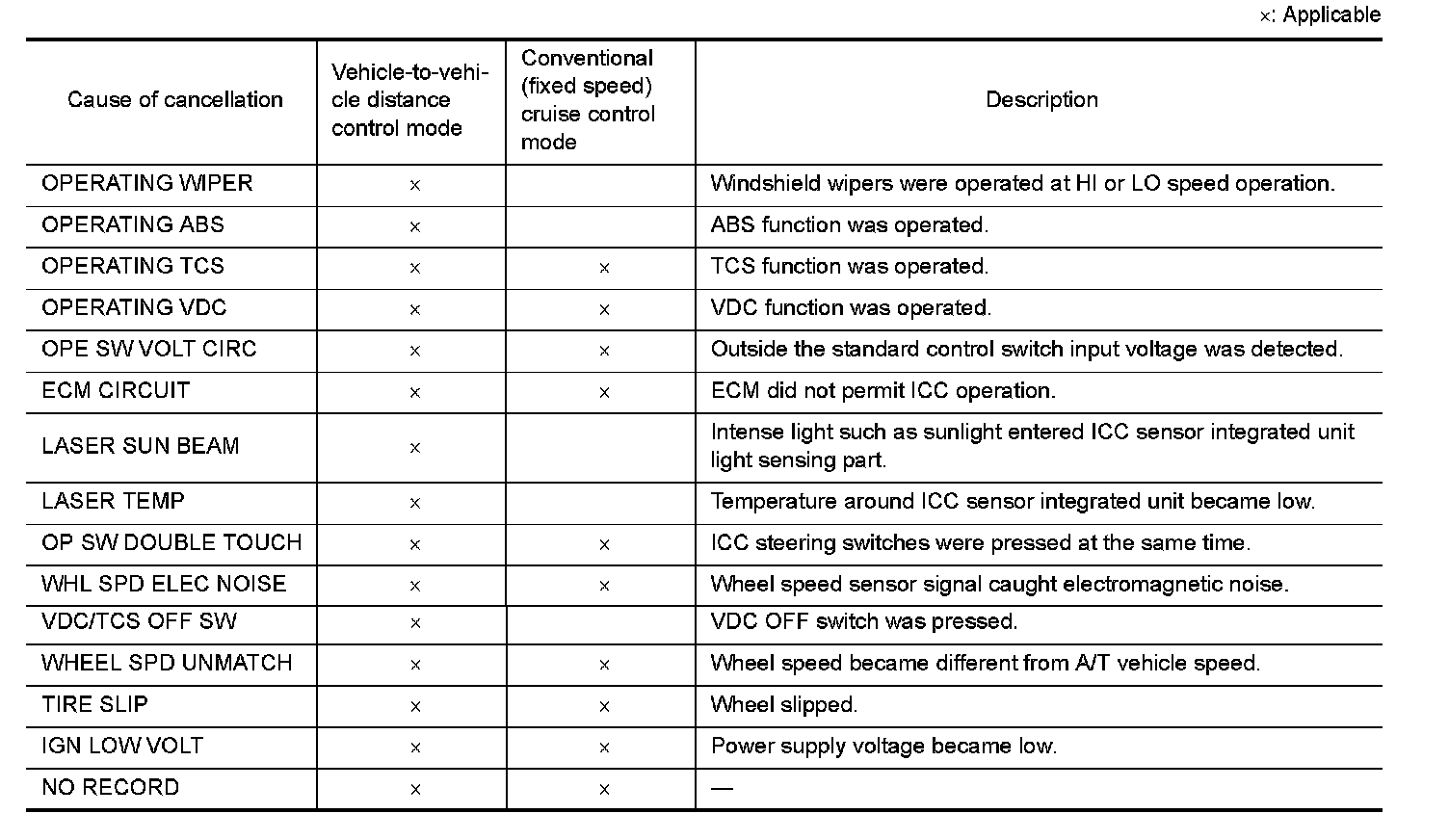

Cause of Auto-Cancel Display Item List






- Last five cancel (system cancel) causes are displayed.
- "CAUSE OF AUTO-CANCEL" displays times of ignition switch ON/OFF up to 254 maximum. 254 is kept though the number exceeds 254. The number returns to 0 when detecting the same cancellation causes.

SELF DIAGNOSTIC RESULT
For details, refer to Testing and Inspection.

NOTE:
"DTC RESULTS" and "TIME" are indicated on "Self Diagnostic Result". "TIME" is used as a reference data of diagnosis. It shows when malfunction is detected.
"TIME" shows the following.
- 0: malfunction is detected at present (from malfunction detection to ignition switch OFF).
CAN communication ([U1000], [U1010])
- 1 ~ 39: Displays when it is normal at present and finds malfunction in the past. It increases like
0 to1 to2...38 to39 after returning to the normal condition whenever IGN OFF to ON. If it is over 39, it is fixed to
39 until the self-diagnostic results are erased. It returns to 0 when malfunction is detected again in the process.
Other than CAN communication (other than [U1000], [U1010])
- 1 ~ 49: Displays when it is normal at present and finds malfunction in the past. It increases like
0 to1 to2...48 to49 after returning to the normal condition whenever IGN OFF to ON. If it is over 49, it is fixed to
49 until the self-diagnostic results are erased. It returns to 0 when malfunction is detected again in the process.

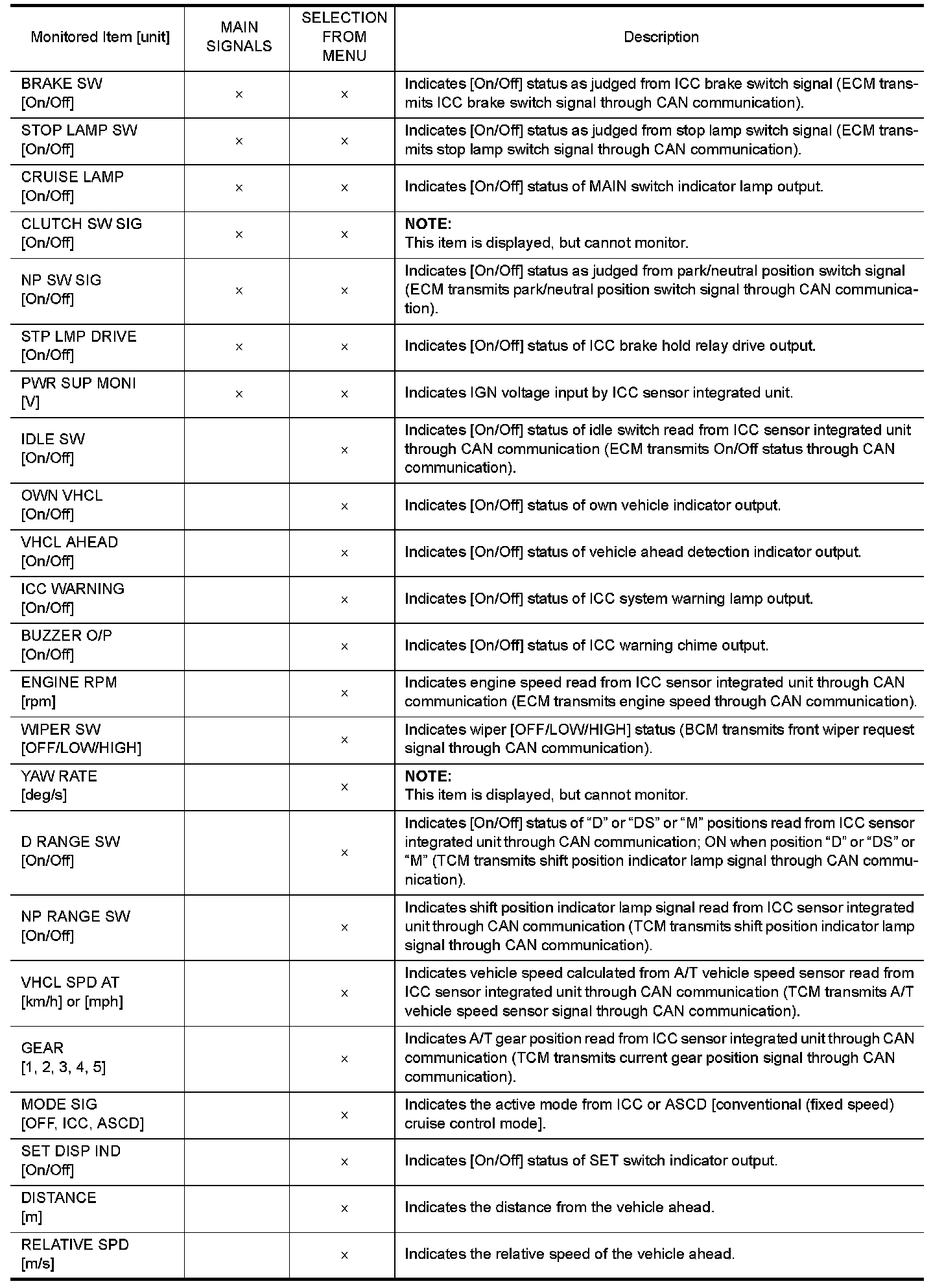

DATA MONITOR

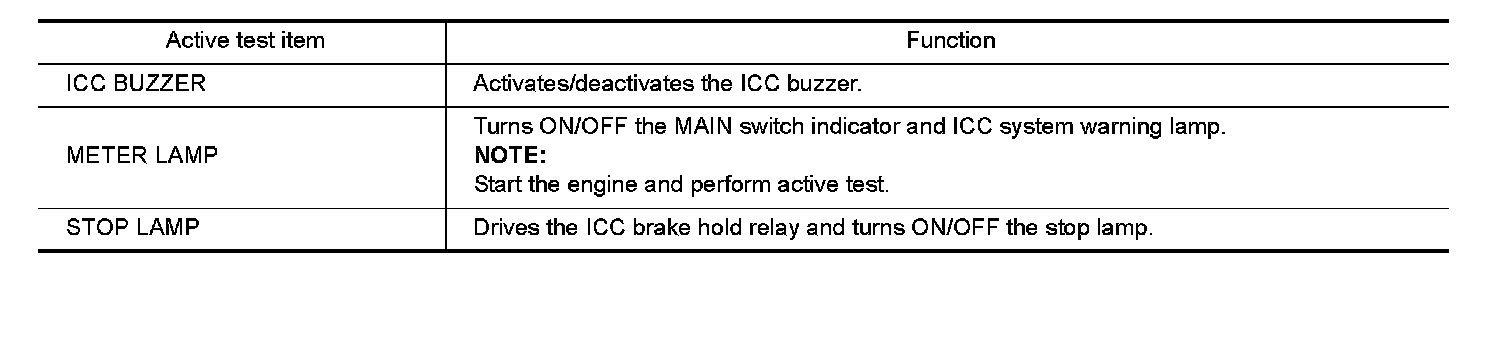

ACTIVE TEST






NOTE:
- Never perform the active test while driving.
- "Active Test" cannot be started while ICC system warning lamp illuminates.

ECU IDENTIFICATION
Displays the part number of the ICC sensor integrated unit.
