Changing Differential Gear Oil

DIFFERENTIAL GEAR OIL


Changing Differential Gear Oil


DRAINING
1. Stop the engine.
2. Remove the drain plug from the front final drive assembly to drain the differential gear oil.
3. Install the drain plug with sealant applied on the threads to the front final drive assembly. Tighten to the specified torque. Refer to Front Final Drive M205.
- Use High Performance Thread Sealant or equivalent. Refer to Fluid Type Specifications.

FILLING
1. Remove the filler plug from the front final drive assembly.

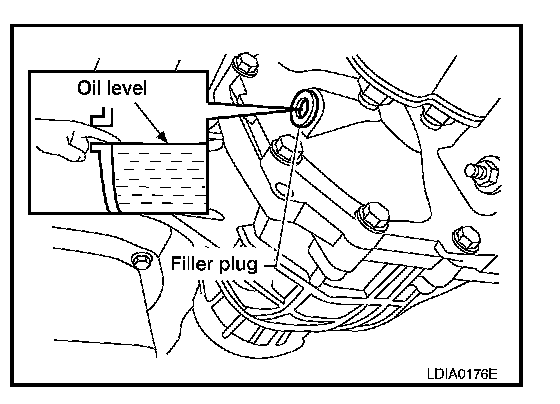

2. Fill the front final drive assembly with new differential gear oil until the level reaches the specified level near the filler plug hole.

Differential gear oil grade and capacity : Refer to MA-10, "Fluids and Lubricants".

3. Install the filler plug with sealant applied on the threads to the front final drive assembly. Tighten to the specified torque. Refer to Front Final Drive M205.
- Use High Performance Thread Sealant or equivalent. Refer to
Fluid Type Specifications.
