Scan Tool Testing and Procedures
TROUBLE DIAGNOSIS

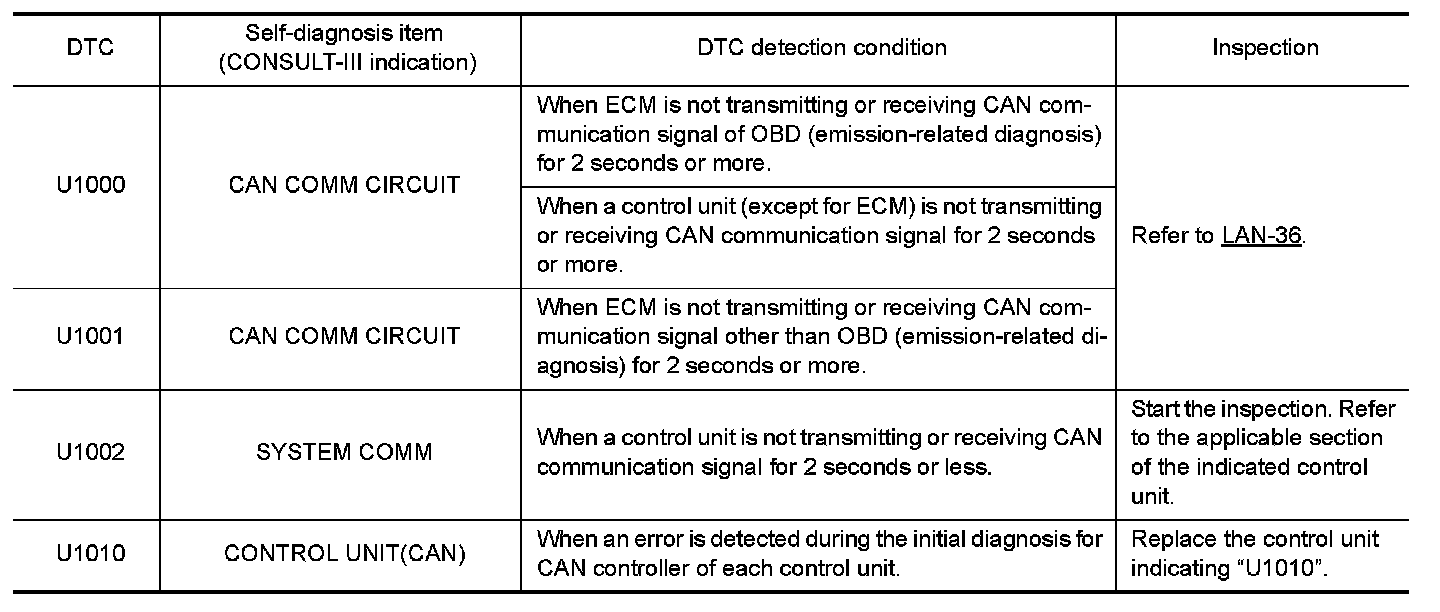

CAN Diagnostic Support Monitor
Use "CAN DIAG SUPPORT MNTR" for detecting the root cause.
MONITOR ITEM LIST (CONSULT-III)

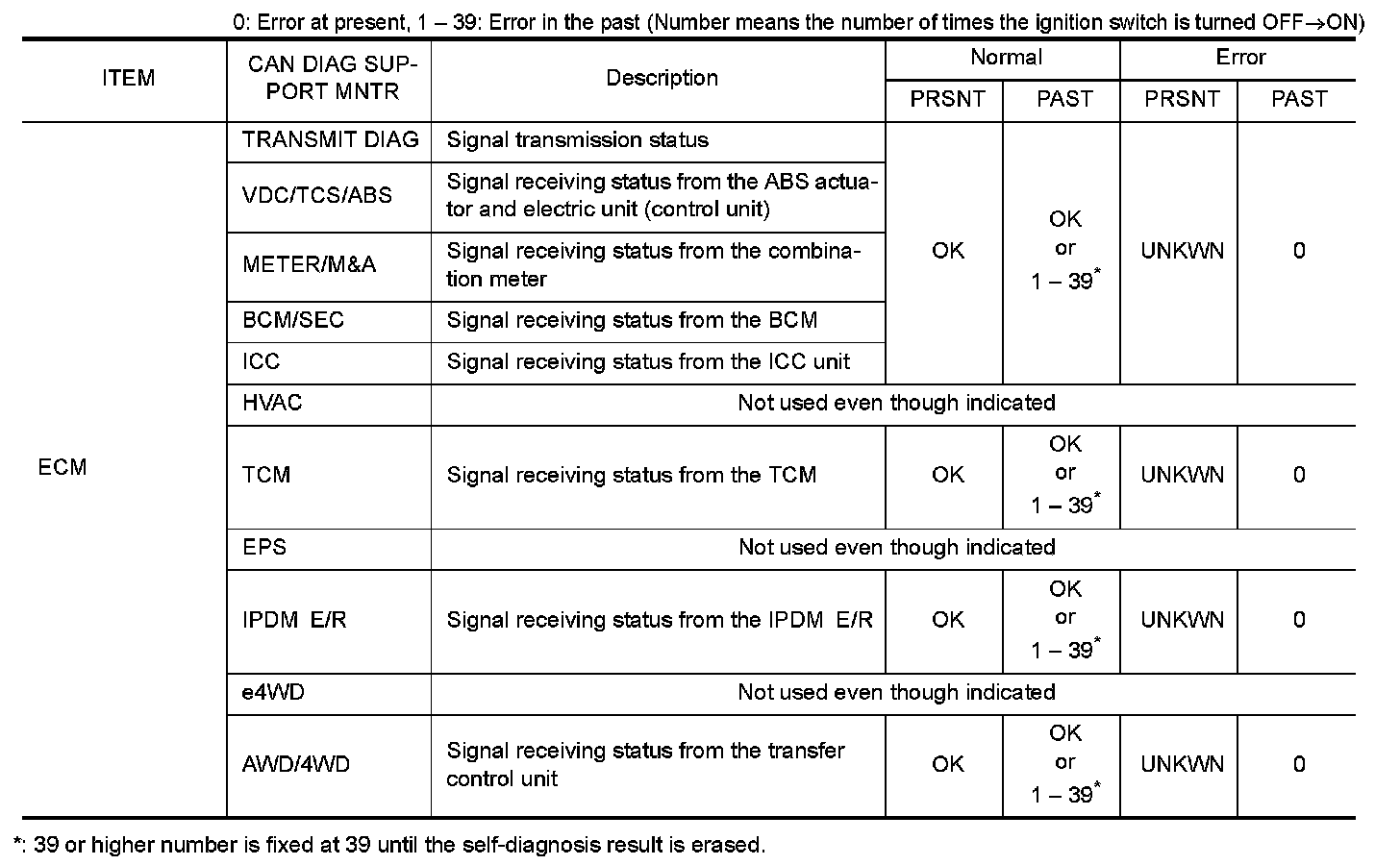

ECM
TCM
NOTE:
Replace the unit when "NG" is indicated on the "INITIAL DIAG".

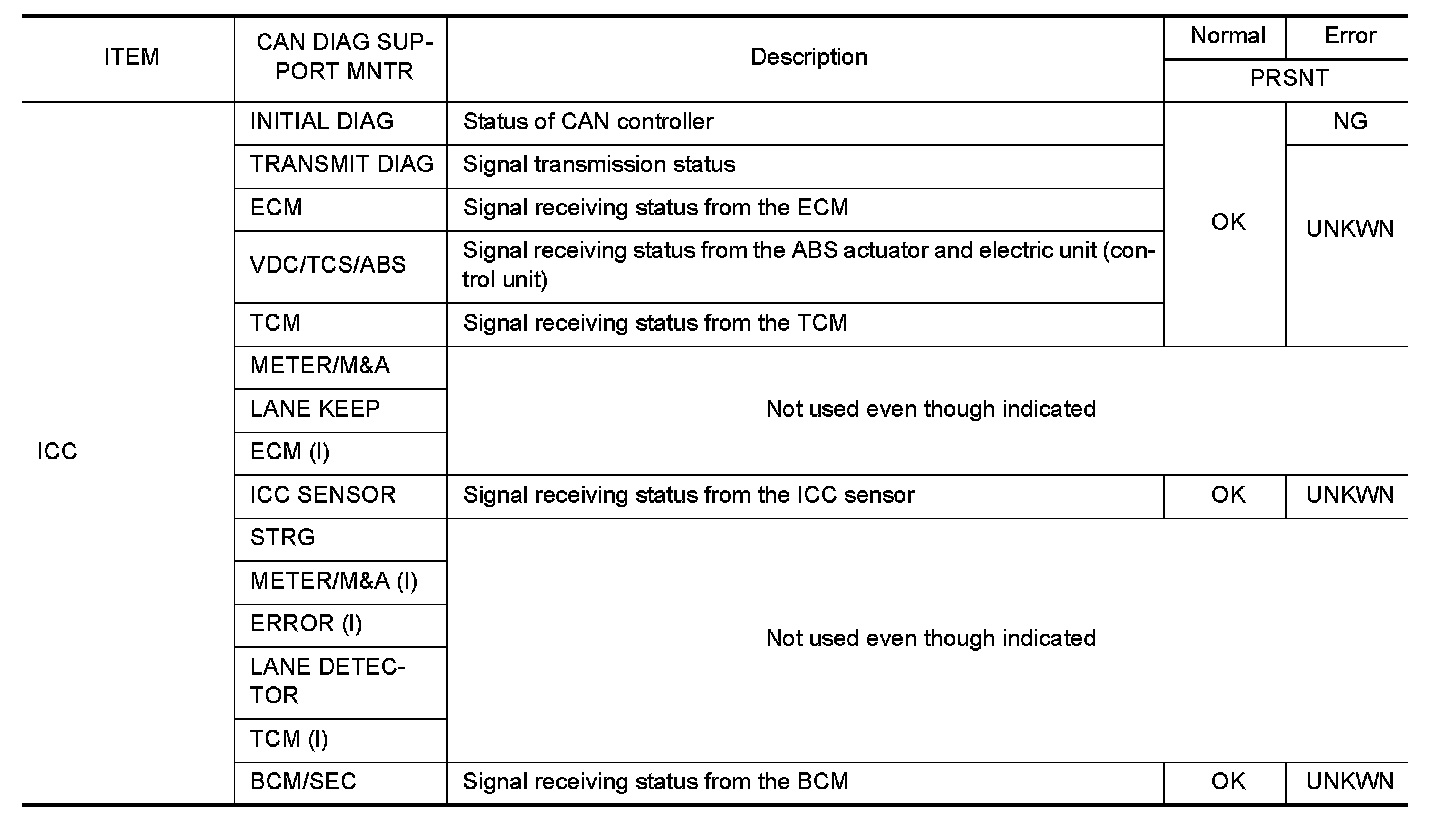

ICC Unit
NOTE:
Replace the unit when "NG" is indicated on the "INITIAL DIAG".

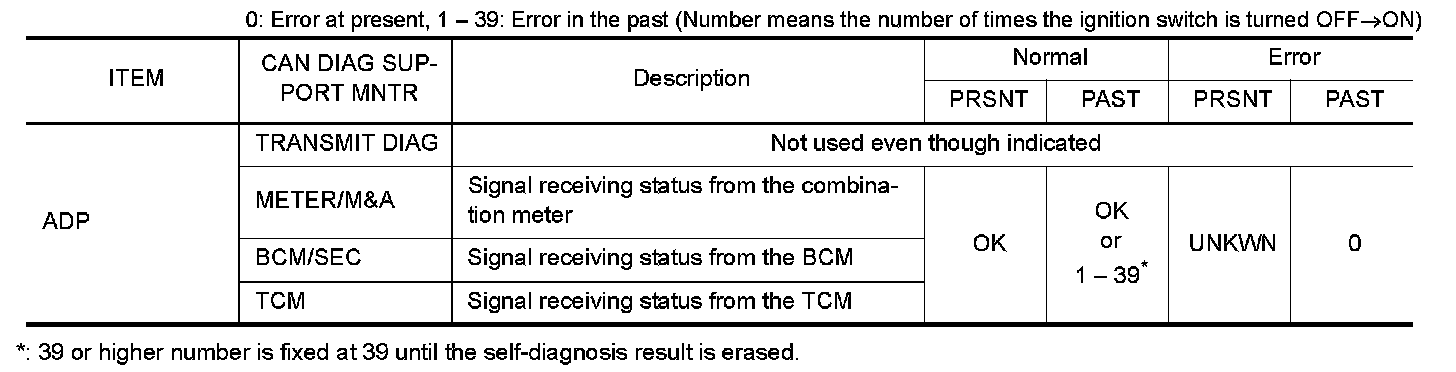

Driver Seat Control Unit

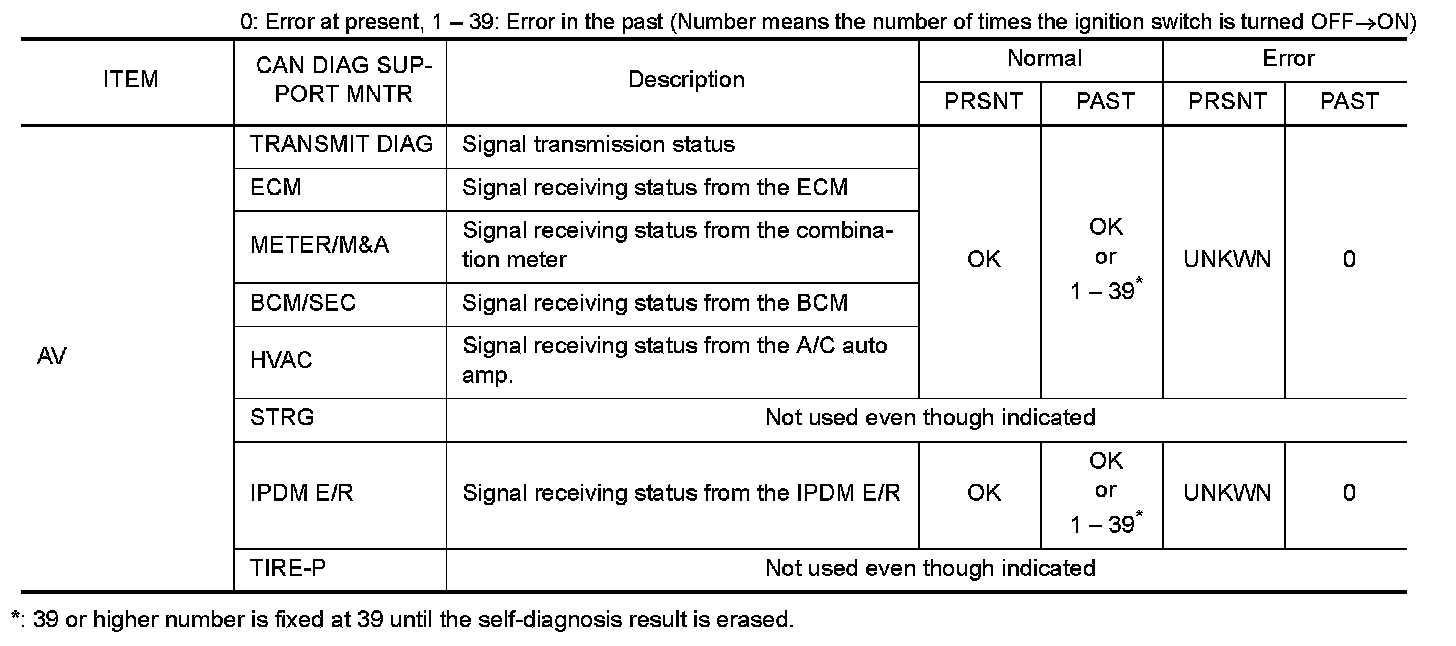

AV Control Unit

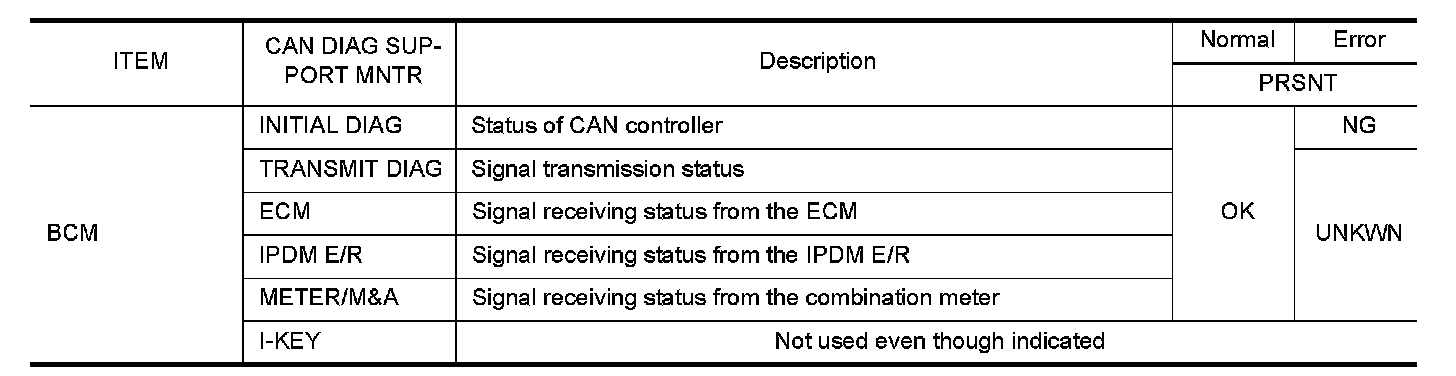

BCM
NOTE:
Replace the unit when "NG" is indicated on the "INITIAL DIAG".

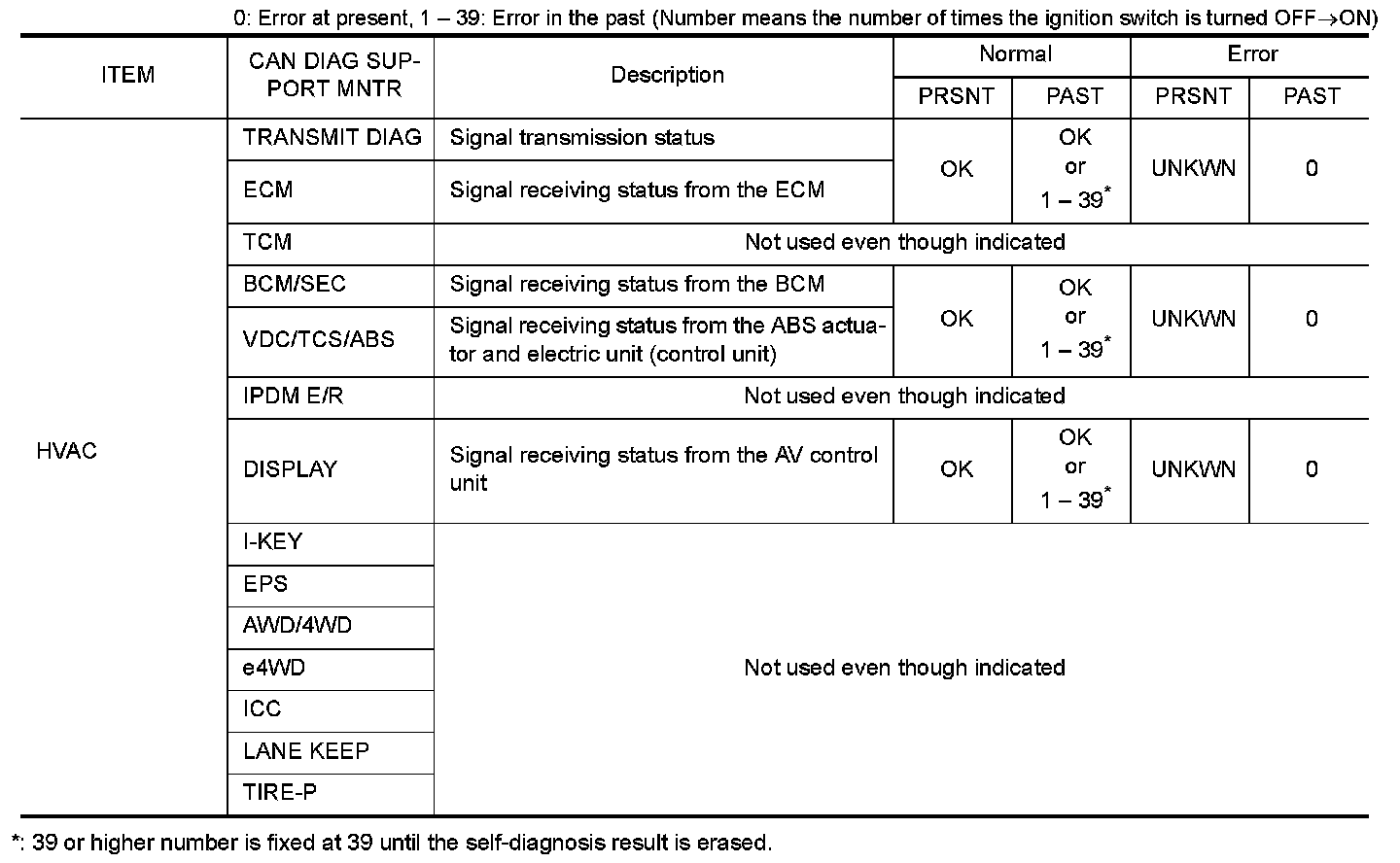

A/C Auto Amp.

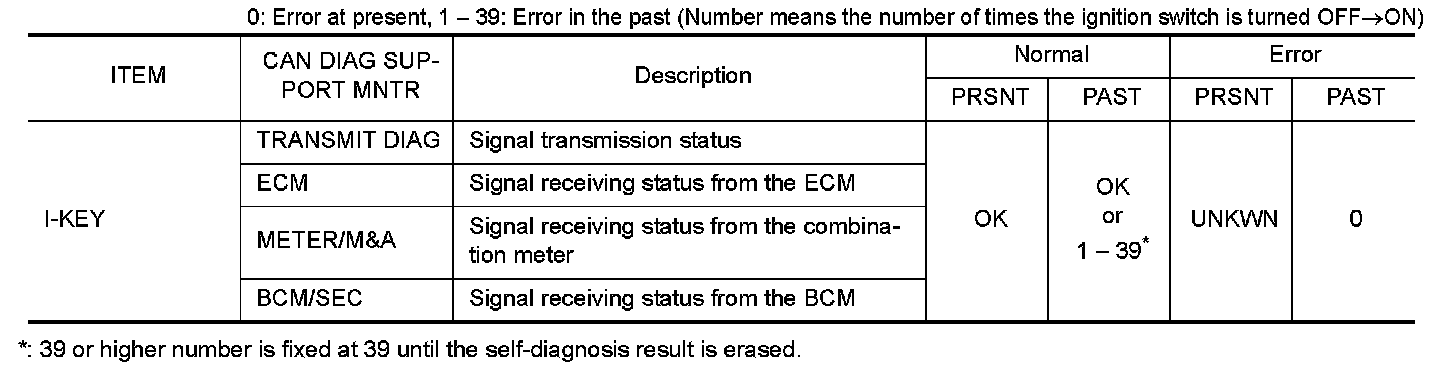

Intelligent Key Unit

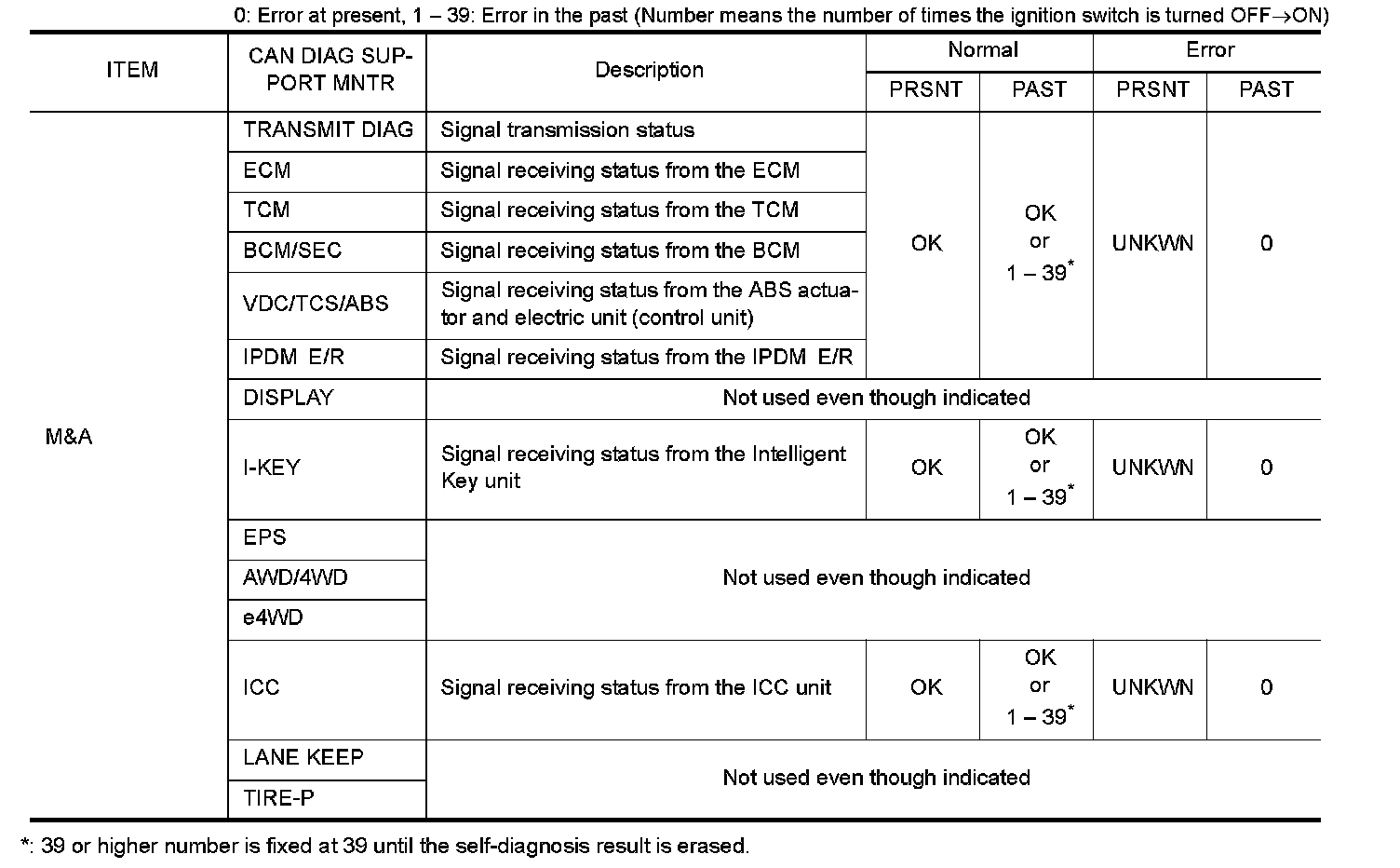

Combination Meter

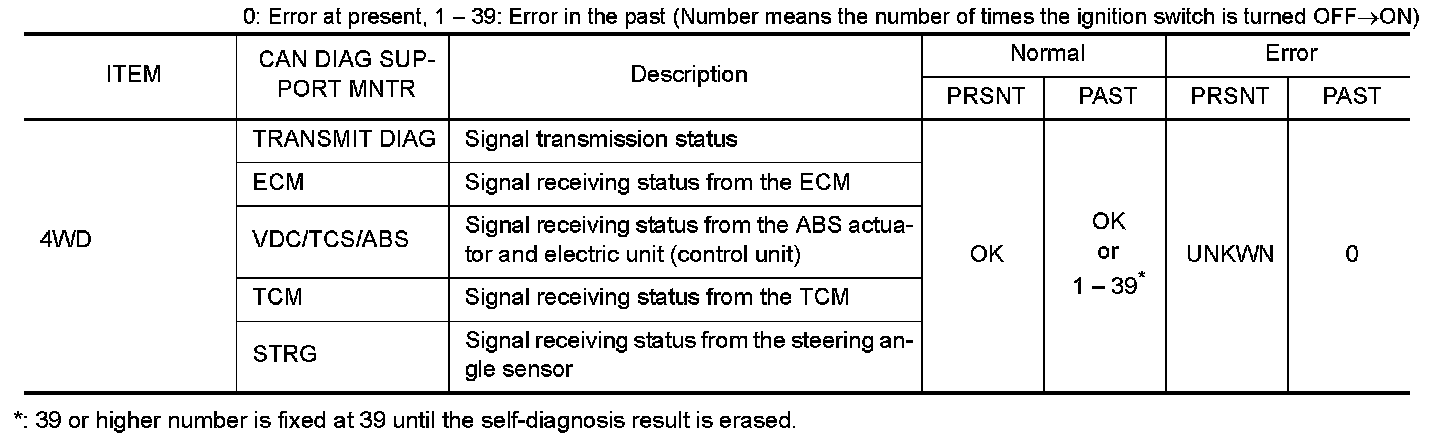

Transfer Control Unit

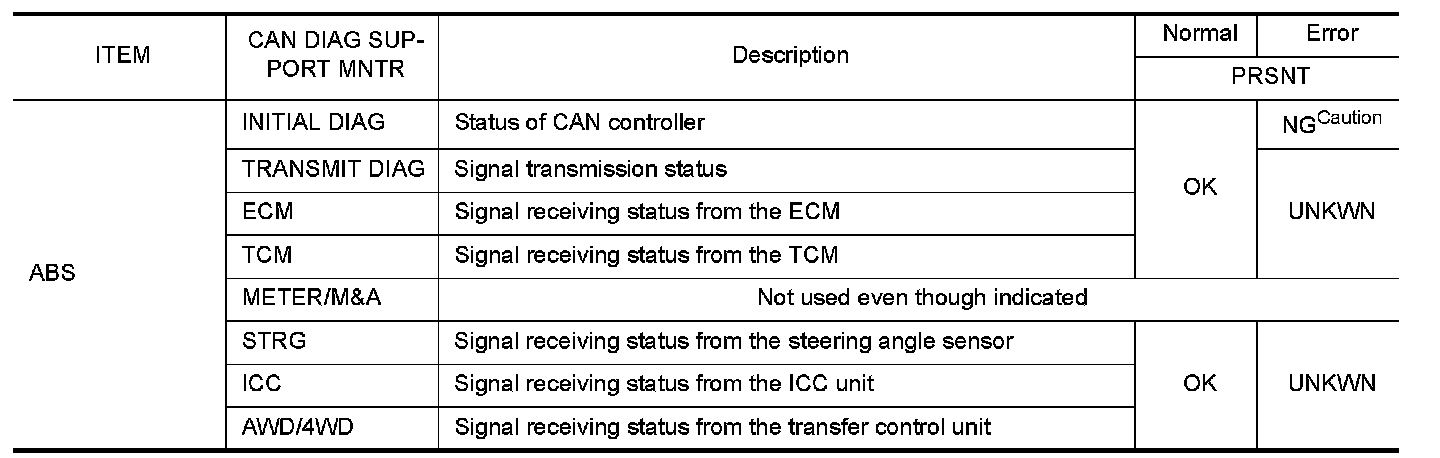

ABS Actuator and Electric Unit (Control Unit)

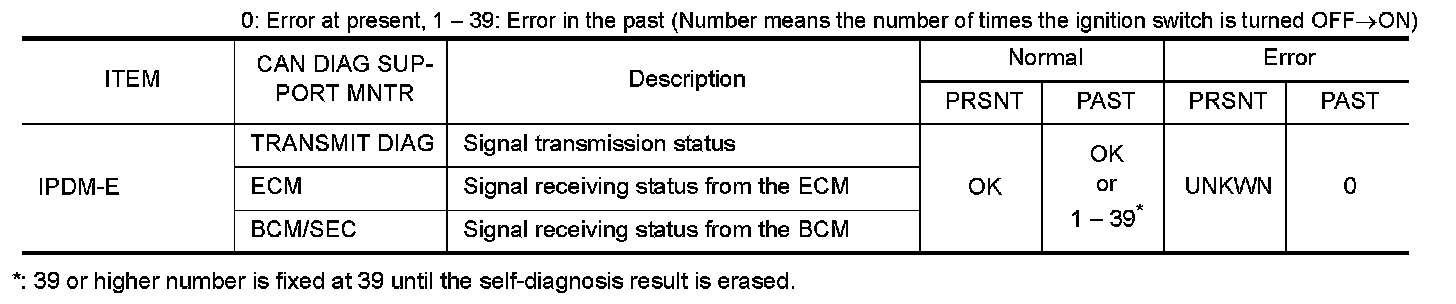

IPDM E/R
