CONSULT-III Function (Engine)

ON BOARD DIAGNOSTIC (OBD) SYSTEM


CONSULT-III Function (ENGINE)

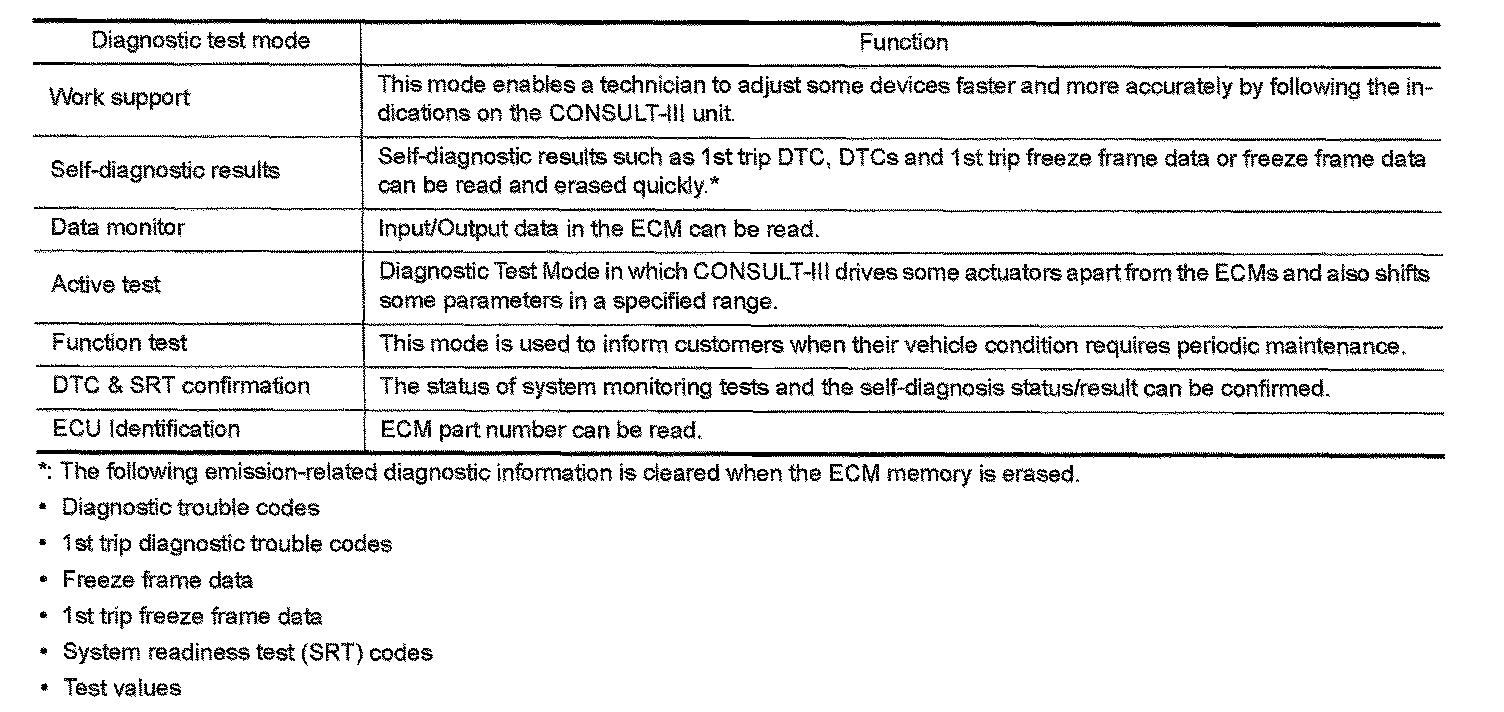

FUNCTION

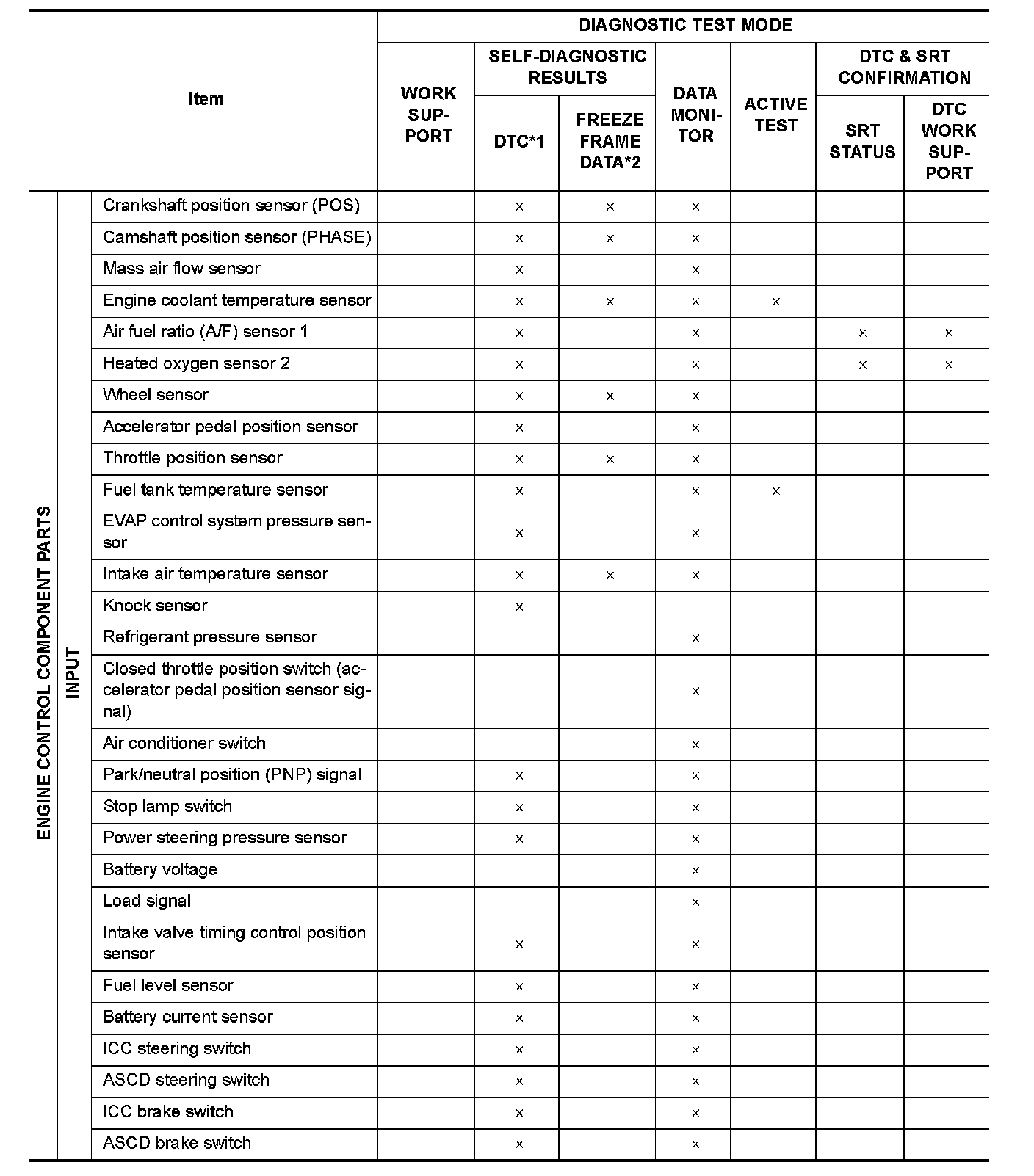

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION











WORK SUPPORT MODE

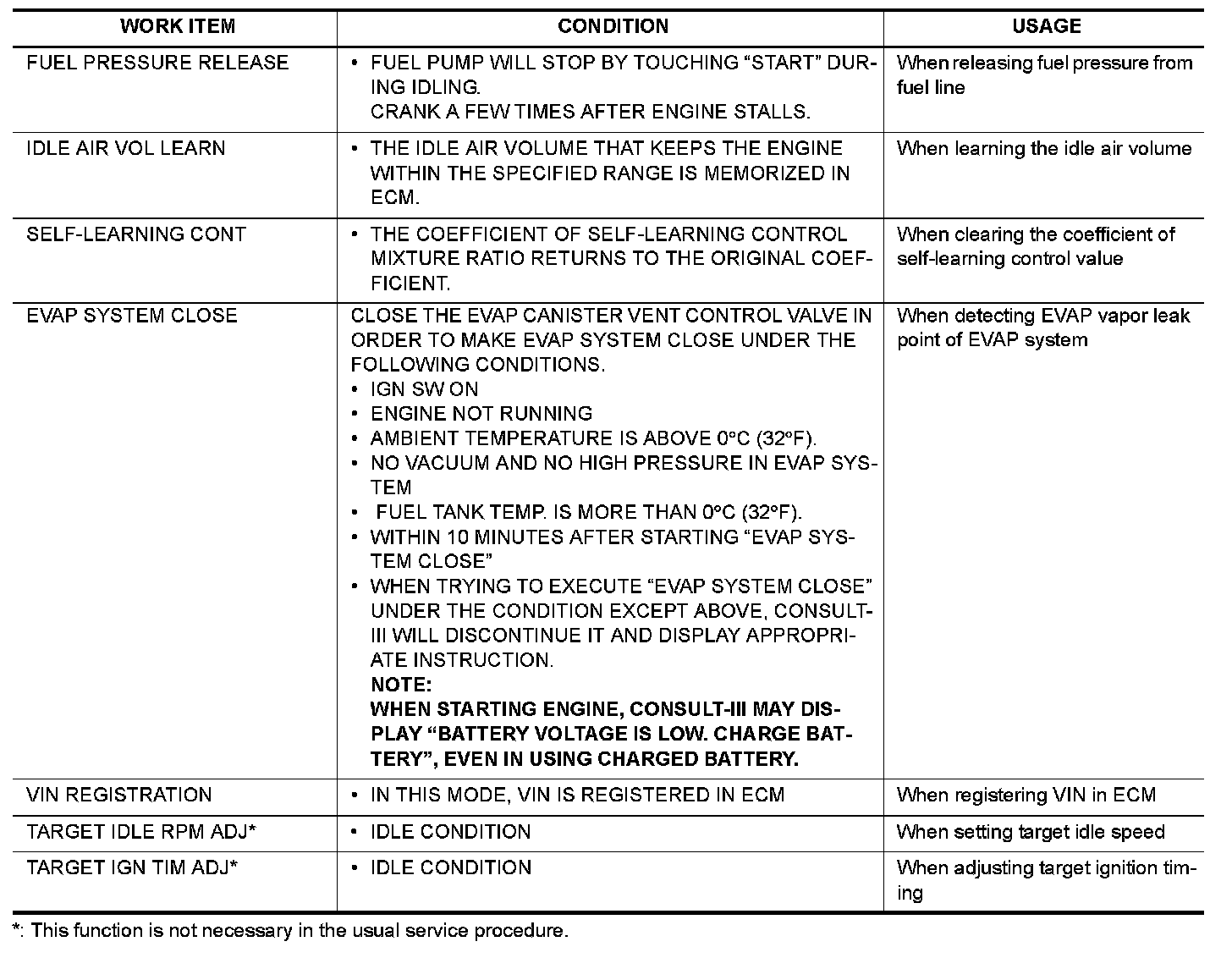

Work Item





SELF-DIAG RESULTS MODE

Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to Testing and Inspection.

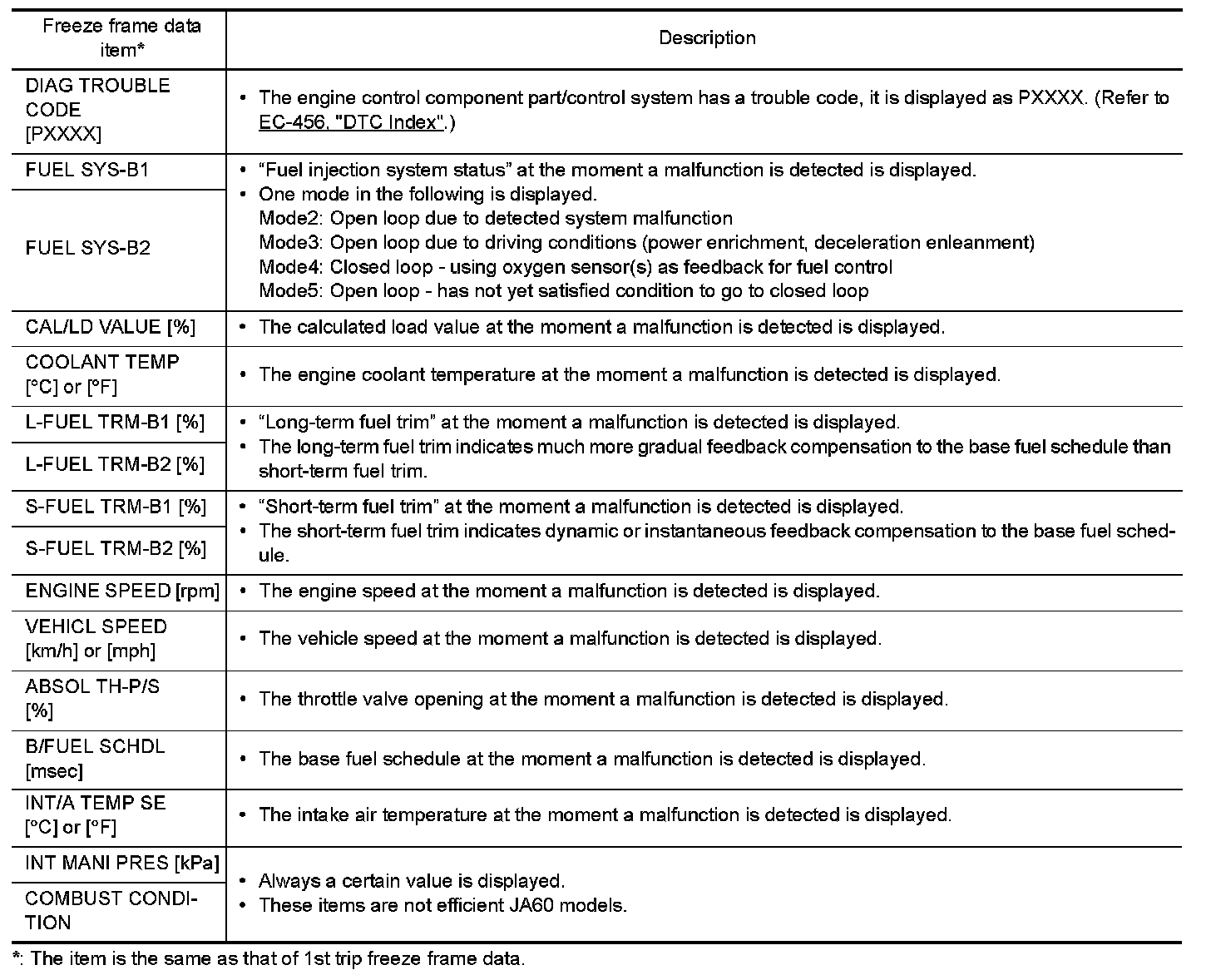

Freeze Frame Data and 1st Trip Freeze Frame Data





DATA MONITOR MODE

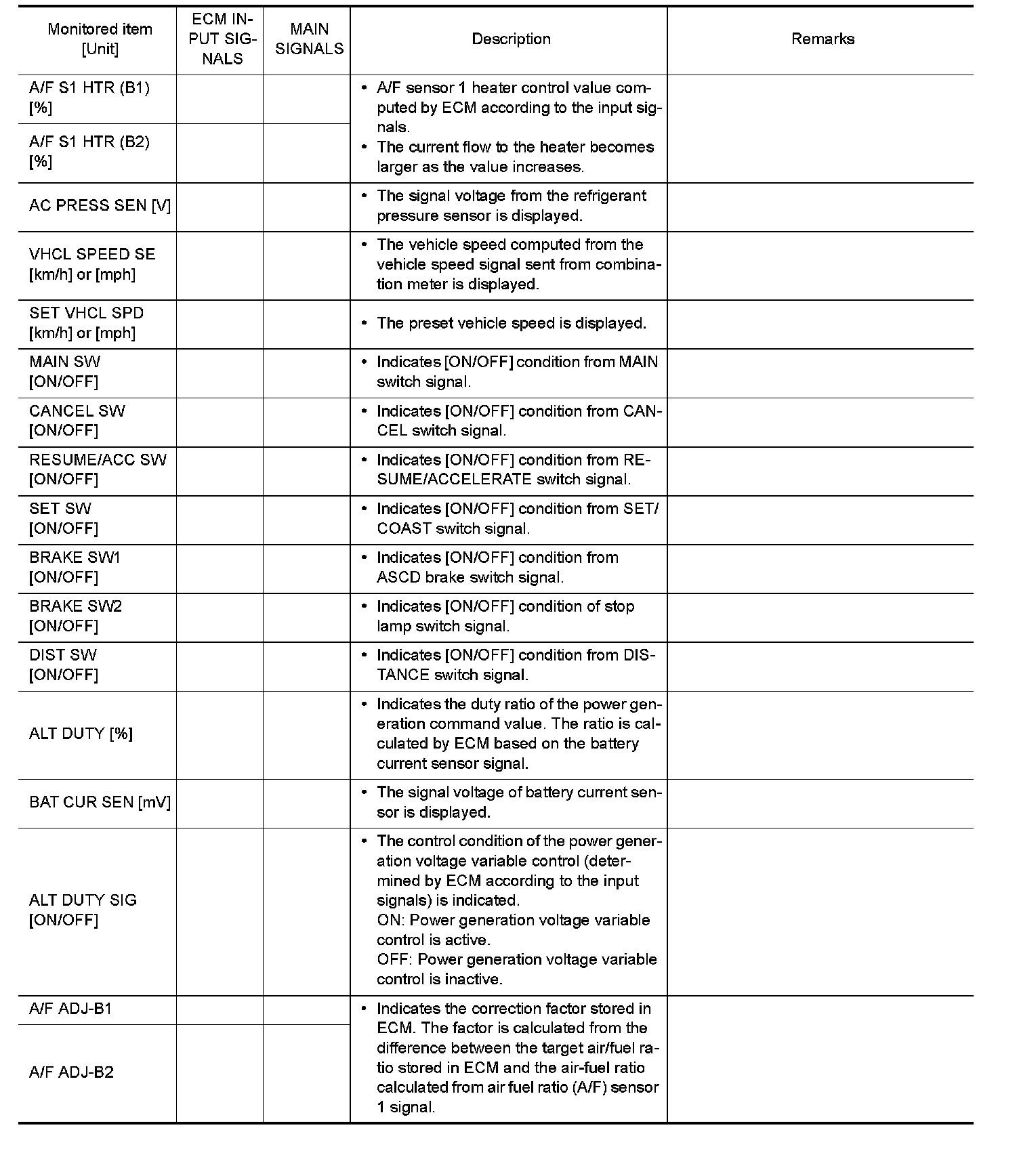

Monitored Item




















NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.

ACTIVE TEST MODE

Test Item






DTC and SRT CONFIRMATION MODE

SRT STATUS Mode
For details, refer to Testing and Inspection.

SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

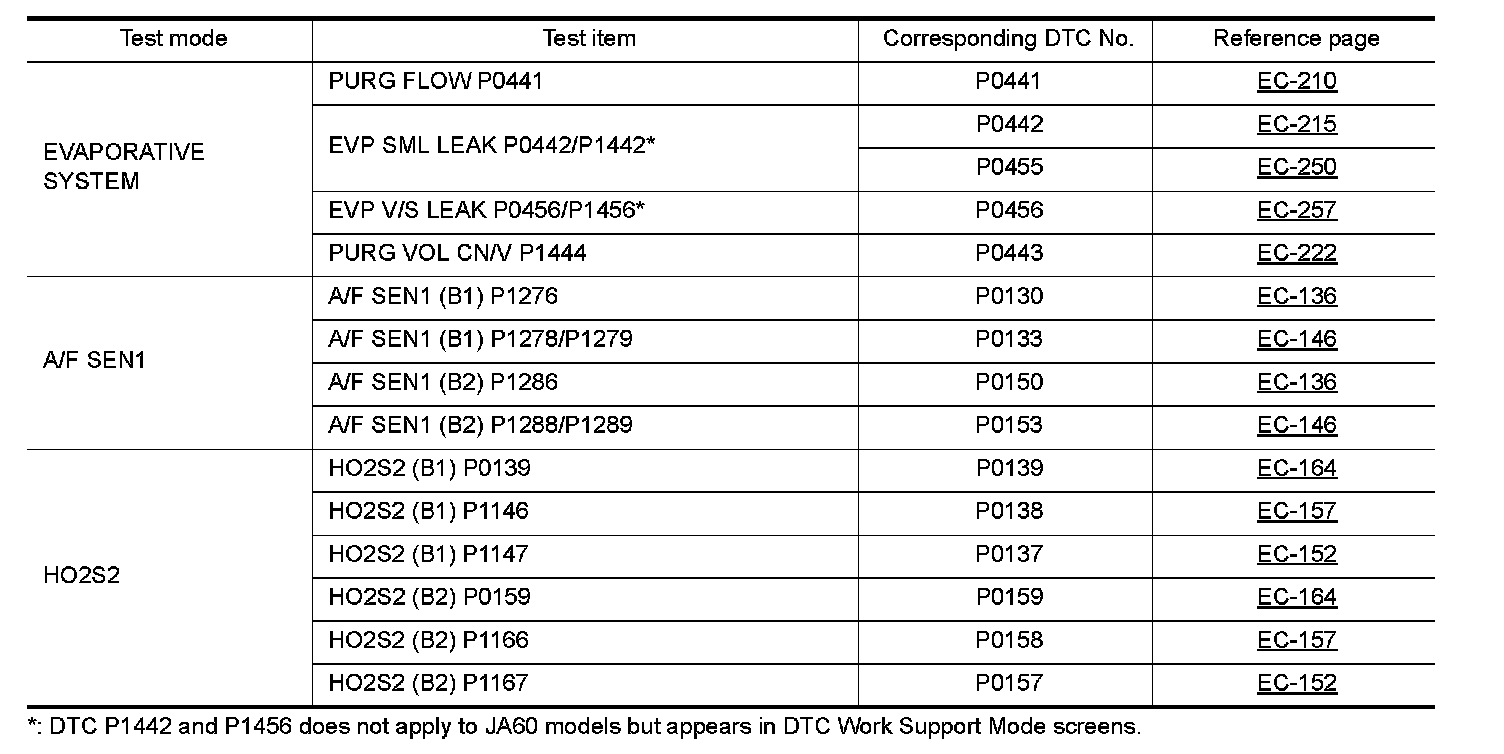

DTC WORK SUPPORT Mode
