System Specifications





SERVICE DATA AND SPECIFICATIONS (SDS)


Standard and Limit


ENGINE COOLANT CAPACITY (APPROXIMATE)

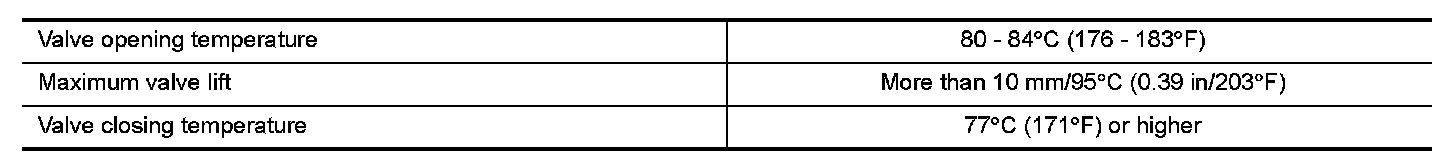

THERMOSTAT

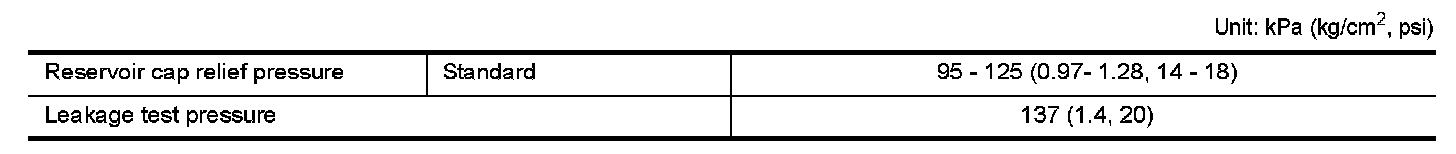

RADIATOR
