Removal and Installation

HOOD

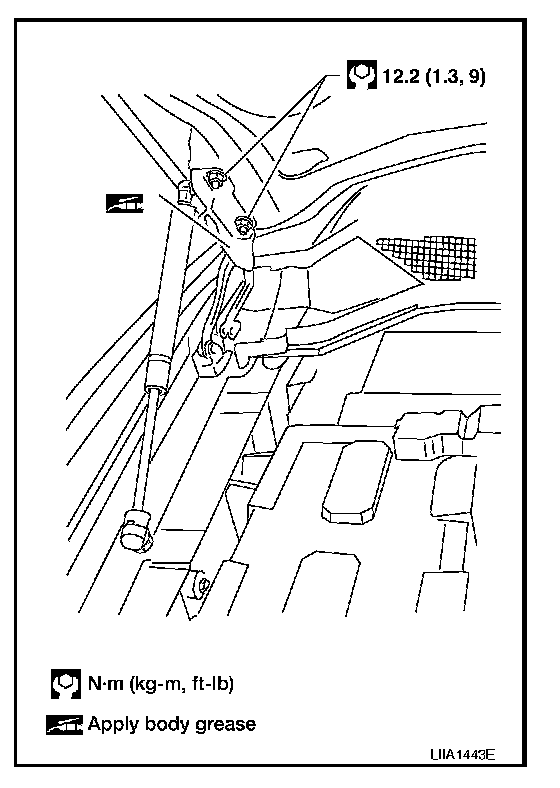

Removal and Installation of Hood Assembly





1. Support the hood striker with proper material to prevent it from falling.

WARNING:
Body injury may occur if no supporting rod is holding the hood open when removing the damper stay.
2. Remove the hinge nuts from the hood to remove the hood assembly.

CAUTION:
Operate with two workers, because of its heavy weight.
Installation is in the reverse order of removal.
