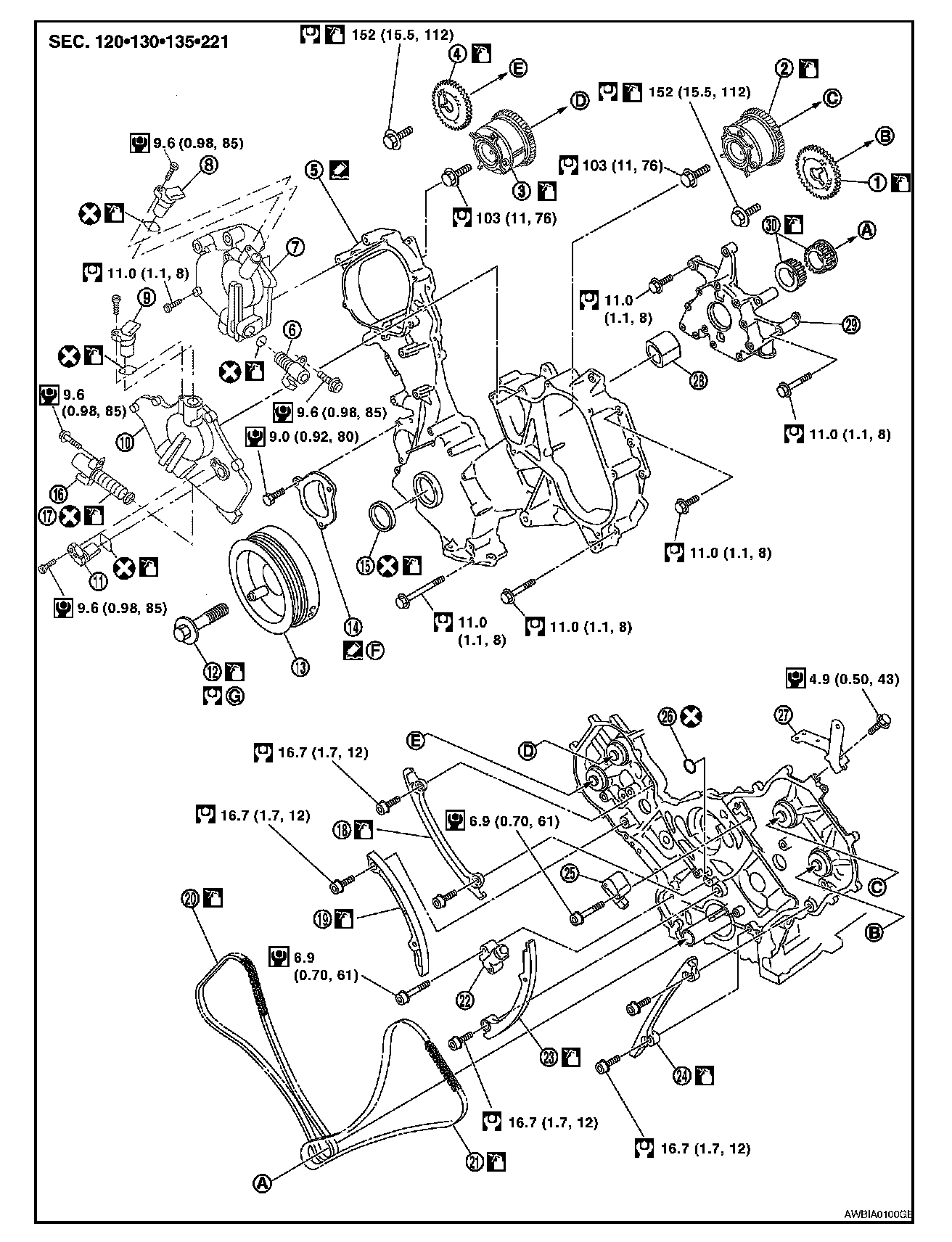

Timing Components: Specifications

Chain Tensioner Bolts 6.9 Nm (0.70 kg-m, 61 in-lb)

Crankshaft Pulley Bolt
Step 1 93.1 Nm (9.5 kg-m, 69 ft-lb)
Step 2 additional 90° (angle tightening)

Timing Cover Bolts





Install the bolts in the numerical order shown
M6 � 50 mm (1.97 in): No. 1, 20, 25, 26, 27
M6 � 80 mm (3.15 in): No. 4, 5, 7
M6 � 20 mm (0.79 in): Except the above
After tightening, re-tighten to the specified torque
