Rear Shock Absorber

SHOCK ABSORBER


Removal and Installation


REMOVAL
1. Remove the wheel and tire assembly using power tool. Refer to Rotation.
2. Use CONSULT-III "EXHAUST SOLENOID" active test to release the air pressure from the rear load leveling air suspension system.
3. Remove the four clips and remove the rear fender protector, front.





4. Disconnect the rear load leveling air suspension hose from the shock absorber.
- To disconnect the hose, push in on the lock ring using a suitable tool and pull the air hose out.

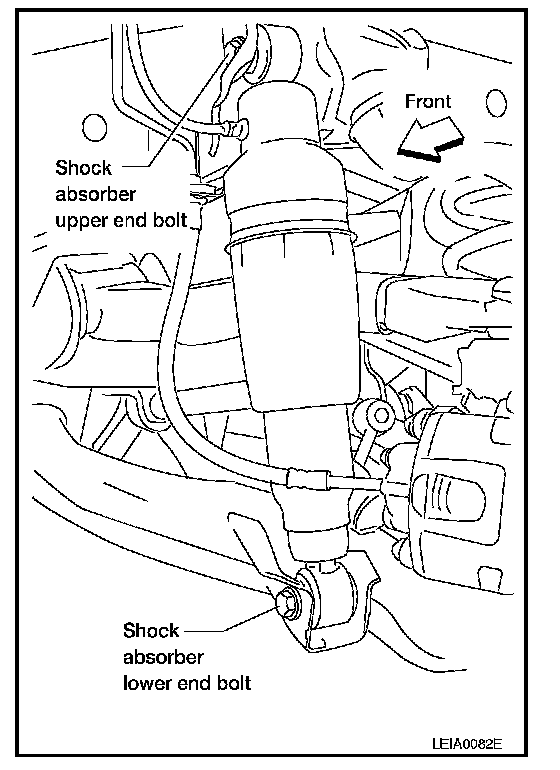

5. Remove the shock absorber upper and lower end bolts using power tool.
6. Remove the shock absorber.

CAUTION:
Do not damage the rubber boot on the shock absorber.






INSTALLATION
Installation is in the reverse order of removal.
- Tighten the shock absorber bolts to specification. Refer to Service and Repair.

INSPECTION AFTER INSTALLATION
- Check the shock absorber for any air leaks or damage to the rubber boot.
- Check the shock absorber for smooth operation through a full stroke, both compression and extension.
- Check piston rod for cracks, deformation or other damage and replace if necessary.
