B260A

B260A IGNITION RELAY





Description
When the ignition switch is turned ON, the BCM activates the following relays to provide power supply to each
ECU.
- Ignition relay (located in fuse block)
- Ignition relay (built into IPDM E/R)
- Blower relay
BCM checks any ignition relay ON request for consistency with the actual ignition relay operation status.




DTC Logic

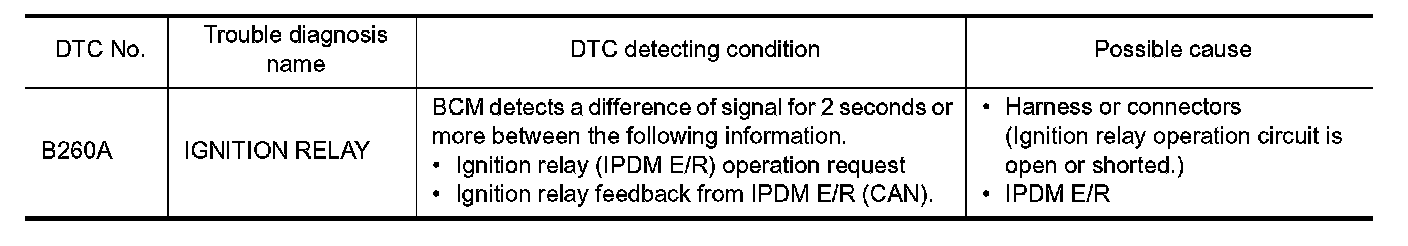

DTC DETECTION LOGIC

NOTE:
- If DTC B260A is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Power Distribution System.
- If DTC B260A is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. PCS.
- If DTC B260A is displayed with DTC B261A, first perform the trouble diagnosis for DTC B261A. PCS.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON under the following conditions, and wait for at least 2 seconds.
- Selector lever is in the P or N position.
- Do not depress brake pedal.
2. Check "Self diagnostic result" with CONSULT-III.
Is DTC detected?
YES - Go to B260A.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK DTC WITH IPDM E/R
Check "Self diagnostic result" with CONSULT-III. Testing and Inspection.
Is DTC detected?
YES - Repair or replace the malfunctioning parts.
NO - GO TO 2.
2.CHECK IGNITION RELAY INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - GO TO 3.
3.CHECK IGNITION RELAY (IPDM E/R) CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector and BCM harness connector.





3. Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - Replace IPDM E/R. Removal and Installation.
NO - Repair or replace harness.
4.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
