Check Ignition Switch Position

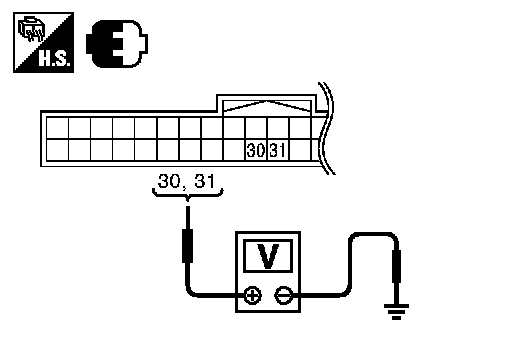

INTELLIGENT KEY SYSTEMCheck Ignition Switch Position 1.CHECK IGNITION POWER SUPPLY Check voltage between Intelligent Key unit connector and ground.
OK or NG
OK - Ignition power supply is OK.
NG - Check the following.
-
Repair or replace Intelligent Key unit power supply circuit.
-
Check 10A fuse [No. 6, located in the fuse block (J/B)]
-
Check 10A fuse [No. 12, located in the fuse block (J/B)]
