CONSULT-III Functions (BCM-Intelligent Key)

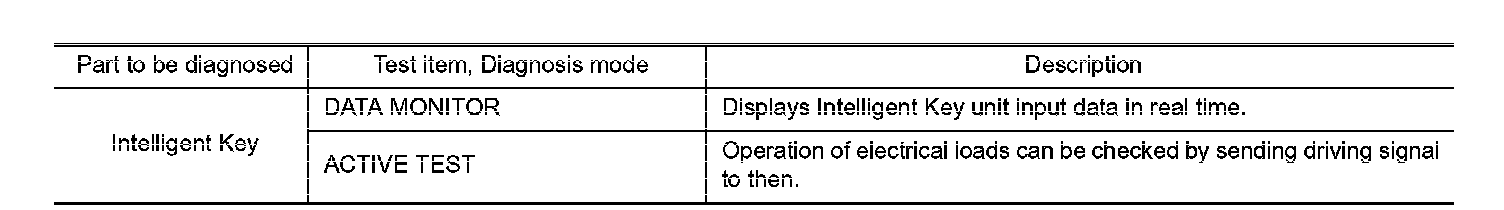

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONCONSULT-III Functions (BCM-INTELLIGENT KEY) CONSULT-III can display each diagnostic item using the diagnostic test modes as shown below.

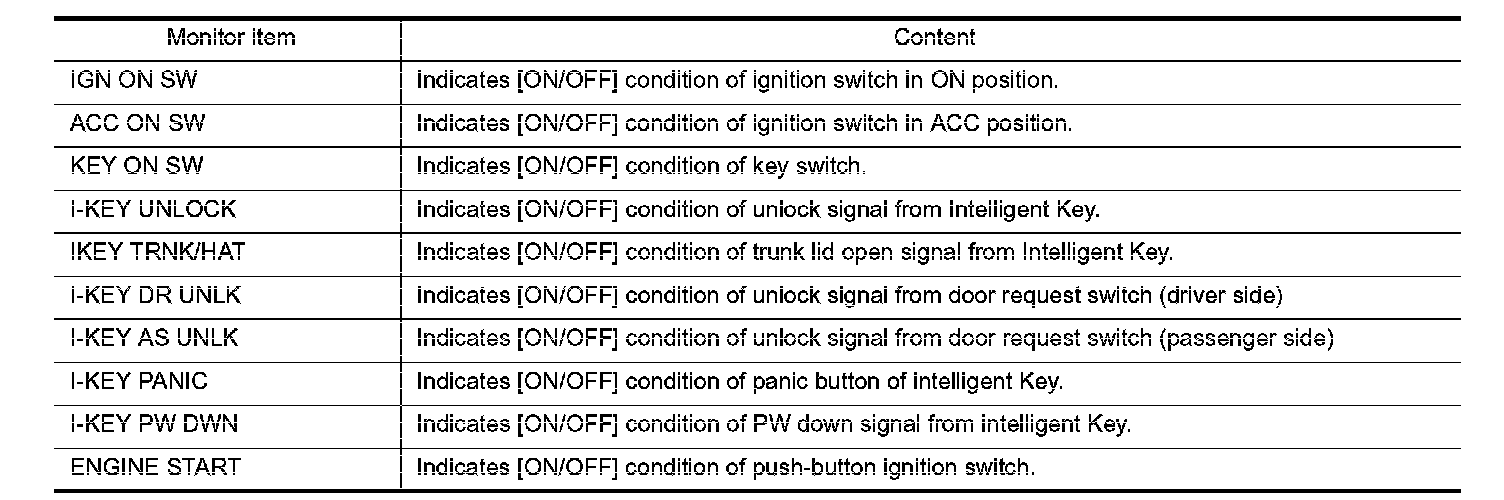

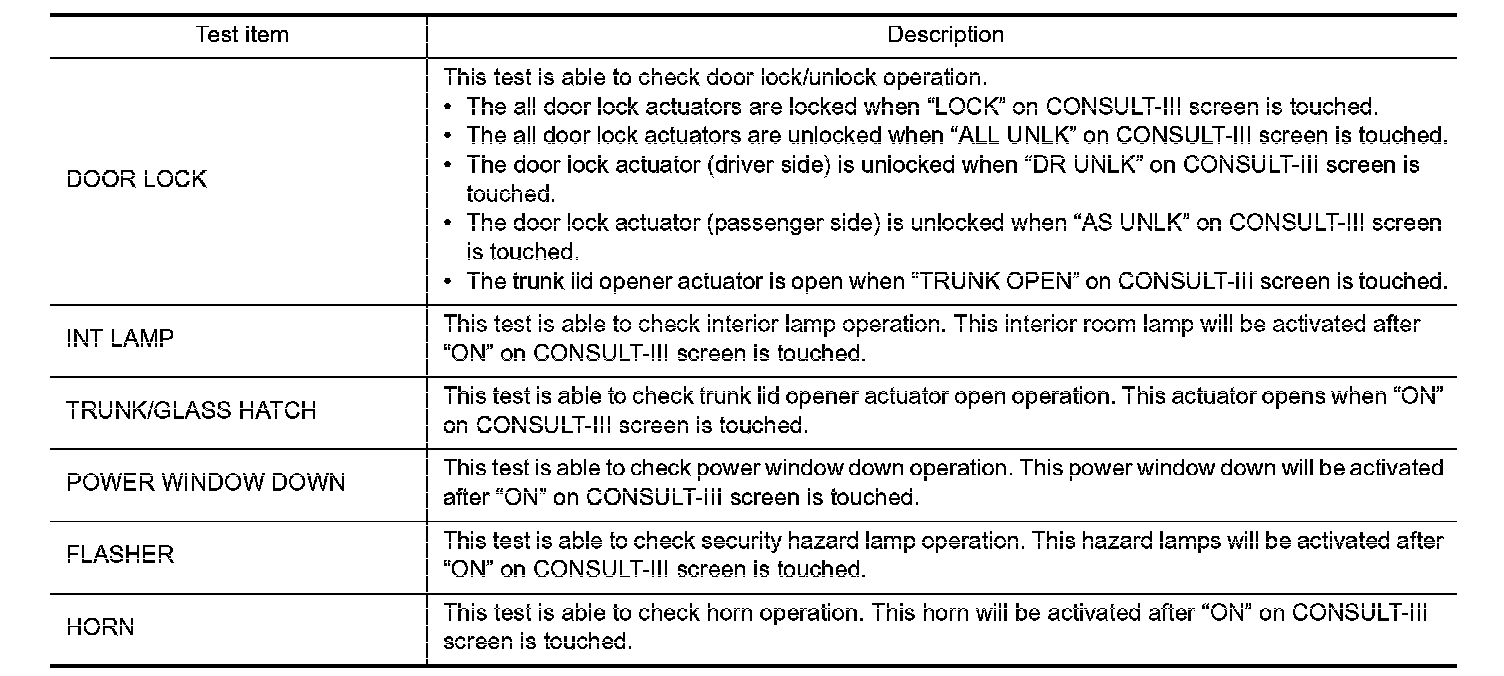

DATA MONITOR ACTIVE TEST
