Component Function Check
LDW SWITCH CIRCUITComponent Function Check 1.CHECK LDW SWITCH SIGNAL BY CONSULT-III CONSULT-III DATA MONITOR
1.
Turn the ignition switch ON.
2.

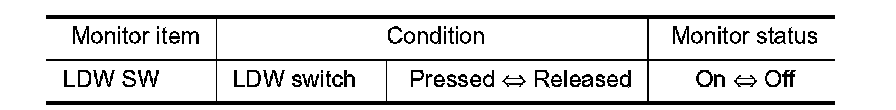

Select "LDW SW" of "LANE CAMERA" data monitor item.
3.
With operating the LDW switch, check the monitor status.
Is the item status normal?
YES - LDW switch circuit is normal.
NO -
Diagnosis Procedure.
