CONSULT-III Function
TROUBLE DIAGNOSIS - GENERAL DESCRIPTION
CONSULT-III Function (ICC)
DESCRIPTION

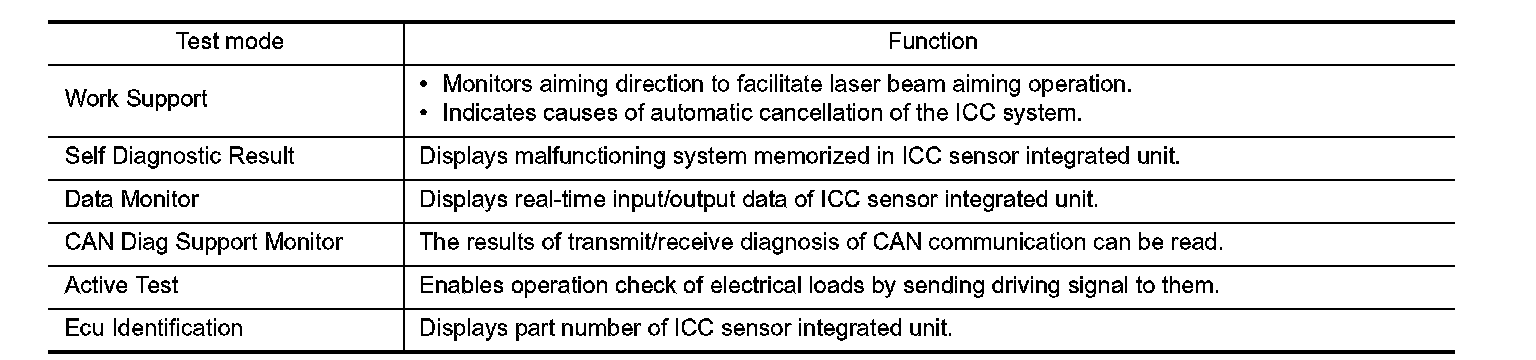

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

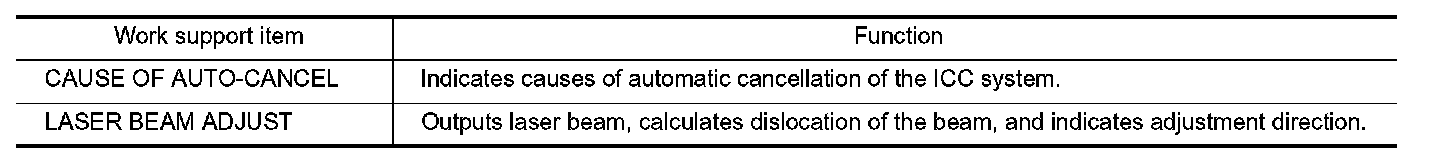

WORK SUPPORT
Work Item

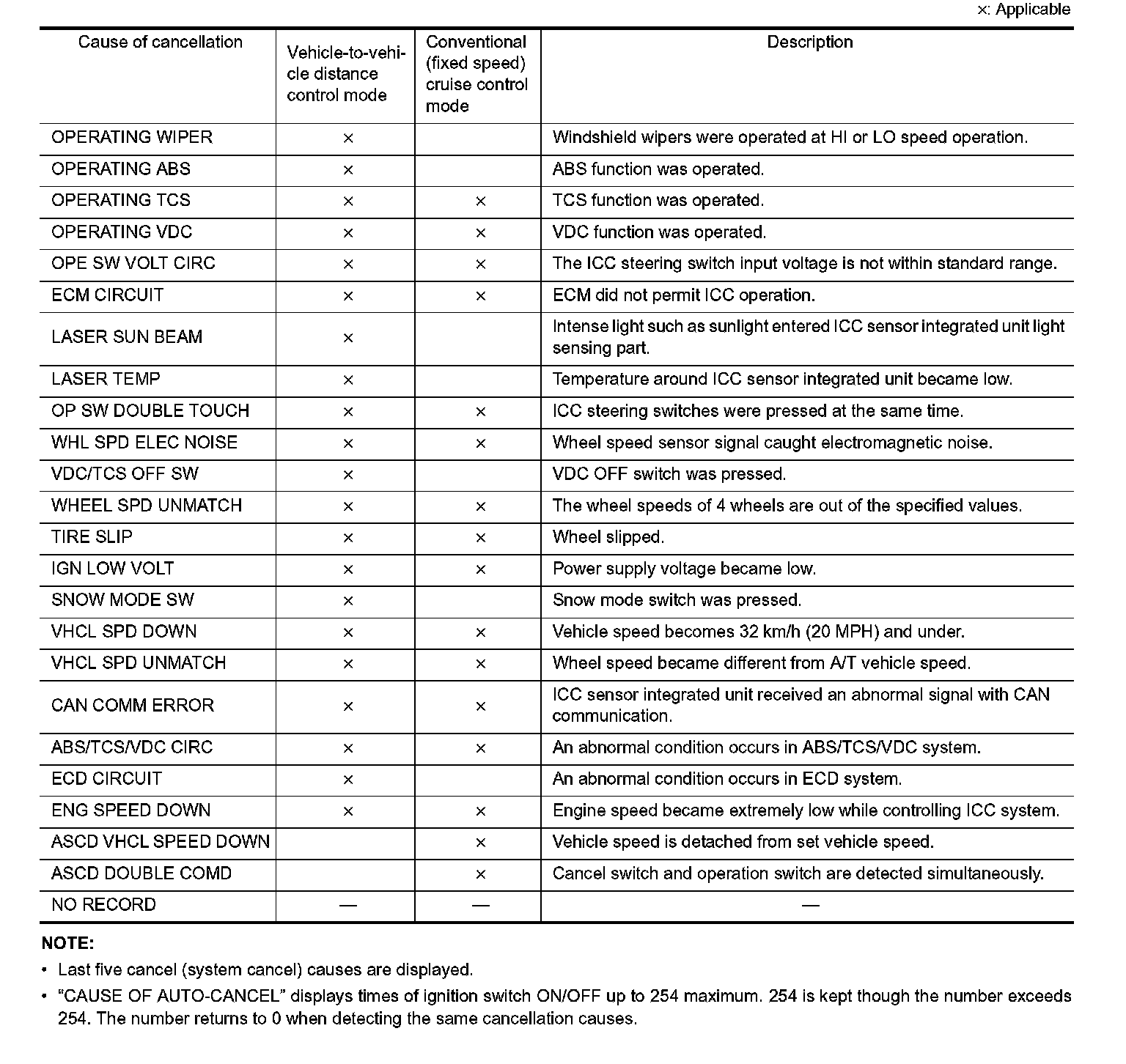

Cause of Auto-Cancel Display Item List
Laser Beam Adjust
For details, Outline.
SELF-DIAGNOSTIC RESULTS
For details, Cruise Control System.

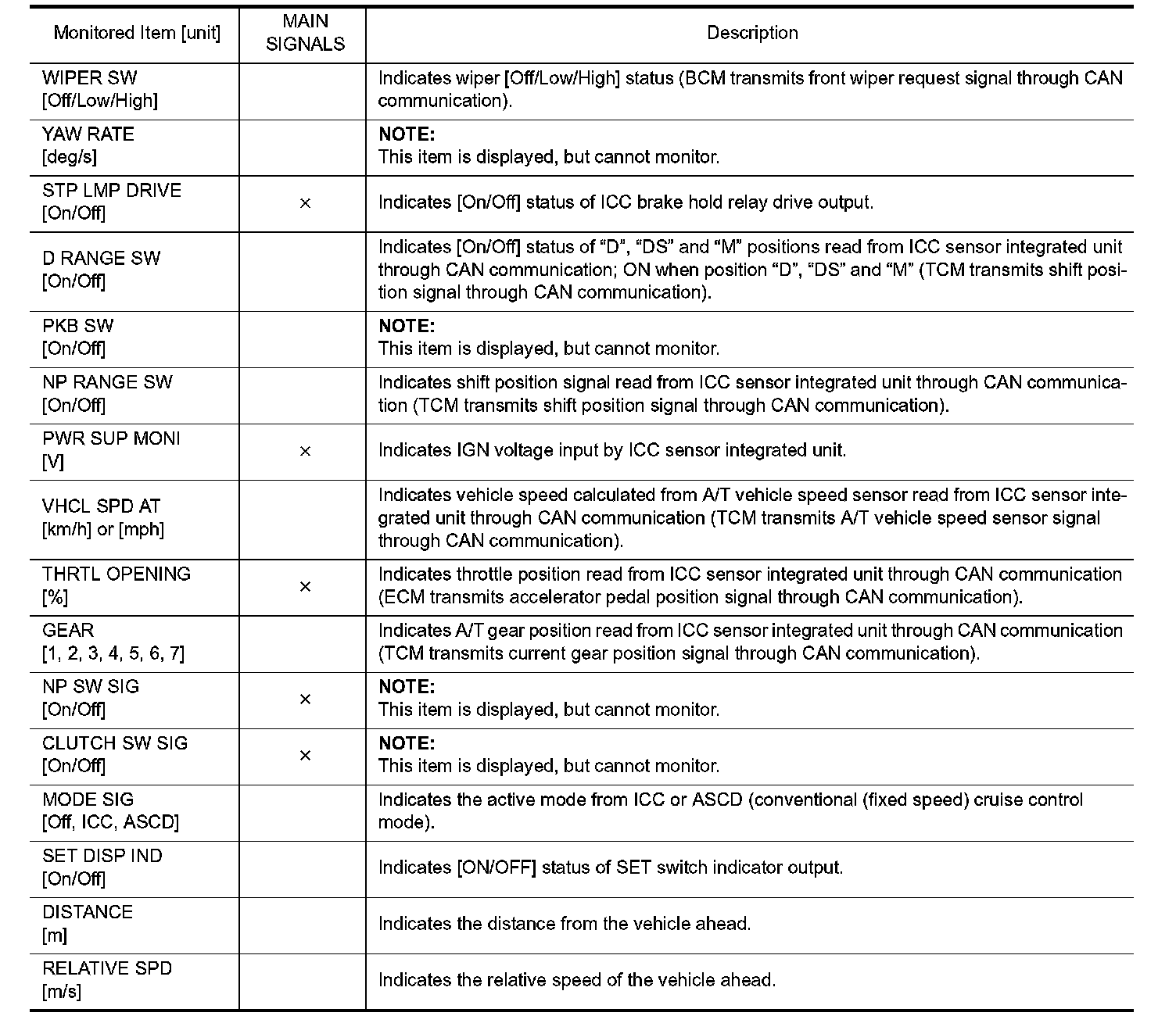

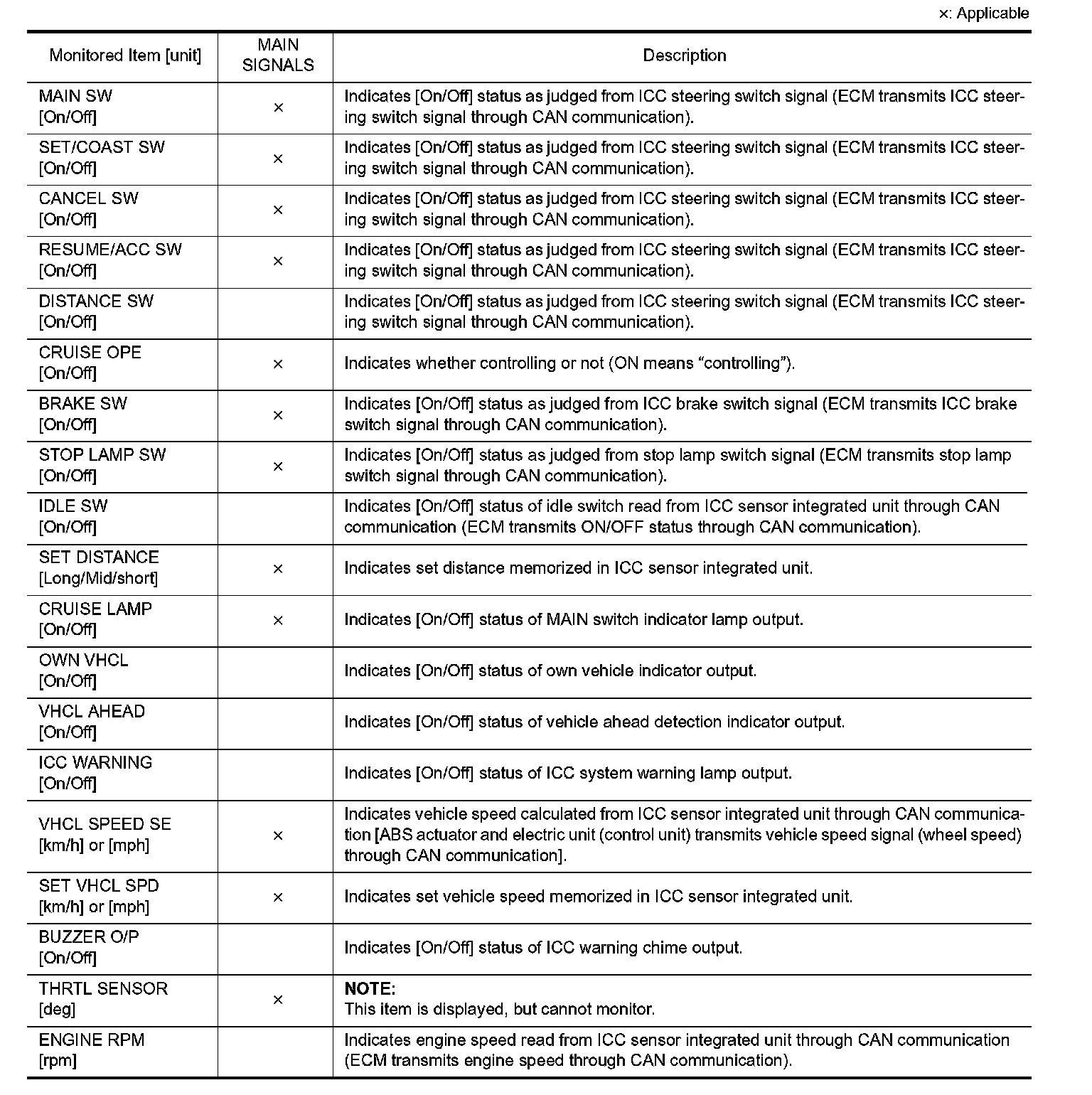

DATA MONITOR
Monitored Item
ACTIVE TEST
CAUTION:
- Never perform the active test while driving.
- "ACTIVE TEST" cannot be started while ICC system warning lamp illuminates.

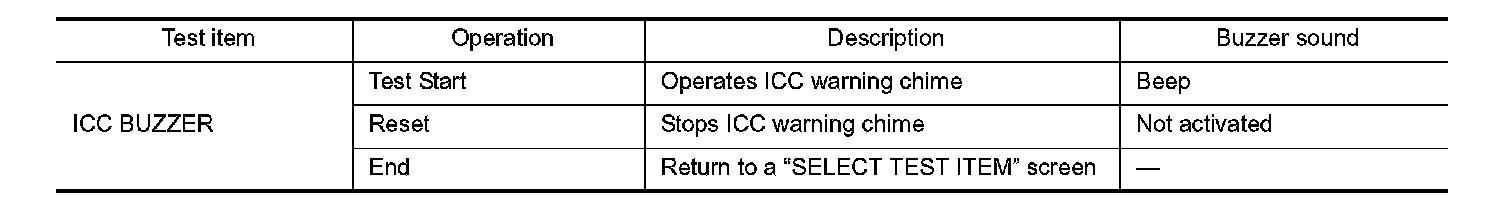

ICC BUZZER

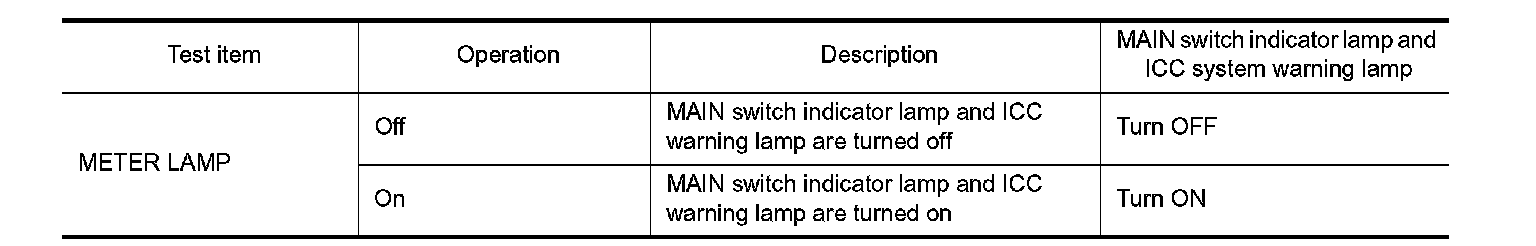

METER LAMP
CAUTION:
Start engine and perform active test.
STOP LAMP
