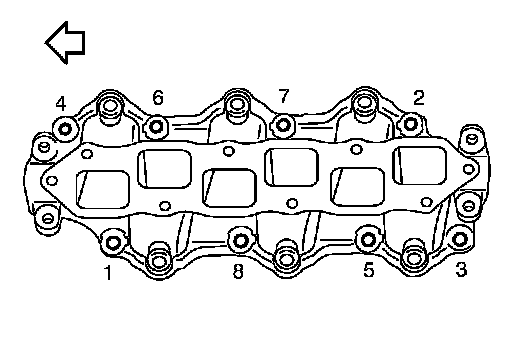

Intake Manifold
Intake manifoldStud bolts
10.8 Nm (1.1 kg-m, 96 in-lb)
Intake bolts
1st step
7.4 Nm (0.75 kg-m, 5 ft-lb)
2nd step and after
25.5 Nm (2.6 kg-m, 19 ft-lb)

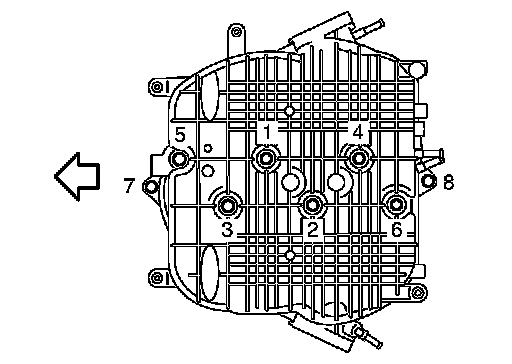

Intake collector
Stud bolts
10.8 Nm (1.1 kg-m, 96 in-lb)
Collector bolts
19.6 Nm (2.0 kg-m, 14 ft lb)
