System Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

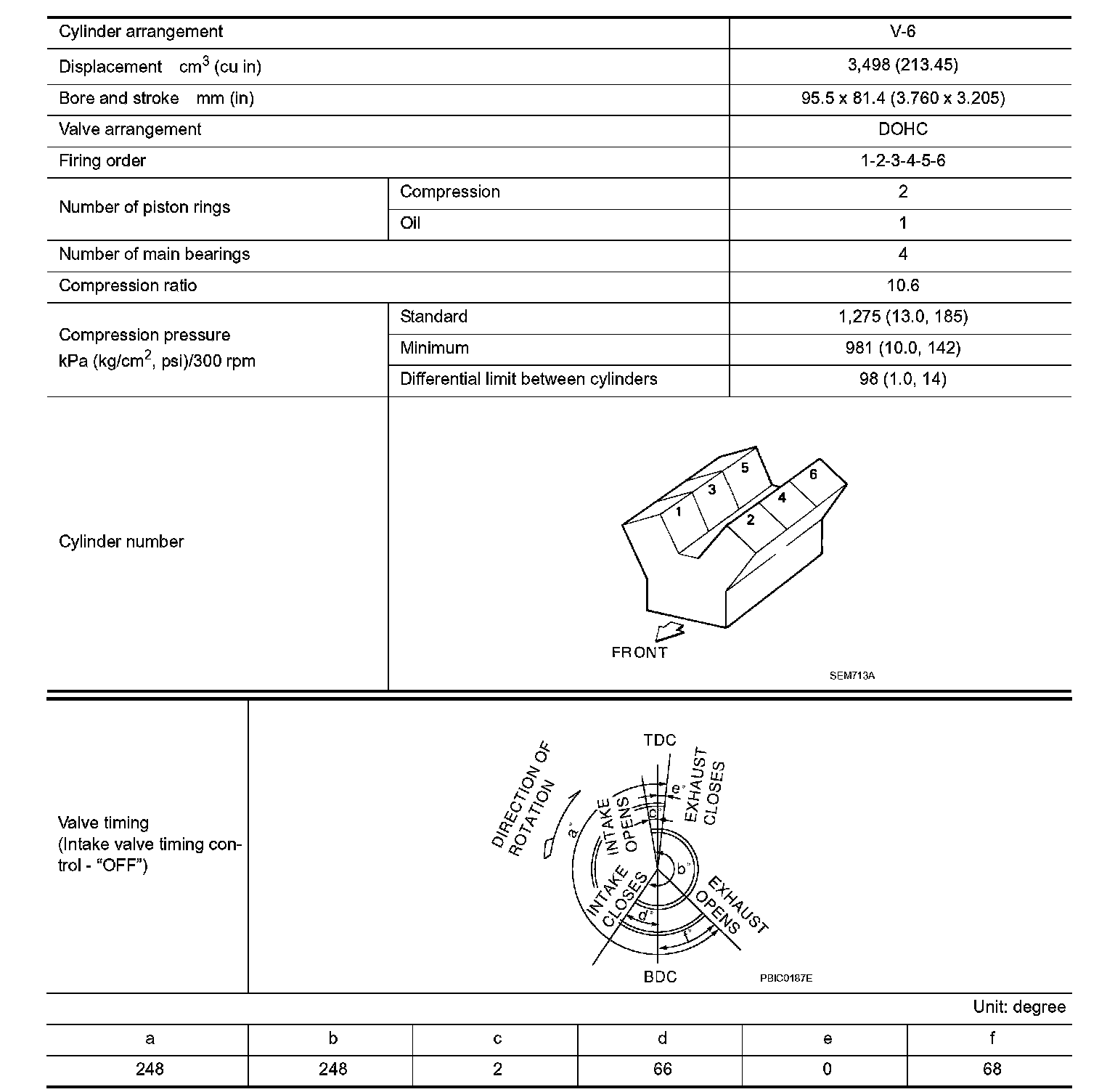

GENERAL SPECIFICATIONS

DRIVE BELT

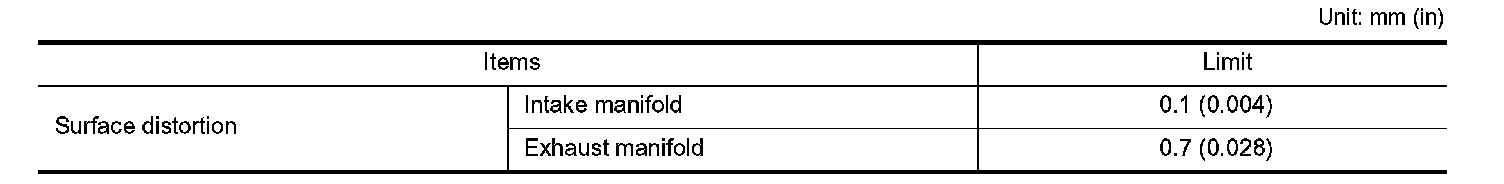

INTAKE MANIFOLD COLLECTOR, INTAKE MANIFOLD AND EXHAUST MANIFOLD

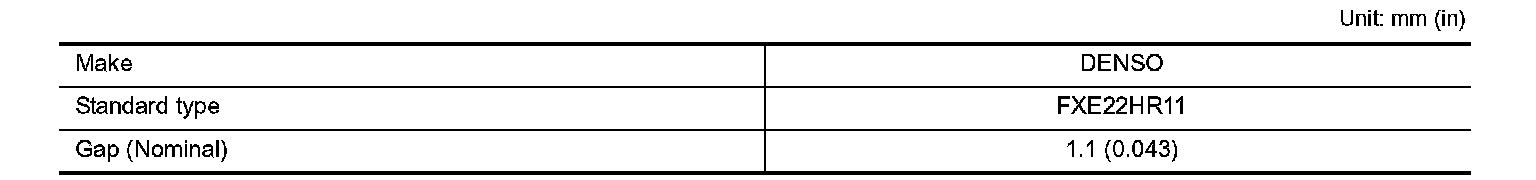

SPARK PLUG

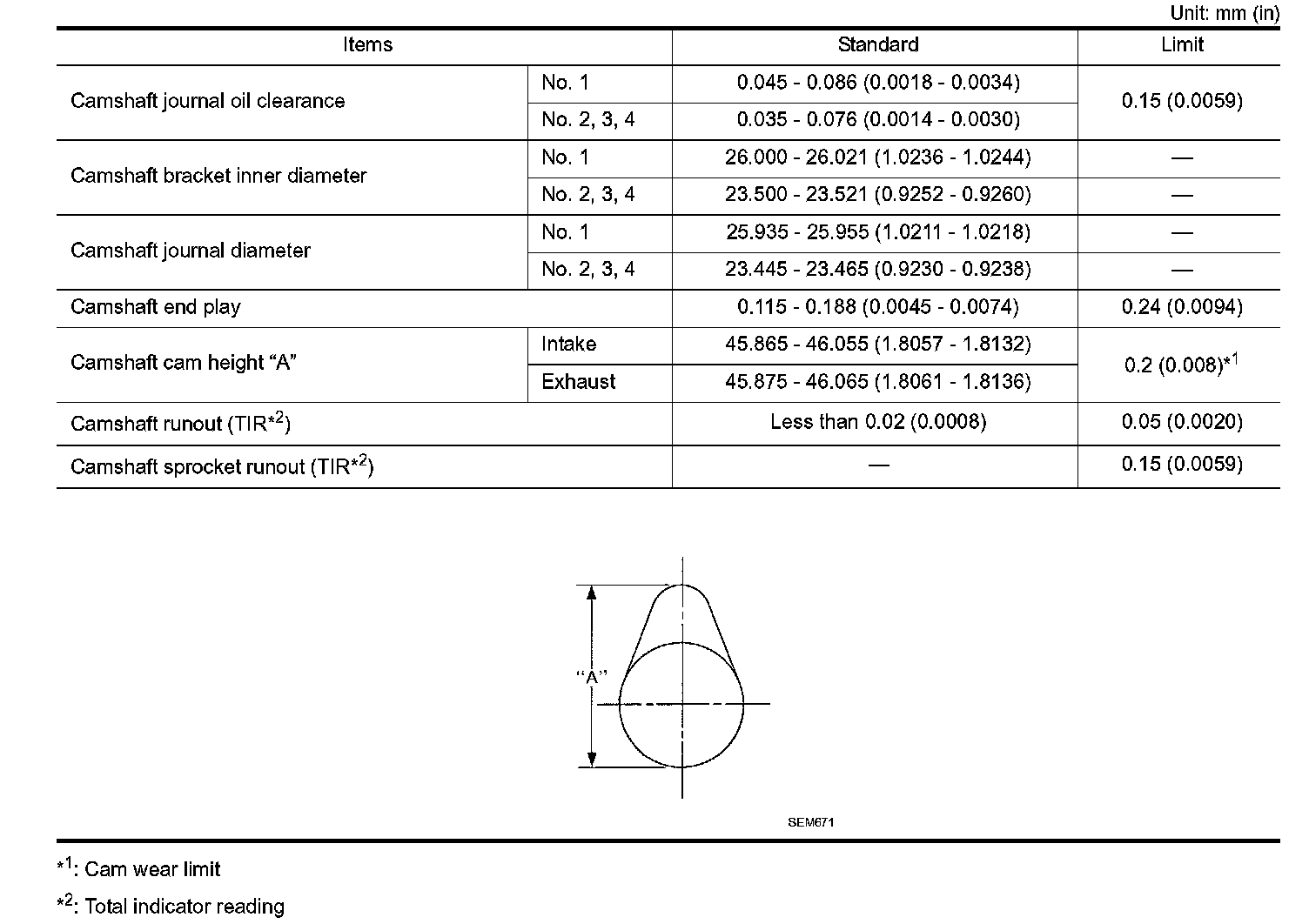

CAMSHAFT AND CAMSHAFT BEARING

VALVE LIFTER

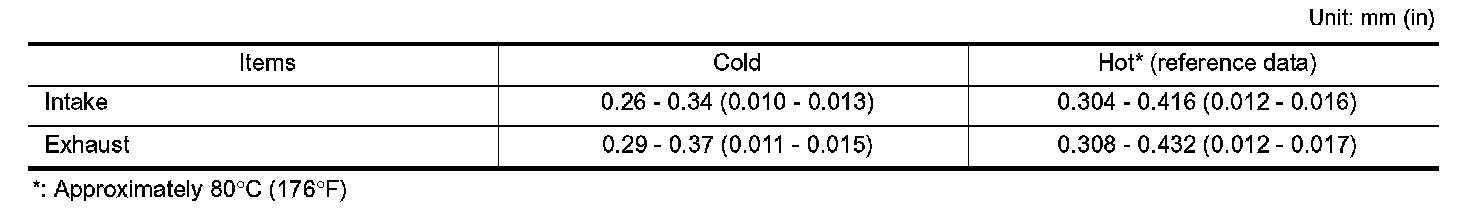

VALVE CLEARANCE

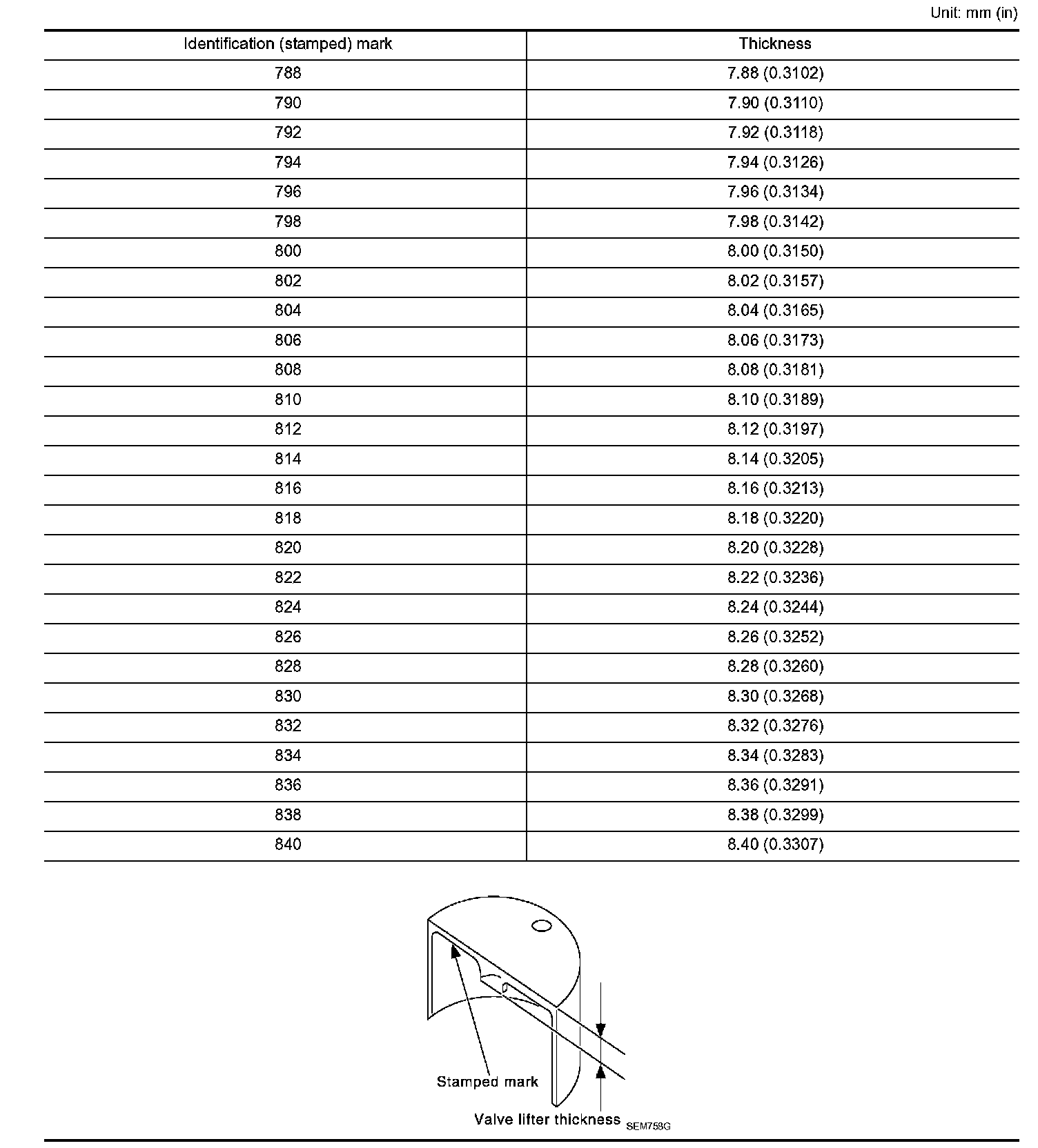

AVAILABLE VALVE LIFTER

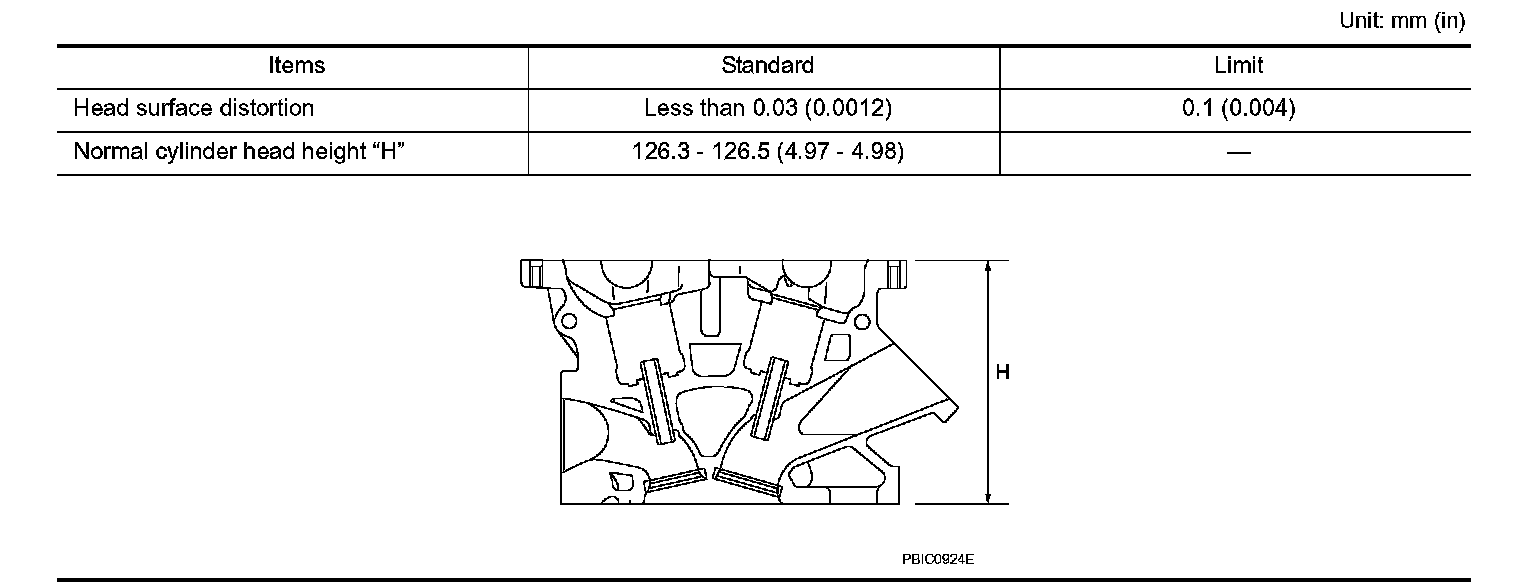

CYLINDER HEAD

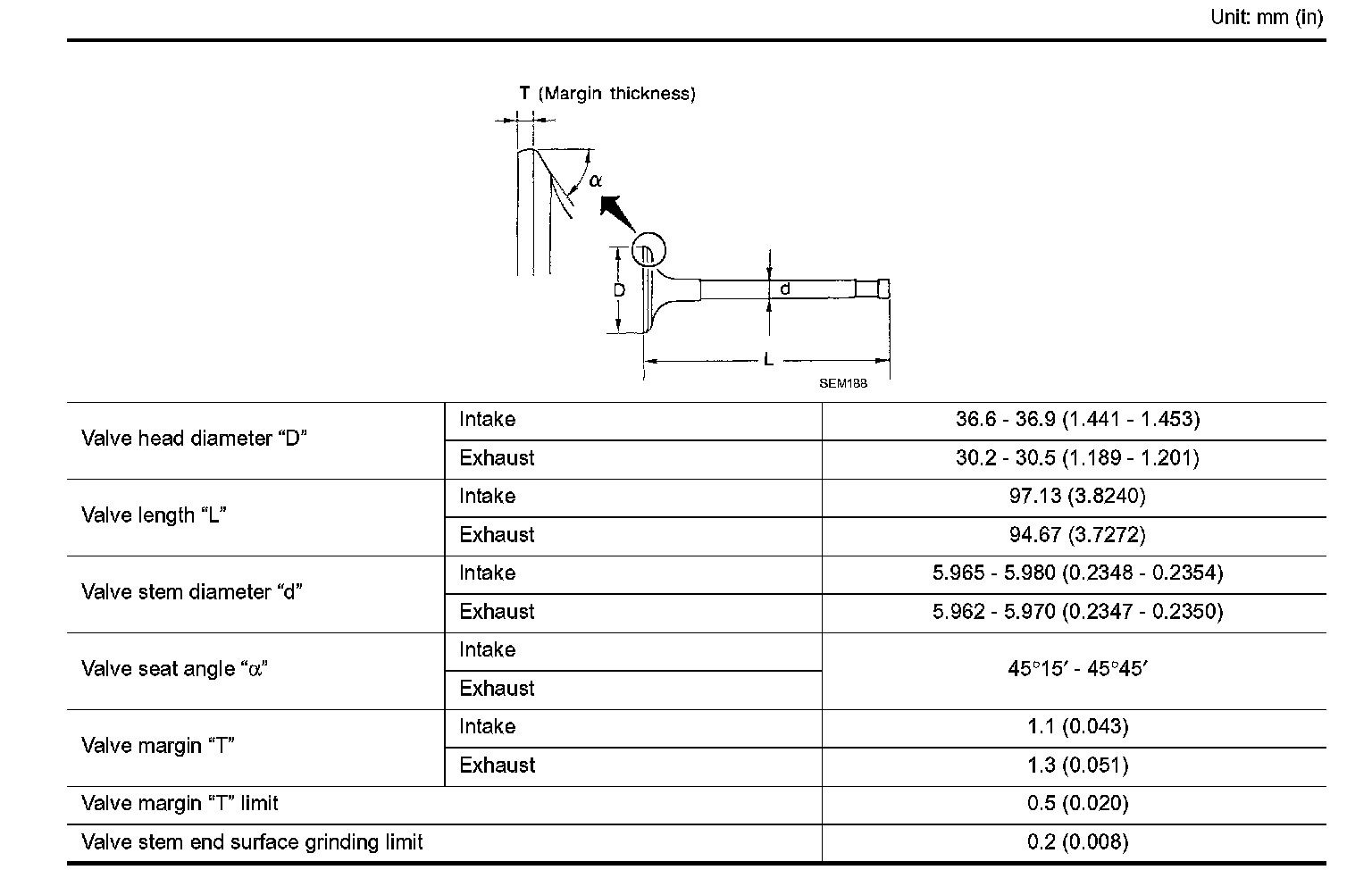

VALVE DIMENSIONS

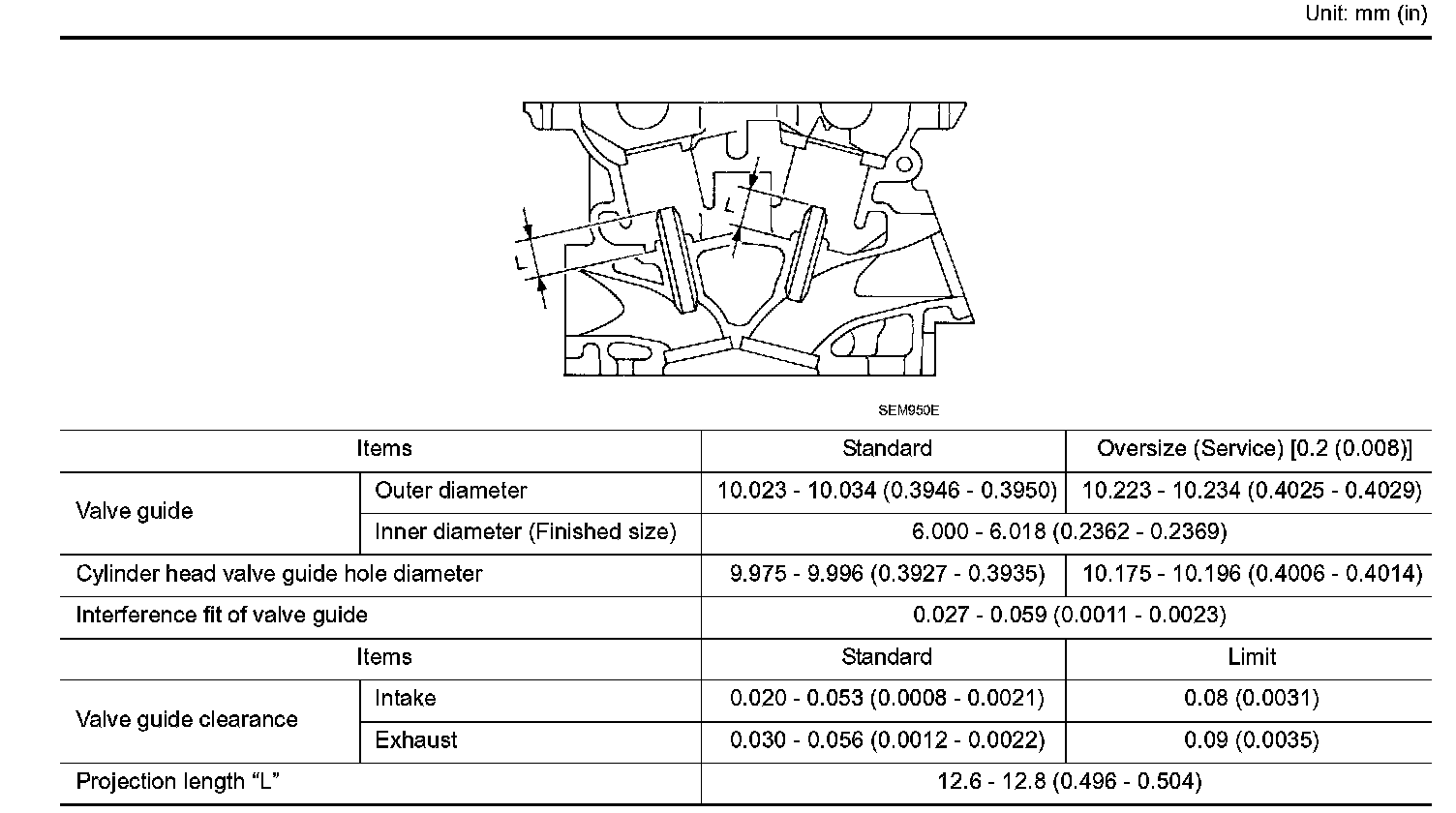

VALVE GUIDE

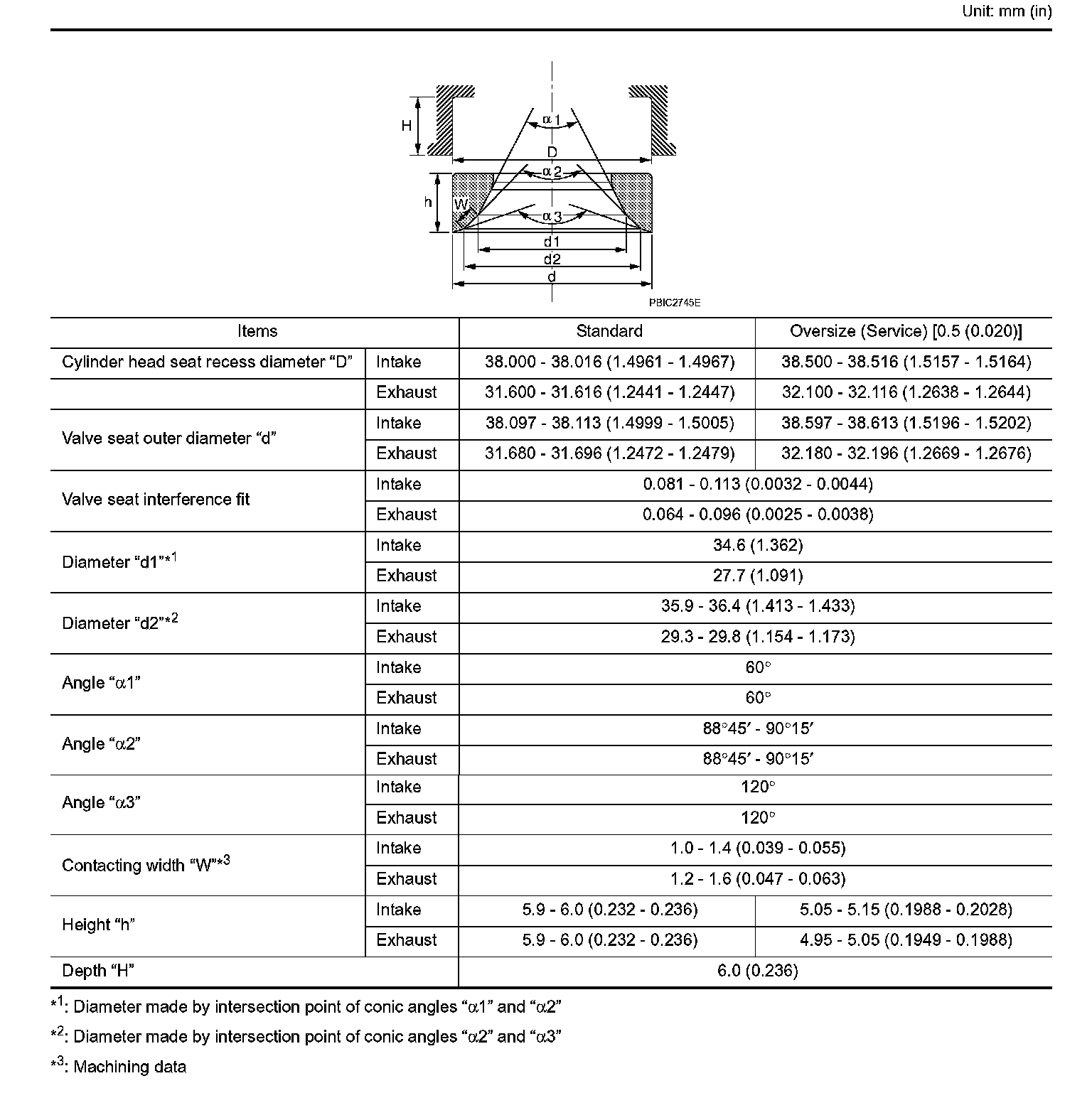

VALVE SEAT

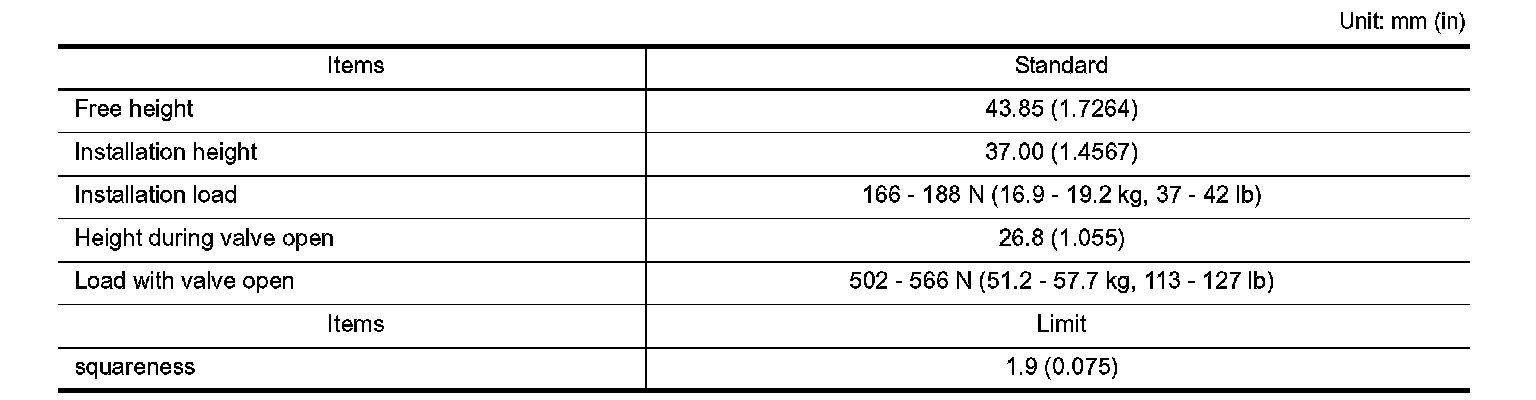

VALVE SPRING

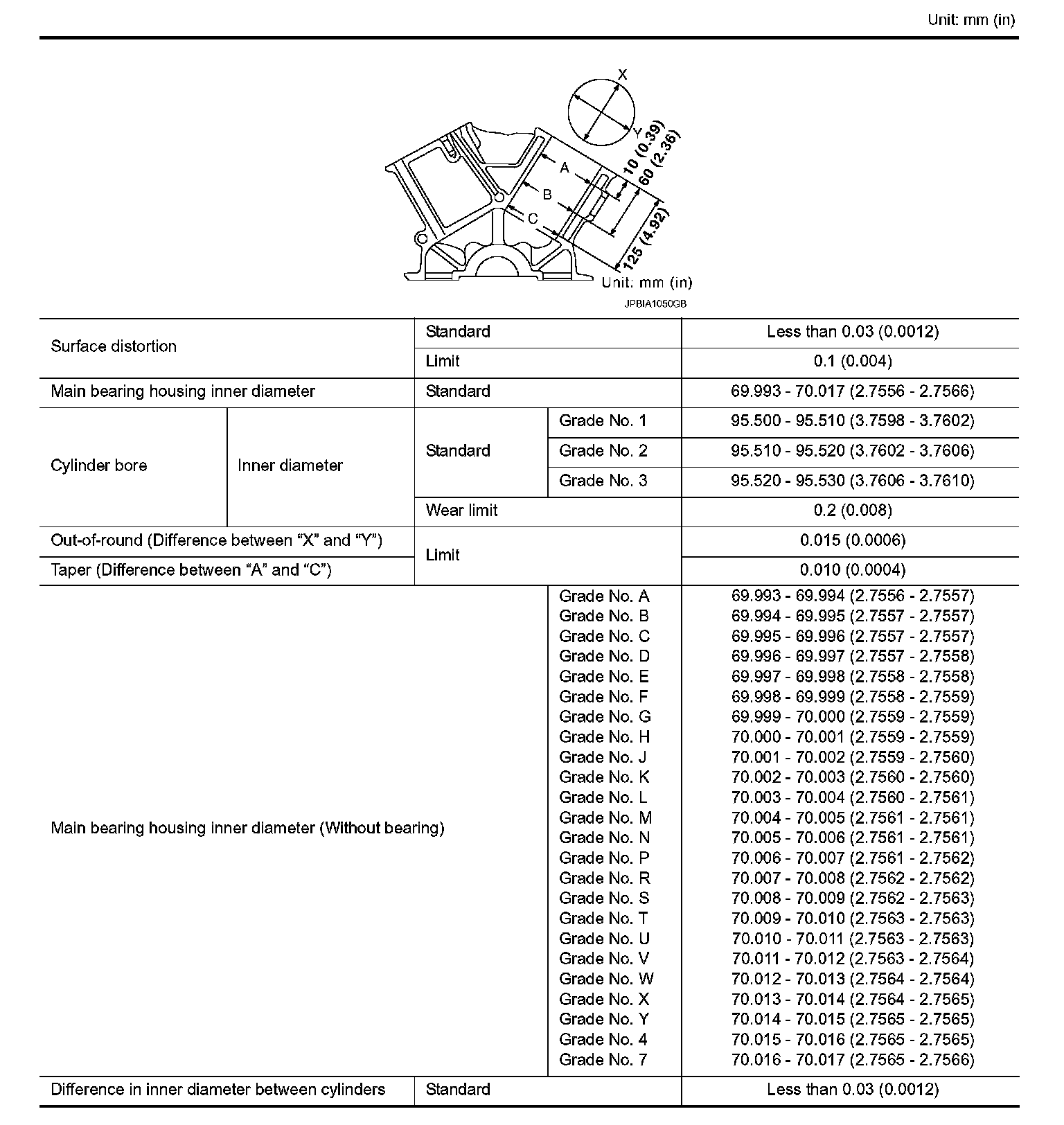

CYLINDER BLOCK

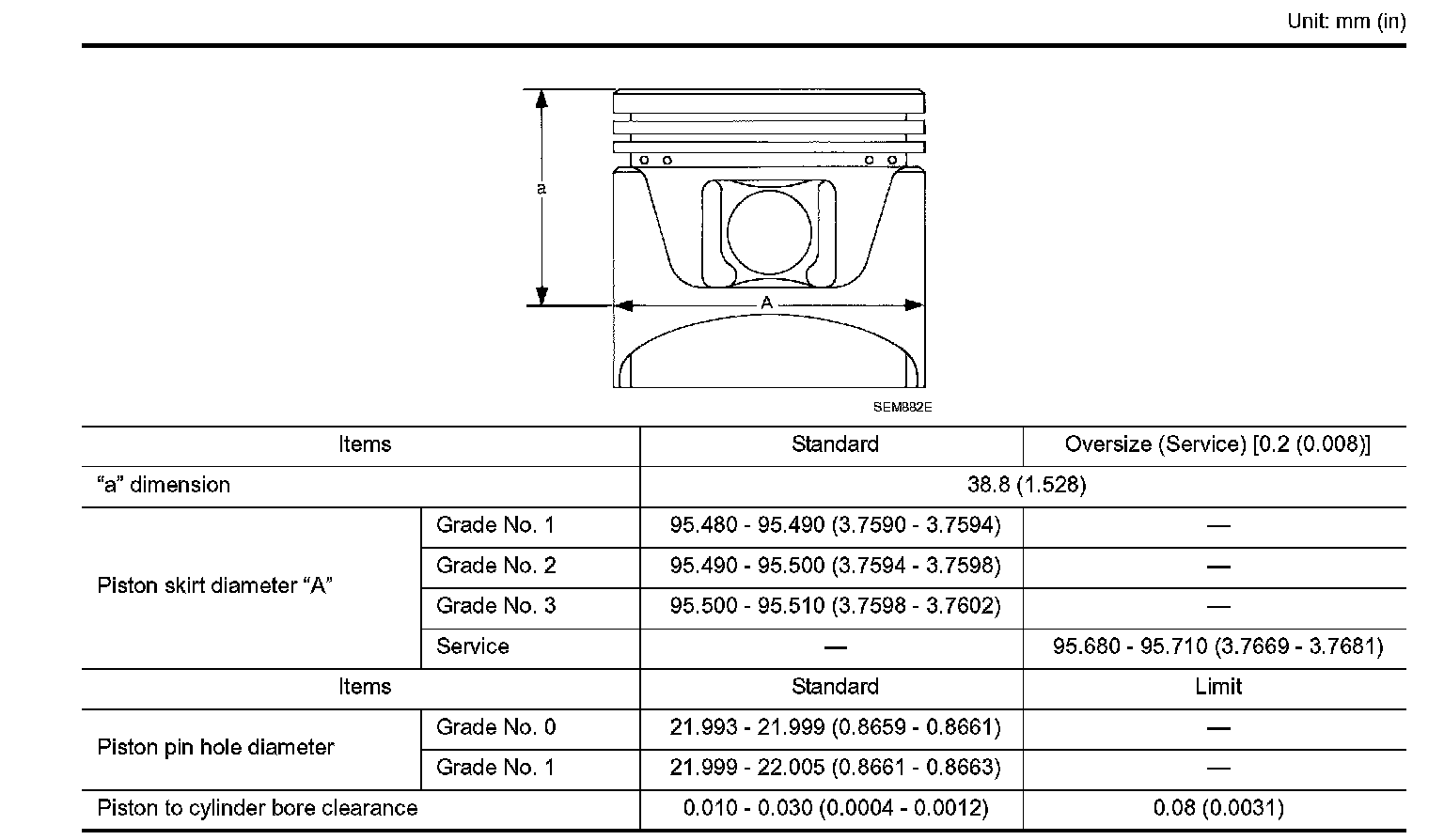

PISTON, PISTON RING AND PISTON PIN

AVAILABLE PISTON

PISTON RING

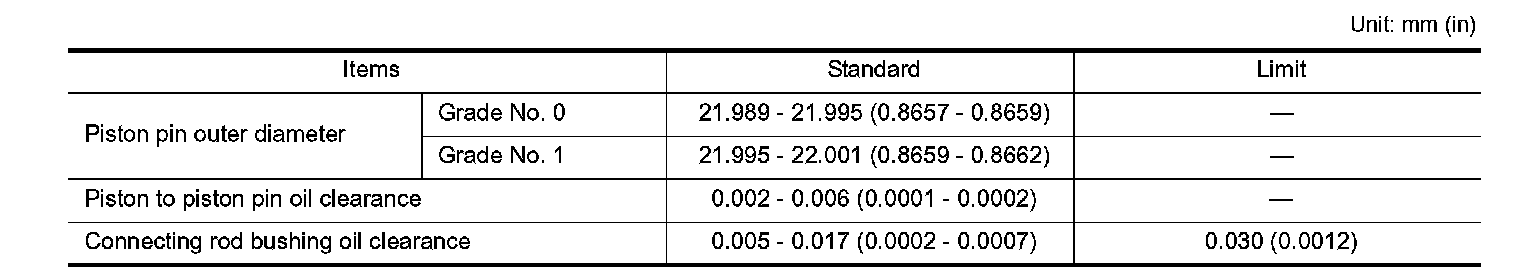

PISTON PIN

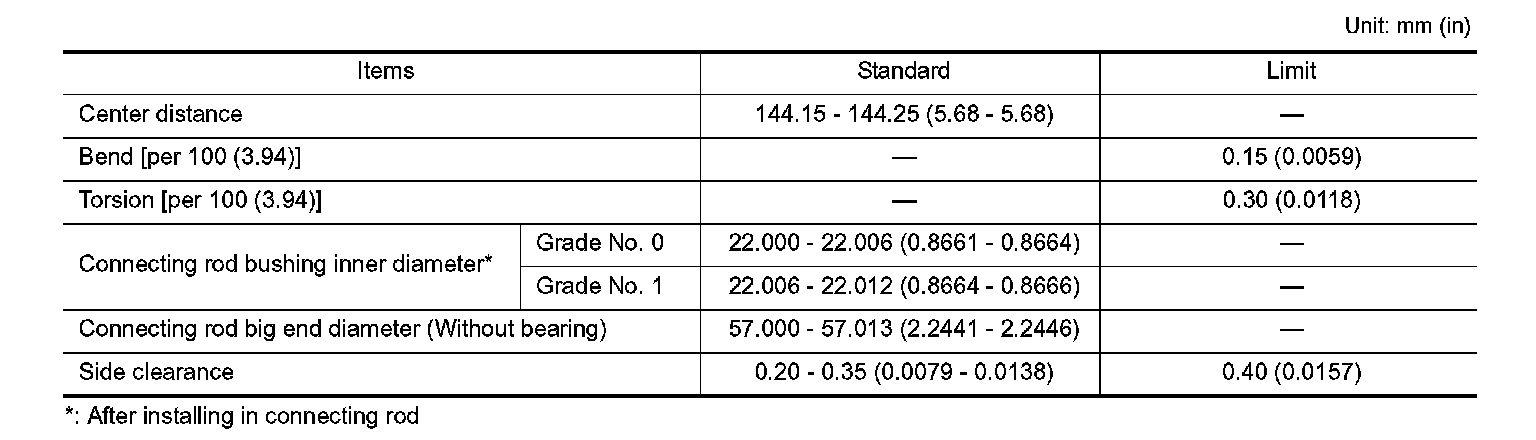

CONNECTING ROD

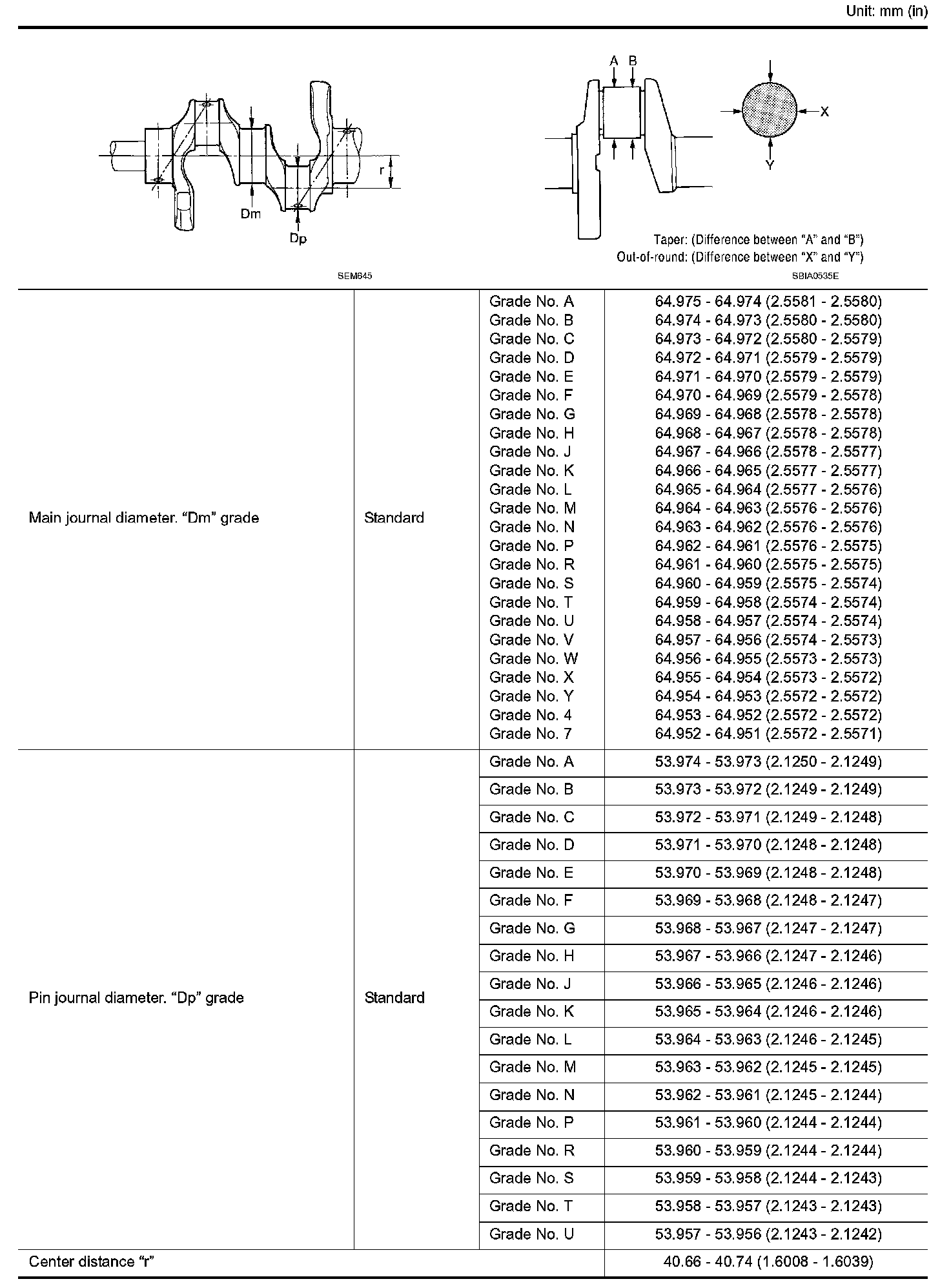

CRANKSHAFT

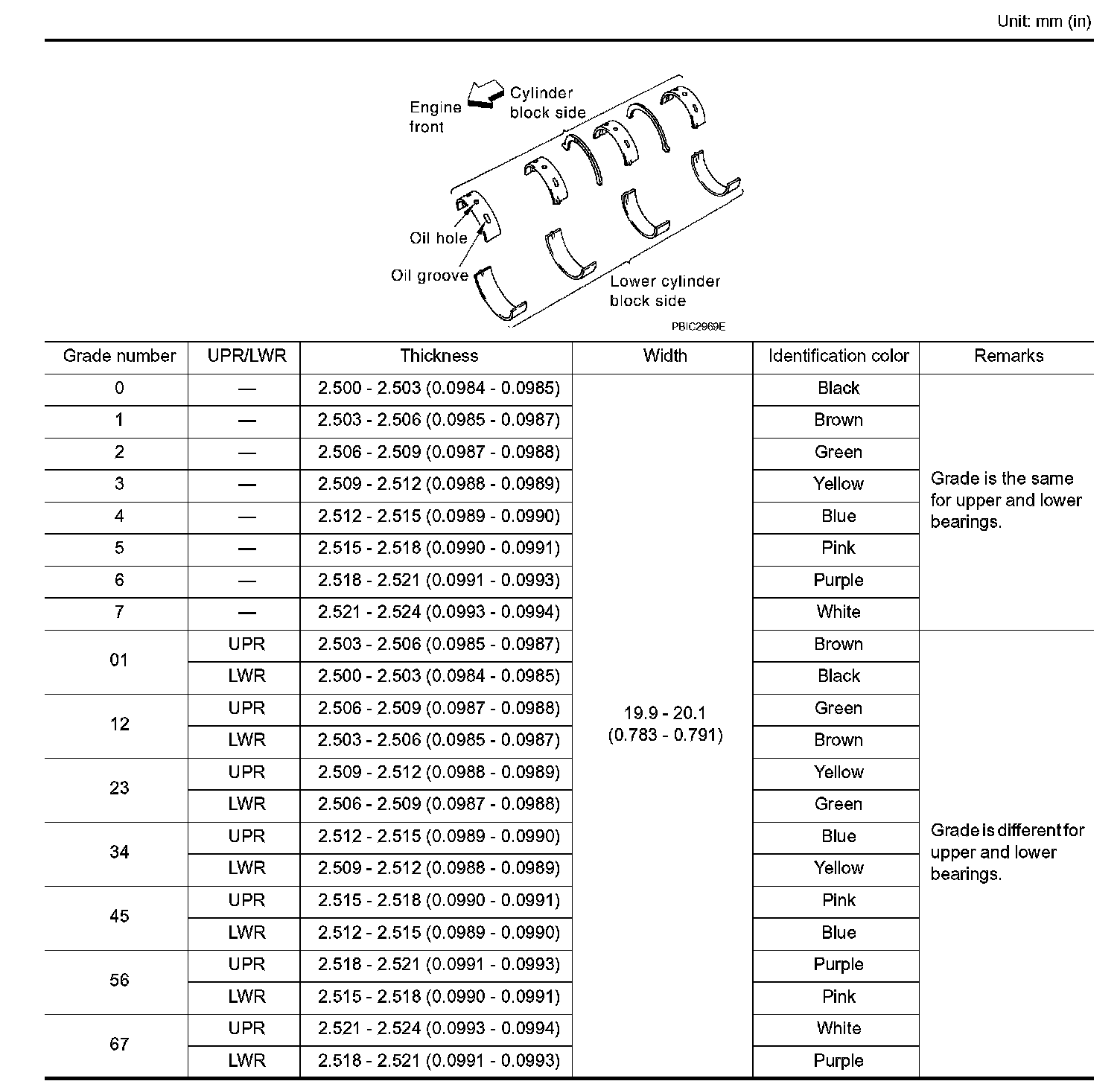

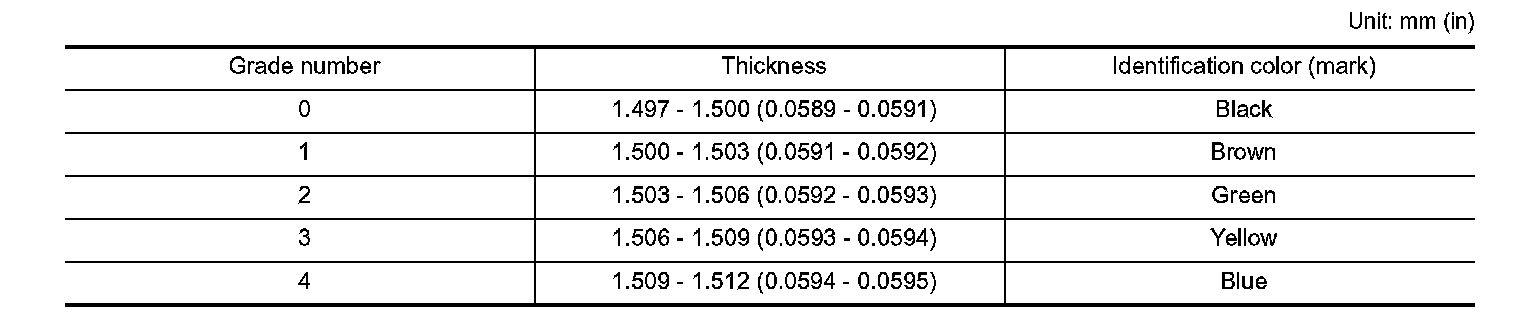

MAIN BEARING

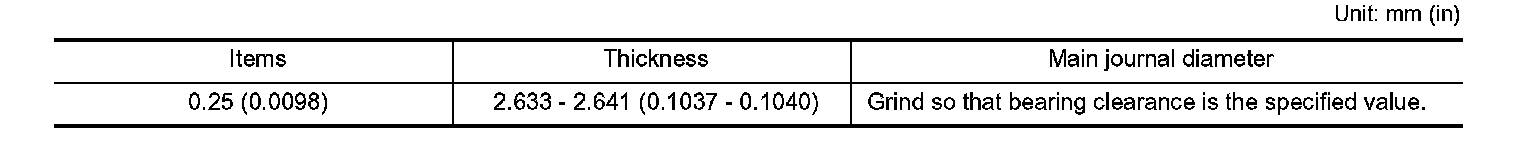

UNDERSIZE

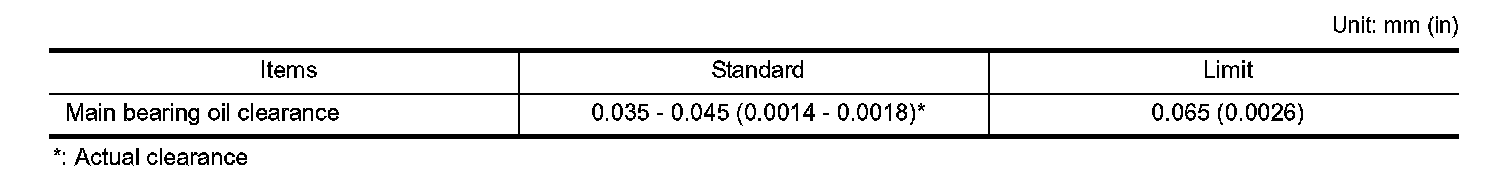

MAIN BEARING OIL CLEARANCE

CONNECTING ROD BEARING

UNDERSIZE

CONNECTING ROD BEARING OIL CLEARANCE
