Timing Cover
Timing coverM10 bolts : 1, 2, 3, 4, 5, 6, 7
55.0 Nm (5.6 kg-m, 41 ft-lb)
M6 bolts : Except the above
12.7 Nm (1.3 kg-m, 9 ft-lb)

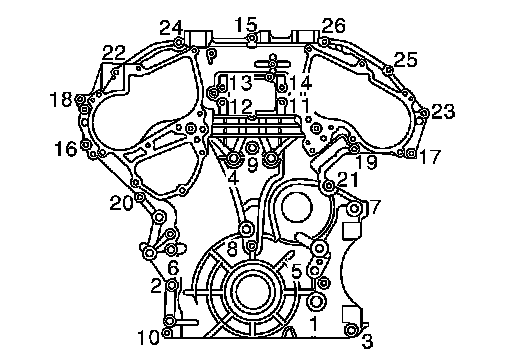

After all bolts tightened, retighten them to the specified torque in numerical order as shown in the figure.

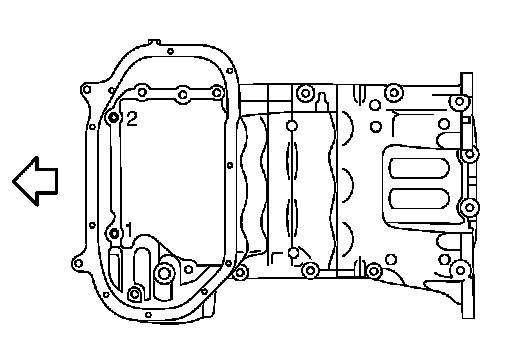

Oil pan 17.2 Nm (1.8 kg-m, 13 ft-lb)
