Compressor Clutch: Testing and Inspection

REFRIGERANT LINES


VQ35HR : Check Disc to Pulley Clearance

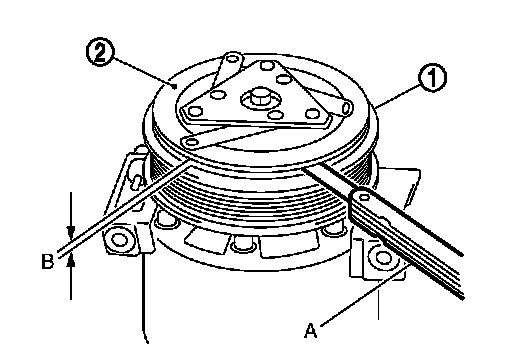

Check the clearance (B) between pulley assembly (1) and clutch disc (2) along the entire periphery with a feeler gauge (A).

Clearance: 0.3 - 0.6 mm (0.012 - 0.024 in)

Replace compressor if specified clearance is not obtained.
