Fusible Link: Testing and Inspection

POWER SUPPLY ROUTING CIRCUIT


Fusible Link






A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is questionable, use circuit tester or test lamp.

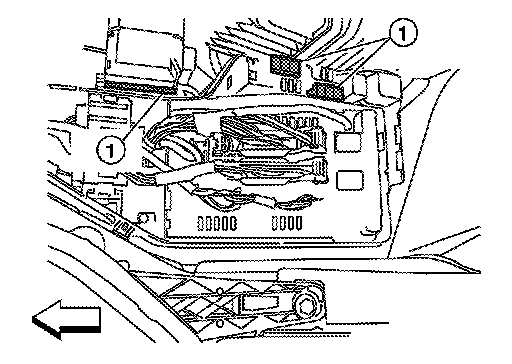

1 : Fusible link


CAUTION:
- If fusible link should melt, it is possible that critical circuit
(power supply or large current carrying circuit) is shorted. In such a case, carefully check and eliminate cause of malfunction.
- Never wrap outside of fusible link with vinyl tape. Important:
Never let fusible link touch any other wiring harness, vinyl or rubber parts.
