CONSULT-III Function (Engine)

ON BOARD DIAGNOSTIC (OBD) SYSTEM


CONSULT-III Function (ENGINE)


FUNCTION






ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION











WORK SUPPORT MODE

Work Item






SELF-DIAG RESULTS MODE

Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, Testing and Inspection.

Freeze Frame Data and 1st Trip Freeze Frame Data

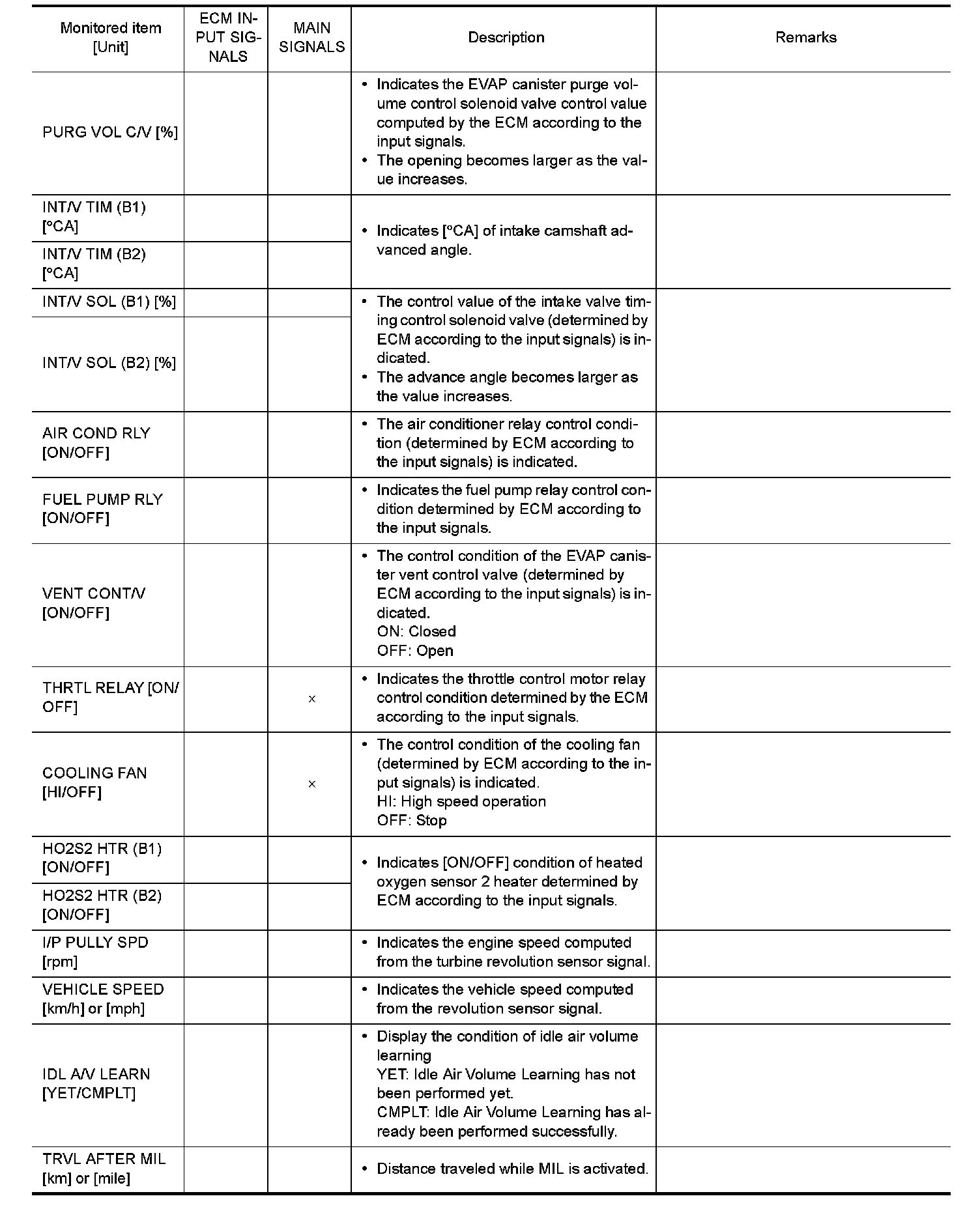

DATA MONITOR MODE

Monitored Item





















ACTIVE TEST MODE

Test Item






DTC & SRT CONFIRMATION MODE

SRT STATUS Mode
For details, Testing and Inspection.

SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

DTC WORK SUPPORT Mode
