Disassembly And Assembly Without ADP

OUTSIDE MIRROR


GLASS MIRROR : Disassembly and Assembly


DISASSEMBLY
1. Place the glass mirror upward.
2. Put a strip of protective tape (B) on housing assembly.

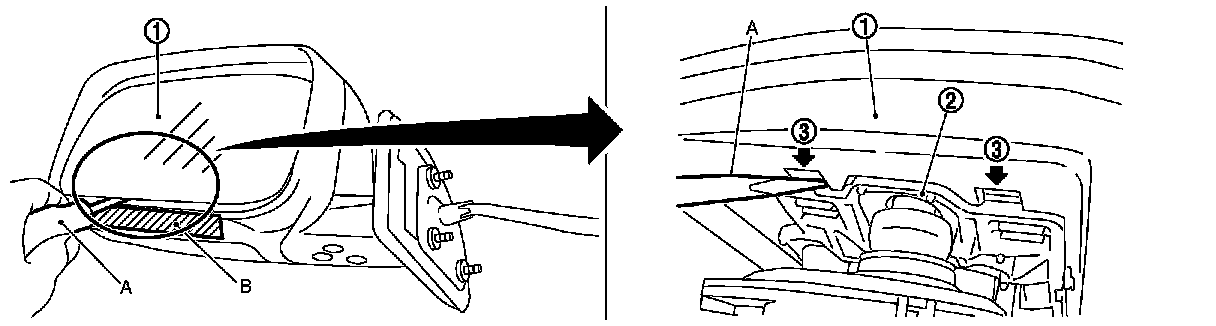

3. As shown in the figure, insert a flat-bladed screwdriver (A) into the recess between glass mirror (1) and actuator (2). Push up both pawls (3) simultaneously to remove glass mirror lower half side.

NOTE:
Insert screwdriver into recesses, and push up while rotating (twisting) to make work easier.





4. Remove two terminals of mirror heater attachment.
5. Lightly lift up lower side of glass mirror, and detach both pawls of upper side as if pulling it out. Disassemble glass mirror from actuator.

NOTE:
Be certain not to allow grease on sealing agent in center of mirror or back side of glass mirror.

ASSEMBLY
Assemble in the reverse order of disassemble.

CAUTION:
After installation, visually check that pawls are securely engaged.
