Automatic Drive Positioner





DRIVER SEAT CONTROL UNIT

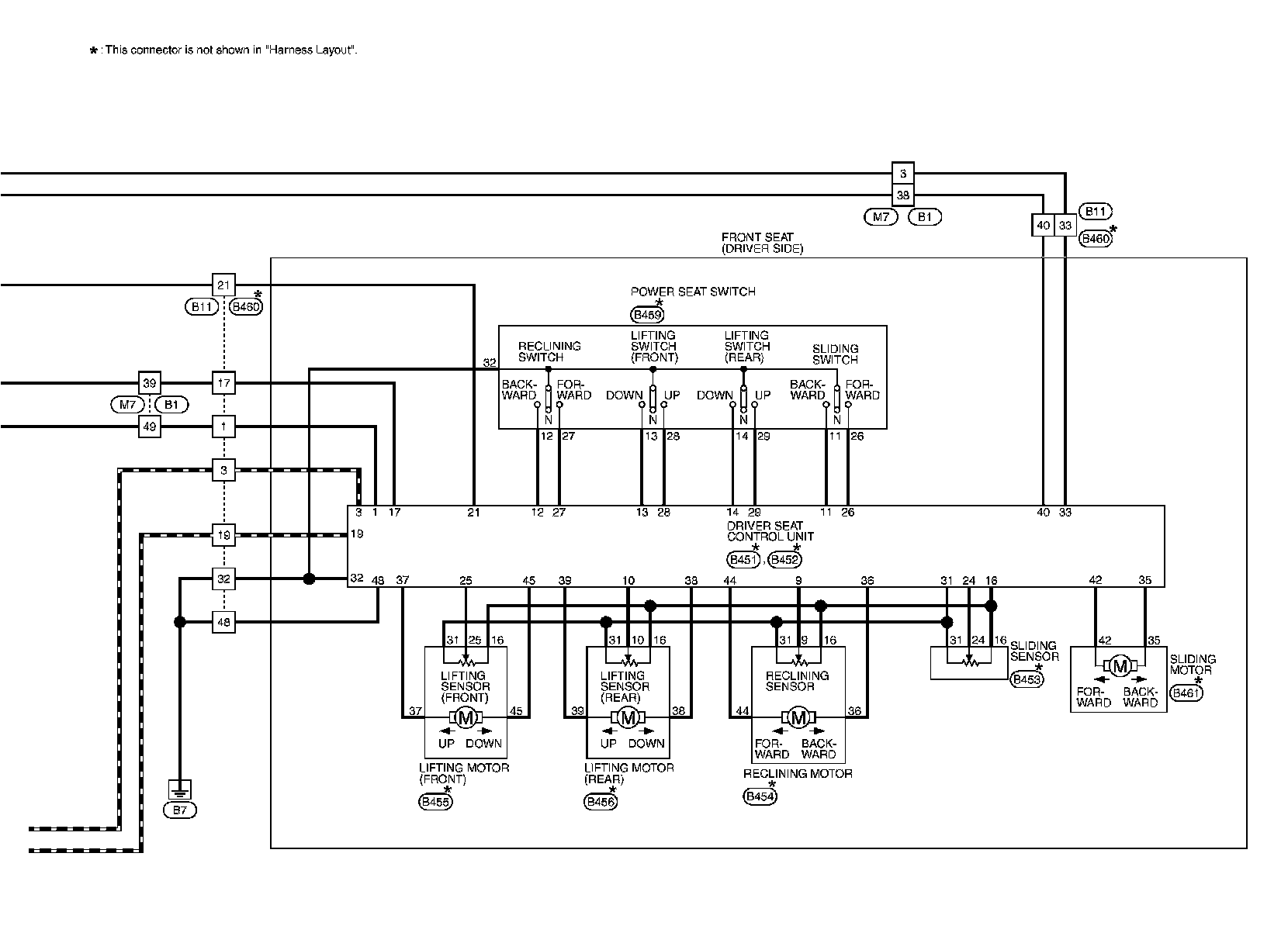

Wiring Diagram - AUTOMATIC DRIVE POSITIONER CONTROL SYSTEM -
